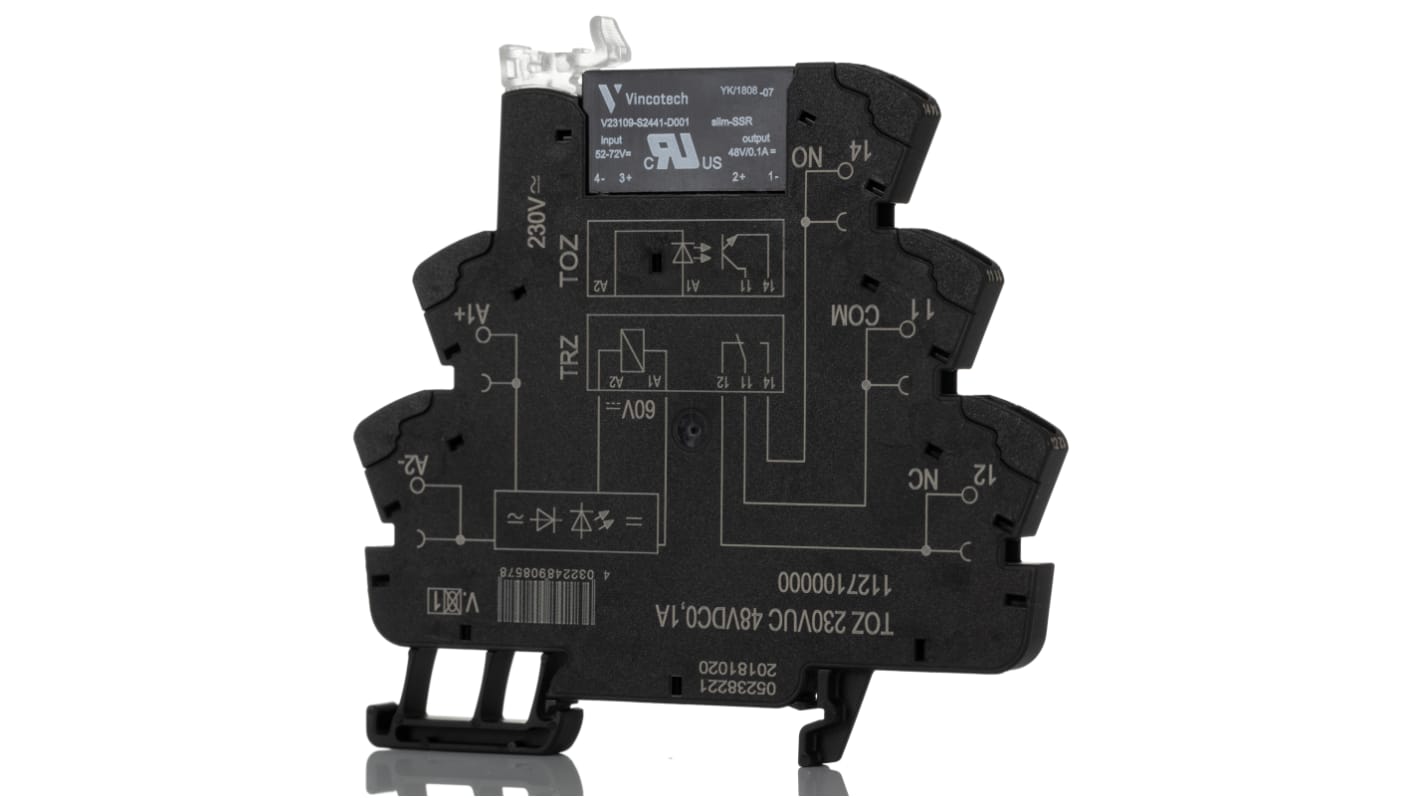

Weidmuller TOZ Series Solid State Interface Relay, 230 V Control, 100 mA Load, DIN Rail Mount

RS stock no.:: 892-8880
Mfr Part No.:: 1127100000
Manufacturer:: Weidmüller

Weidmuller TOZ Series Solid State Interface Relay, 230 V Control, 100 mA Load, DIN Rail Mount

View this category

Subtotal (1 unit)*

R 494,91

(exc. VAT)

R 569,15

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

Plus 19 unit(s) shipping from 15 December 2025
Plus 30 unit(s) shipping from 22 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 494.91

*price indicative

RS stock no.:: 892-8880
Mfr Part No.:: 1127100000
Manufacturer:: Weidmüller

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Maximum Control Voltage	230 V
	Maximum Load Current	100 mA
	Mounting Type	DIN Rail
	Contact Configuration	SPDT
	Load Voltage Range	3 → 48V
	Minimum Load Voltage	3 V
	Terminal Type	Screw
	Number of Poles	1
	Input Current	3.5 mA @ 230 V ac, 3 mA @ 230 V dc
	Depth	6.4mm
	Height	88mm
	Series	TOZ
	Length	90mm
	Width	6.4mm
	Off State Leakage Current	10000 nA
	Dimensions	90 x 6.4 x 88mm
	Maximum Operating Temperature	+60°C
	Minimum Operating Temperature	-20°C
	Standards Met	CE, CULus, EAC, RoHS Compliant
	Special Features	Illuminated Ejection Lever, Various Protective Circuits in the Input
	Operating Temperature Range	-20 → +60°C
	Manufacturer Part No.	1127100000

	Select all
	Brand Weidmüller
	Maximum Control Voltage 230 V
	Maximum Load Current 100 mA
	Mounting Type DIN Rail
	Contact Configuration SPDT
	Load Voltage Range 3 → 48V
	Minimum Load Voltage 3 V
	Terminal Type Screw
	Number of Poles 1
	Input Current 3.5 mA @ 230 V ac, 3 mA @ 230 V dc
	Depth 6.4mm
	Height 88mm
	Series TOZ
	Length 90mm
	Width 6.4mm
	Off State Leakage Current 10000 nA
	Dimensions 90 x 6.4 x 88mm
	Maximum Operating Temperature +60°C
	Minimum Operating Temperature -20°C
	Standards Met CE, CULus, EAC, RoHS Compliant
	Special Features Illuminated Ejection Lever, Various Protective Circuits in the Input
	Operating Temperature Range -20 → +60°C
	Manufacturer Part No. 1127100000

1127100000 Data Sheet

COO (Country of Origin):: CN

Weidmuller Solid-State Interface Relay, 670mW Power Rating, SPDT Contact Configuration - TOZ TERMSERIES - 1127100000

Need a versatile switching solution for your industrial electrical system? Wire up this Weidmuller solid-state interface relay. It lets you open and close a connected circuit without any moving parts, shifting wear and tear to the bottom of your worry list. This unit has an MTTF of 1197 years, so you can rest assured it will last for a long time.

Features & Benefits

• Compact size of 90.5 (H) x 6.4 (W) x 87.8mm (D) lets you mount it in tight work areas
• Low weight of 30.4g to place minimal strain on your equipment
• Suitable for use in harsh environments, thanks to a broad operating temperature range between -20°C and +60°C
• Green LED allows for easy status monitoring
• DIN rail mounting makes installation a cinch

Applications

• Digital data acquisition
• Medical equipment
• Motor controls
• Traffic systems

What wire sizes is this product compatible with?

This solid-state interface relay accepts conductors ranging in size between 26 and 14AWG, so it's a versatile option for use in different wiring setups.
