Sensata Crydom DRA4-CMX Series Solid State Interface Relay, 28 V Control, 8 A Load, DIN Rail Mount
- RS stock no.:
- 701-8679
- Mfr Part No.:
- DRA4-CMXE100D10
- Manufacturer:
- Sensata / Crydom

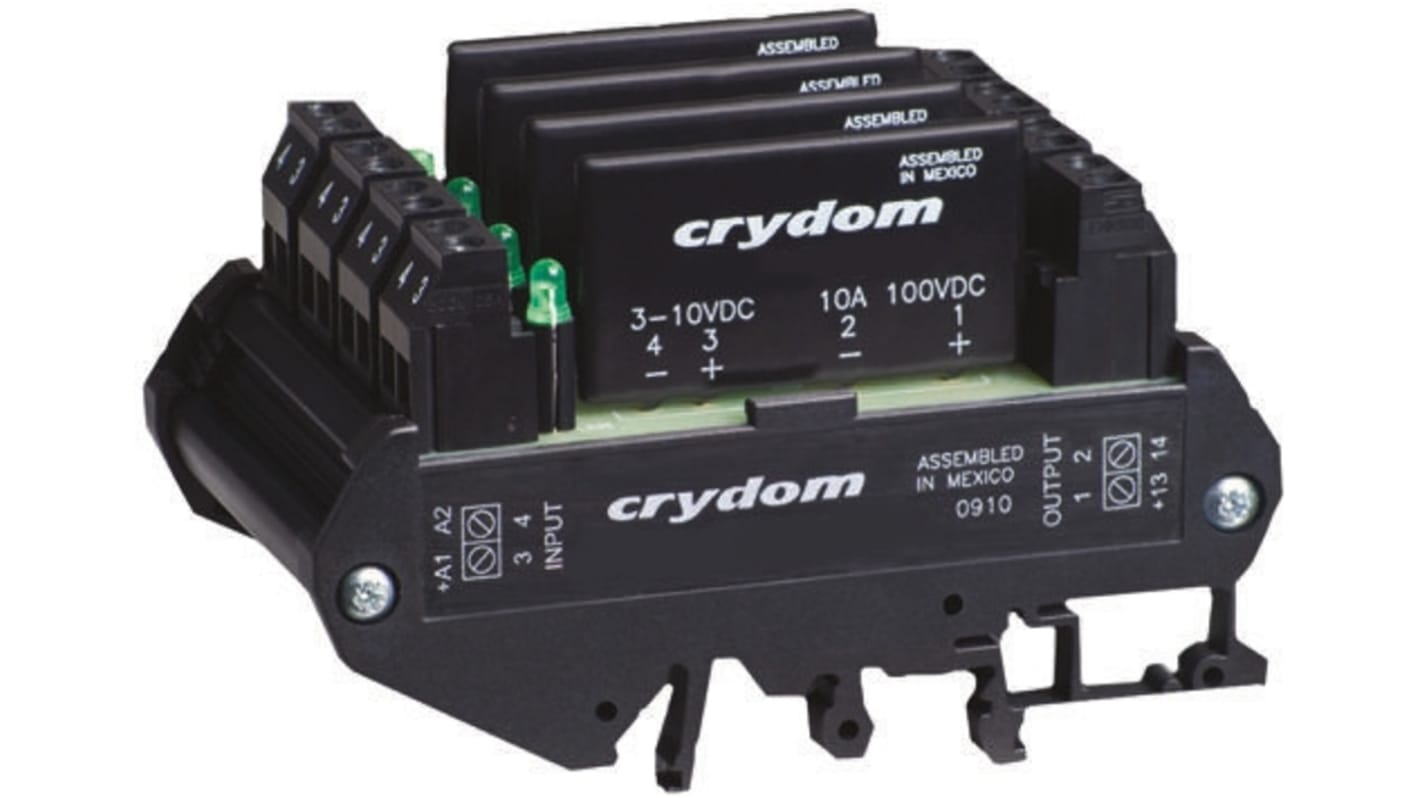

Image representative of range
Subtotal (1 unit)*
R 7 280,78
(exc. VAT)
R 8 372,90
(inc. VAT)
FREE delivery for orders over R 1,500.00
- Shipping from 13 May 2026
Units | Per unit |
|---|---|
| 1 - 4 | R 7,280.78 |
| 5 - 9 | R 7,098.76 |
| 10 + | R 6,885.80 |
*price indicative
- RS stock no.:
- 701-8679
- Mfr Part No.:
- DRA4-CMXE100D10
- Manufacturer:
- Sensata / Crydom
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Control Voltage | 28 V | |
| Maximum Load Current | 8 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 100 V | |
| Minimum Control Voltage | 20 V dc | |
| Control Voltage Range | 20 → 28 V dc | |
| Switching Type | DC | |
| Load Voltage Range | 1 → 100V dc | |
| Minimum Load Voltage | 1 V dc | |
| Terminal Type | Screw | |
| Length | 89.6mm | |
| Height | 60.1mm | |
| Series | DRA4-CMX | |
| Output Device | DC | |
| Depth | 53.7mm | |
| Minimum Load Current | 0 A | |
| Capacitance | 15pF | |
| Dimensions | 89.6 x 53.7 x 60.1mm | |
| Maximum Turn On Time | 1ms | |
| Off State Leakage Current | 100 μA | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
| Special Features | Fits Standard 35mm DIN-RAIL, LED Input Status Indicator | |
| Manufacturer Part No. | DRA4-CMXE100D10 | |
| Operating Temperature Range | -30 → +80°C | |
| Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Control Voltage 28 V | ||
Maximum Load Current 8 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 100 V | ||
Minimum Control Voltage 20 V dc | ||
Control Voltage Range 20 → 28 V dc | ||
Switching Type DC | ||
Load Voltage Range 1 → 100V dc | ||
Minimum Load Voltage 1 V dc | ||
Terminal Type Screw | ||
Length 89.6mm | ||
Height 60.1mm | ||
Series DRA4-CMX | ||
Output Device DC | ||
Depth 53.7mm | ||
Minimum Load Current 0 A | ||
Capacitance 15pF | ||
Dimensions 89.6 x 53.7 x 60.1mm | ||
Maximum Turn On Time 1ms | ||
Off State Leakage Current 100 μA | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
Special Features Fits Standard 35mm DIN-RAIL, LED Input Status Indicator | ||
Manufacturer Part No. DRA4-CMXE100D10 | ||
Operating Temperature Range -30 → +80°C | ||
- COO (Country of Origin):
- MX
DIN Rail Mount - DRA4-CMX Series
SPST-NO function
Cage style screw terminals for easy connection
Fits standard 35mm DIN rail
Includes LED Status indicator
