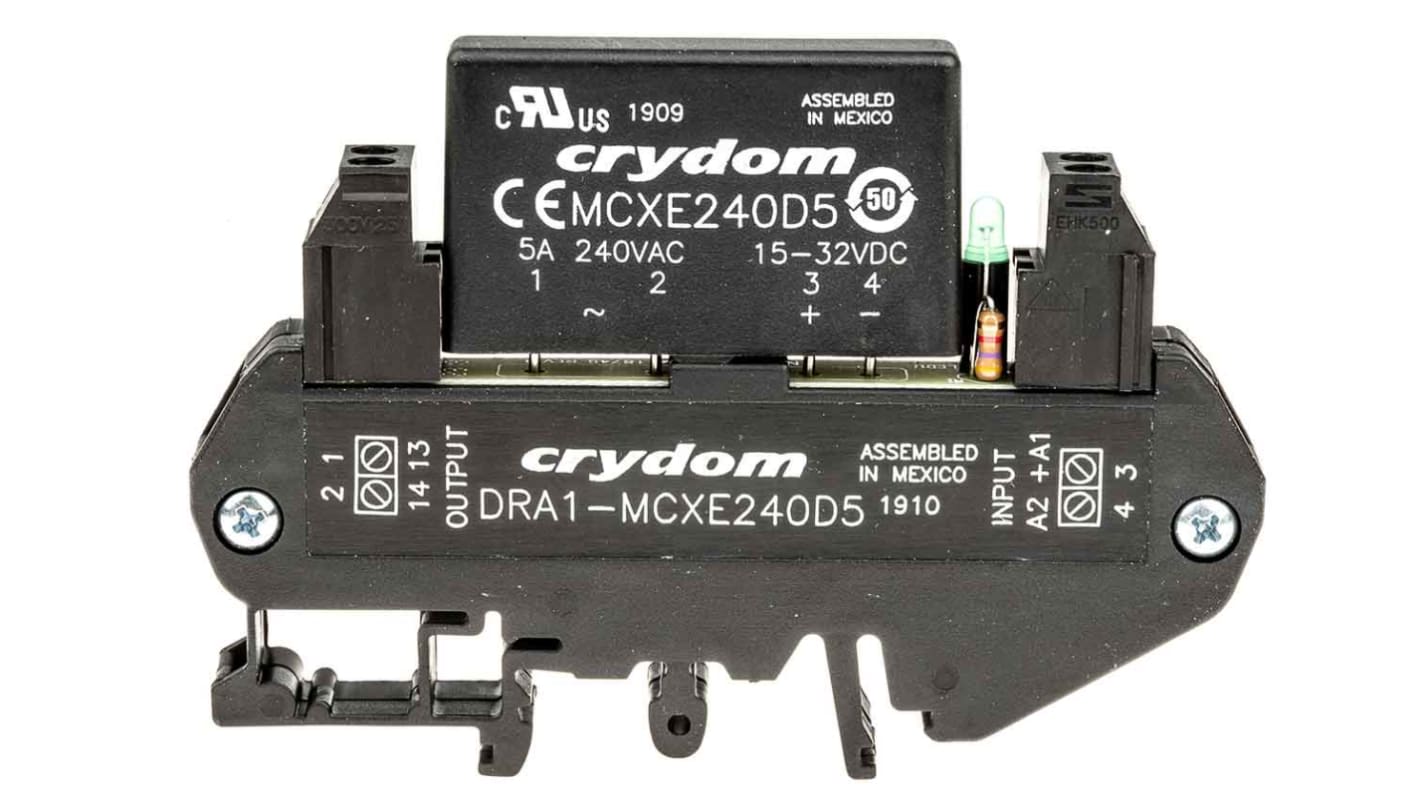

Sensata Crydom DRA1-MCX Series Solid State Interface Relay, 32 V dc Control, 5 A rms Load, DIN Rail Mount

RS stock no.:: 701-8597
Mfr Part No.:: DRA1-MCXE240D5
Manufacturer:: Sensata / Crydom

Sensata Crydom DRA1-MCX Series Solid State Interface Relay, 32 V dc Control, 5 A rms Load, DIN Rail Mount

View this category

Bulk discount available

Subtotal (1 unit)*

R 1 198,61

(exc. VAT)

R 1 378,40

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

49 unit(s) ready to ship from another location
Plus 20 unit(s) shipping from 06 January 2026
Plus 80 unit(s) shipping from 20 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	R 1,198.61
5 - 9	R 1,168.64
10 +	R 1,133.58

*price indicative

RS stock no.:: 701-8597
Mfr Part No.:: DRA1-MCXE240D5
Manufacturer:: Sensata / Crydom

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Control Voltage	32 V dc
	Maximum Load Current	5 A rms
	Mounting Type	DIN Rail
	Maximum Load Voltage	280 V ac
	Minimum Control Voltage	15 V dc
	Control Voltage Range	15 → 32 V dc
	Switching Type	Zero Cross
	Load Voltage Range	12 → 280V ac
	Minimum Load Voltage	12 V ac
	Terminal Type	Screw
	Minimum Load Current	0.06 A
	Output Device	DC
	Series	DRA1-MCX
	Depth	10mm
	Height	62.2mm
	Length	89.6mm
	Off State Leakage Current	0.1 mA
	Maximum Turn On Time	1/2 cycle
	Special Features	Fits Standard 35mm DIN-RAIL, LED Input Status Indicator
	Capacitance	10pF
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	+80°C
	Dimensions	89.6 x 10 x 62.2mm
	Manufacturer Part No.	DRA1-MCXE240D5
	Operating Temperature Range	-30 → +80°C

	Select all
	Brand Sensata / Crydom
	Maximum Control Voltage 32 V dc
	Maximum Load Current 5 A rms
	Mounting Type DIN Rail
	Maximum Load Voltage 280 V ac
	Minimum Control Voltage 15 V dc
	Control Voltage Range 15 → 32 V dc
	Switching Type Zero Cross
	Load Voltage Range 12 → 280V ac
	Minimum Load Voltage 12 V ac
	Terminal Type Screw
	Minimum Load Current 0.06 A
	Output Device DC
	Series DRA1-MCX
	Depth 10mm
	Height 62.2mm
	Length 89.6mm
	Off State Leakage Current 0.1 mA
	Maximum Turn On Time 1/2 cycle
	Special Features Fits Standard 35mm DIN-RAIL, LED Input Status Indicator
	Capacitance 10pF
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature +80°C
	Dimensions 89.6 x 10 x 62.2mm
	Manufacturer Part No. DRA1-MCXE240D5
	Operating Temperature Range -30 → +80°C

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Interface Relay, Screw Terminals, 12 to 280V AC Operating Voltage Range - DRA1 MCX Series - DRA1-MCXE240D5

Help your automated processes get over the line with this Sensata | Crydom solid-state interface relay. It manages your system's digital signals without any moving parts, so you can count on it to stand up to wear for long-lasting machine control. As it boots up in half an electrical cycle, the component speeds through start-up to let you get straight to work. Mounting this device is hassle-free as it simply clips onto standard DIN rails. Interface relays like this one can be found in construction and food production applications.

Features & Benefits

• Load current range of 0.06 to 5A for broad compatibility
• Built-in LED indicator shows input status for ease of monitoring
• Cage-style screw terminals secure wiring in place to prevent accidental disconnection
• Wide operating temperature range between -30°C and +80°C for use in tough industrial settings
• Light weight of 36.4g to place minimal strain on your equipment

How do solid-state interface relays work?

Solid-state relays like this one use semiconductors to process input signals, giving you quick and efficient switching.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
