Celduc XK Series Solid State Interface Relay, 240 V Control, 3 A Load, DIN Rail Mount
- RS stock no.:
- 334-0317
- Mfr. Part No.:
- XKD90306
- Manufacturer:
- Celduc

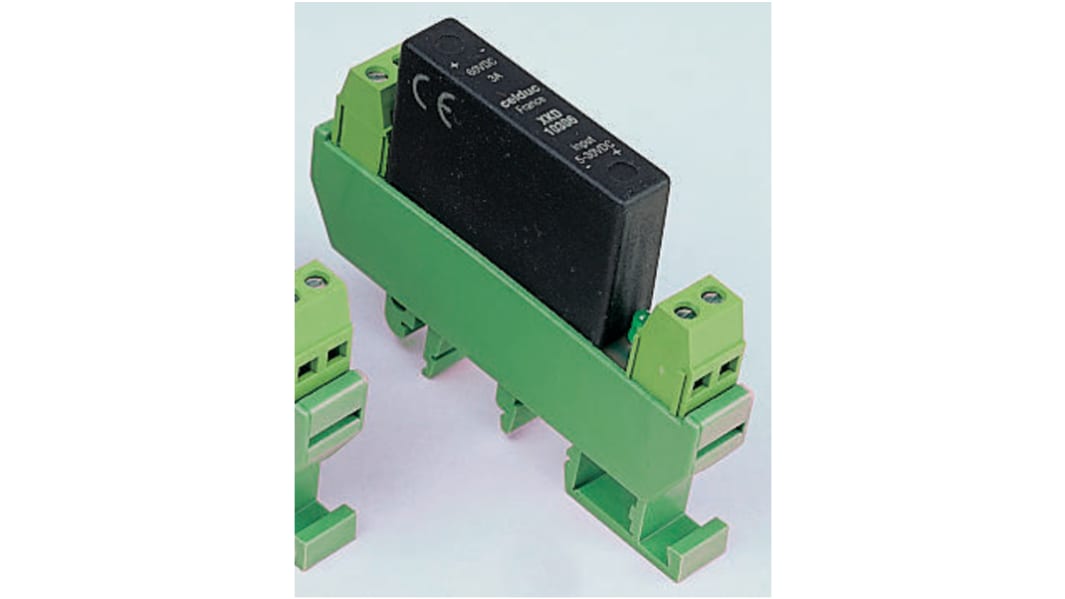

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 1 224,76
(exc. VAT)
R 1 408,47
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 13 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | R 1,224.76 |
| 10 - 19 | R 1,194.14 |
| 20 + | R 1,158.32 |
*price indicative
- RS stock no.:
- 334-0317
- Mfr. Part No.:
- XKD90306
- Manufacturer:
- Celduc
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Control Voltage | 240 V | |
| Maximum Load Current | 3 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 60 V | |
| Control Voltage Range | 90 → 240 V | |
| Switching Type | DC | |
| Load Voltage Range | 2 → 60V | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Output Device | Bipolar Transistor | |
| Depth | 17.2mm | |
| Minimum Load Current | 5 mA | |
| Series | XK | |
| Height | 53mm | |
| Length | 76.4mm | |
| Special Features | Control Visualization By LED. | |
| Maximum Turn On Time | 20ms | |
| Standards Met | CE, EAC | |
| Range | XK | |
| Maximum Operating Temperature | +90°C | |
| Dimensions | 76.4 x 17.2 x 53mm | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +90°C | |
| Manufacturer Part No. | XKD90306 | |
| Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Control Voltage 240 V | ||
Maximum Load Current 3 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 60 V | ||
Control Voltage Range 90 → 240 V | ||
Switching Type DC | ||
Load Voltage Range 2 → 60V | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Output Device Bipolar Transistor | ||
Depth 17.2mm | ||
Minimum Load Current 5 mA | ||
Series XK | ||
Height 53mm | ||
Length 76.4mm | ||
Special Features Control Visualization By LED. | ||
Maximum Turn On Time 20ms | ||
Standards Met CE, EAC | ||
Range XK | ||
Maximum Operating Temperature +90°C | ||
Dimensions 76.4 x 17.2 x 53mm | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +90°C | ||
Manufacturer Part No. XKD90306 | ||
- COO (Country of Origin):
- FR
Non-pull-out vertical relays for DIN rail
Non-pull-out vertical relays for DIN Rail
Relays for controlling all types of loads.
These relays feature a high level of immunity to outside interference, a low off-state leakage current and a surge suppressor.
Relays for controlling all types of loads.
These relays feature a high level of immunity to outside interference, a low off-state leakage current and a surge suppressor.
