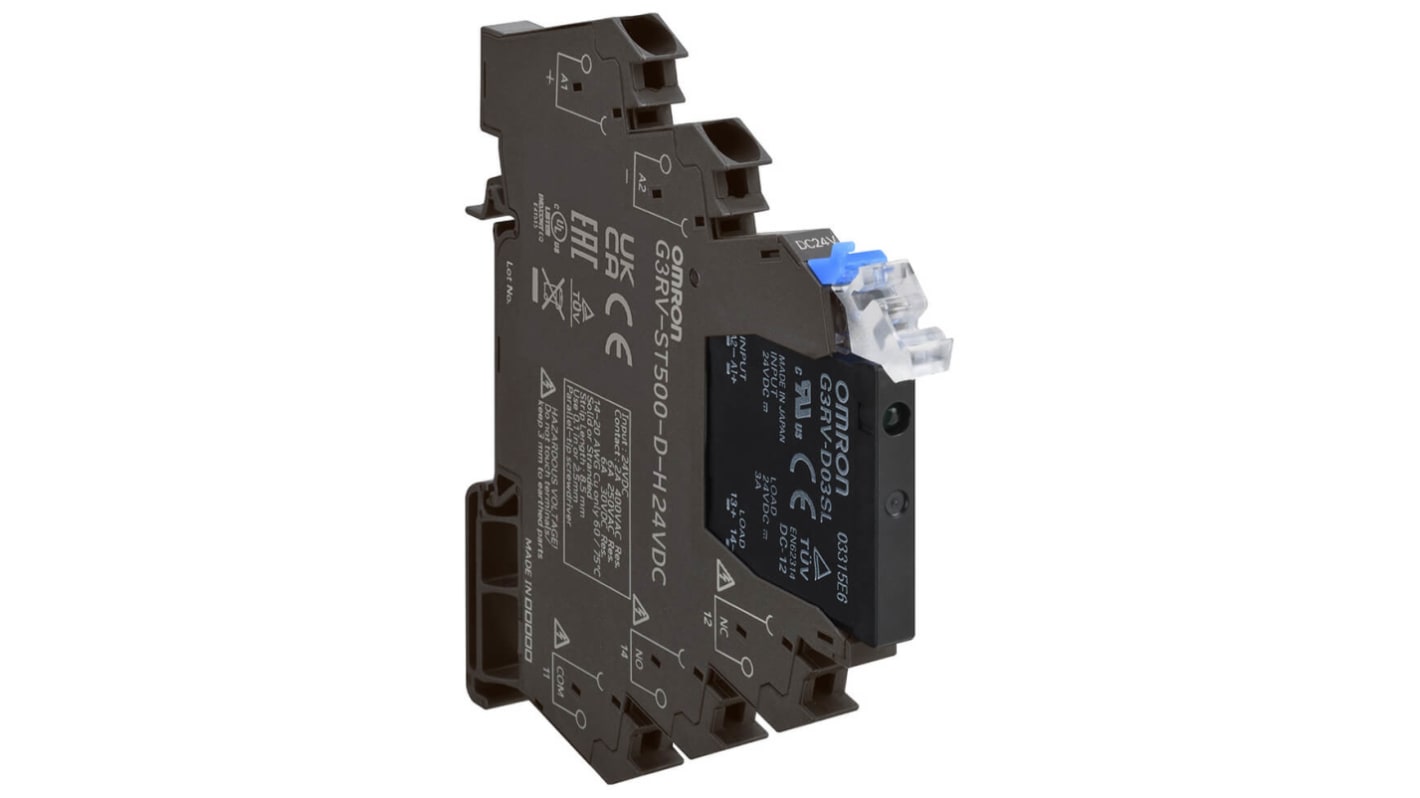

Omron G3RV-ST Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount

View this category

Subtotal (1 unit)*

R 935,23

(exc. VAT)

R 1 075,51

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 935.23

*price indicative

RS stock no.:
271-1902
Mfr. Part No.:
G3RV-ST700-D-H 24VAC/DC
Manufacturer:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Maximum Control Voltage

24 V ac/dc

Maximum Load Current

3 A

Mounting Type

DIN Rail

Maximum Load Voltage

26.4 Vdc

Minimum Control Voltage

21.6 V

Control Voltage Range

19.2 - 26.4 V

Switching Type

High-Speed

Contact Configuration

SPDT

Load Voltage Range

3 - 26.4V

Minimum Load Voltage

3 Vdc

Terminal Type

Screw

Number of Poles

1

Input Current

8.4mA

Width

6.2mm

Height

90mm

Output Device

Photovoltage Coupler

Series

G3RV-ST

Depth

87.1mm

Minimum Load Current

0.1 mA

Length

88mm

Rise Time

3ms

Dimensions

88 x 90 x 6.2mm

Range

G3RV

Special Features

60% Space Saving, Easy Maintenance

Minimum Operating Temperature

-30°C

Maximum Turn On Time

3 ms

Maximum Operating Temperature

+55°C

Isolation Voltage

2500V

Standards Met

CSA C22.2 No.14, EN 62314, IEC 60529, UL

Package Style

Carton Box

Off State Leakage Current

5 mA

Operating Temperature Range

-30 → 55°C

Manufacturer Part No.

G3RV-ST700-D-H AC/DC24

COO (Country of Origin):
JP
The Omron Slim line Relay is a solid state relay which offers significant space savings, vibration resistance and industry leading switching performance with a reliable design. This slim line relay has transparent case that allows for easy on site visual checks of contact state abnormalities.

Significant space savings
High speed switching type
User friendly with a low insertion
High density mounting and ultra slim body
