Omron G3RV-SR Series Solid State Interface Relay, 110 V ac Control, 3 A Load, DIN Rail Mount

RS stock no.:: 111-3023
Mfr. Part No.:: G3RV-SR700-D AC110
Manufacturer:: Omron

Omron G3RV-SR Series Solid State Interface Relay, 110 V ac Control, 3 A Load, DIN Rail Mount

Subtotal (1 unit)**

R 542 78

(exc. VAT)

R 624 20

(inc. VAT)

4 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Real time stock check

Not Available for premium delivery

Units	Per unit
1 +	R 542,78

**price indicative

RS stock no.:: 111-3023
Mfr. Part No.:: G3RV-SR700-D AC110
Manufacturer:: Omron

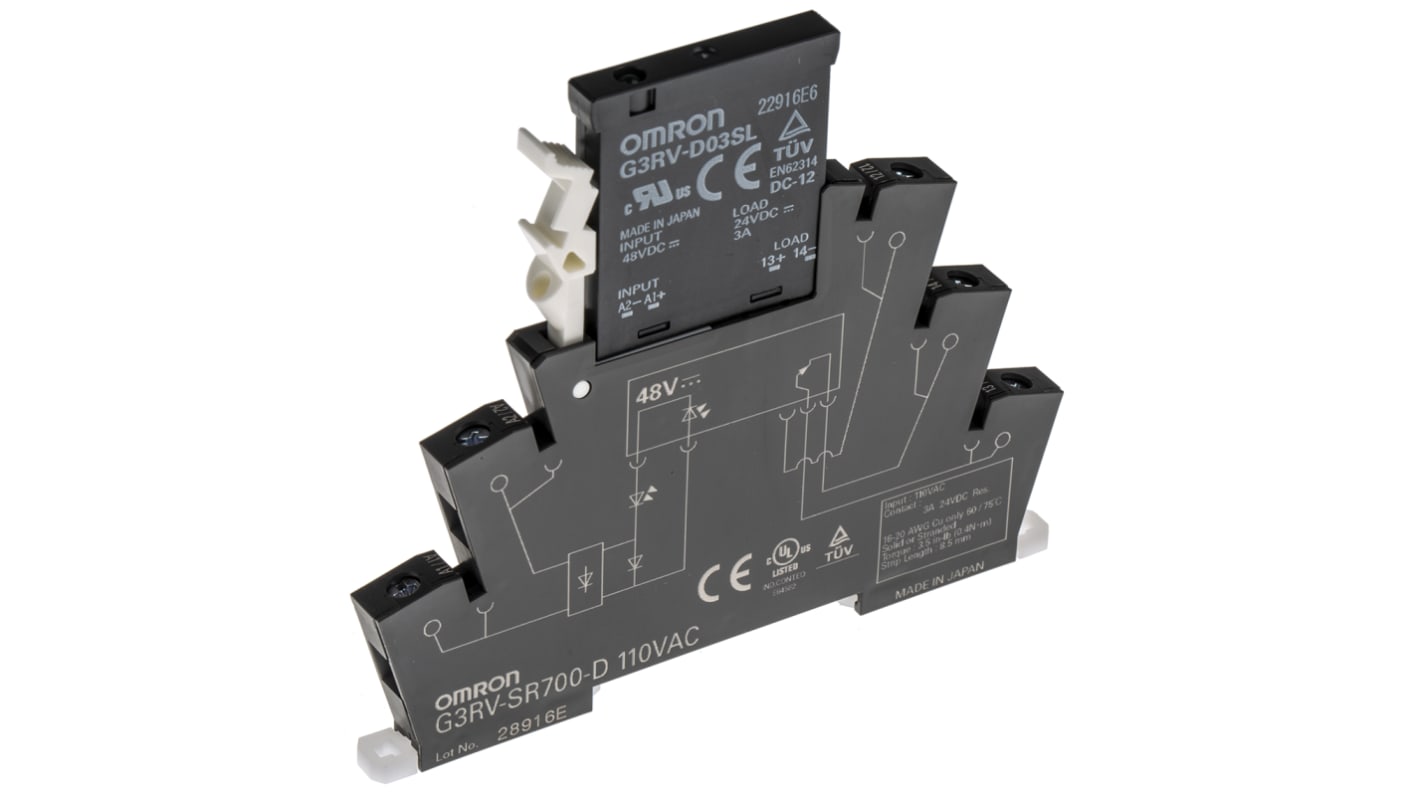

G3RV-SR Slim I/O Solid State Relay

Omron G3RV-SR slim I/O solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G3RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

High frequency
High-speed opening and closing
Switching capacity up to 3 A (DC), and 2 A (AC).
LED operating status

G3RV-SR700-D AC110 – I/O Low Profile SSR - Solid State Relay 6.2 mm Wide.

This I/O SSR-Solid state relay has a lower profile up to 25% of other standard SSR allowing further downsizing of the control panel. An optimal slim design relay that includes high frequency and high speed opening and closing of the SSR –solid state relay.

Features and Benefits G3RV-SR700-D AC110 I/O Slim SSR – Solid State Relay.

• Screw terminal.
• 60% Reduced wiring time.
• DC Applicable output load.
• Rated input voltage 110 V ac.
• Slim compact design.
• DC output – MOS FET.
• High frequency.
• High speed opening and closing.
• Easy wiring.

SSR – Solid State Relay Input Rating at ambient 25°C.

• Rated current AC – 6.2 mA 50 Hz, 6.2 mA 60 Hz.
• Must operate voltage 99 V max.
• Must release voltage 1 V min.
• Input voltage ±10% of rated voltage.

SSR – Solid State Relay Output.

• Rated load voltage 5 to 24 V dc.
• Load voltage range 3 to 26.4 V dc.
• 100 μA to 3 A at an ambient 25°C.
• Inrush current resistance 30 A, 60 hZ, 1 cycle.
• Applicable load capacity 72 W, output voltage 24 V dc.

Additional Features of G3RV-SR700-D AC110 SSR – Solid State Relay.

• 6 ms max.
• Release time 60 ms max.
• Output ON resistance 0.3 Ω max at 24 v dc.
• 10 μA max at 24 V dc.
• Vibration resistance – malfunction 10 to 55 to 10 Hz double amplitude.
• Shock resistance 300 m/s².
• Ambient operating temperature -30°C to +55°C.
• Relay weight 38 g.
• IP 20
• Load category DC-12.
• Rated insulation voltage 240 V.

Suitable SSR – Solid State DIN Rails.

• Part number PFP-100N – 1 m DIN relay, Stock number 8278403.
• Part number PFP-50N – 0.5 m DIN relay, Stock number 8278400.

Suitable End Plate for the SSR –Solid State Relay.

• Part number PFP-M, stock number 8278419.

Suitable Spacer Plate for the SSR- Solid State Relay.

• Part number PFP-S, Stock number 8278412.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Standards

UL 508, E64562. CE, TUV.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Attribute	Value
Maximum Control Voltage	110 V ac
Maximum Load Current	3 A
Mounting Type	DIN Rail
Maximum Load Voltage	26.4 V dc
Control Voltage Range	Maximum of 110 V ac
Switching Type	AC/DC
Contact Configuration	SPST
Load Voltage Range	3 → 26.4V dc
Minimum Load Voltage	3 V dc
Terminal Type	Screw
Number of Poles	1
Length	6.2mm
Height	90mm
Minimum Load Current	100 μA
Output Device	MOSFET
Depth	78mm
Series	G3RV-SR
Special Features	High-Speed Opening and Closing SSR, Lower Profile than Conventional Products
Off State Leakage Current	10 μA
Maximum Turn On Time	6 ms
Standards Met	CE, CULus, TUV Certification
Dimensions	6.2 x 78 x 90mm
Operating Temperature Range	-30 → +55°C
Manufacturer Part No.	G3RV-SR700-D AC110
