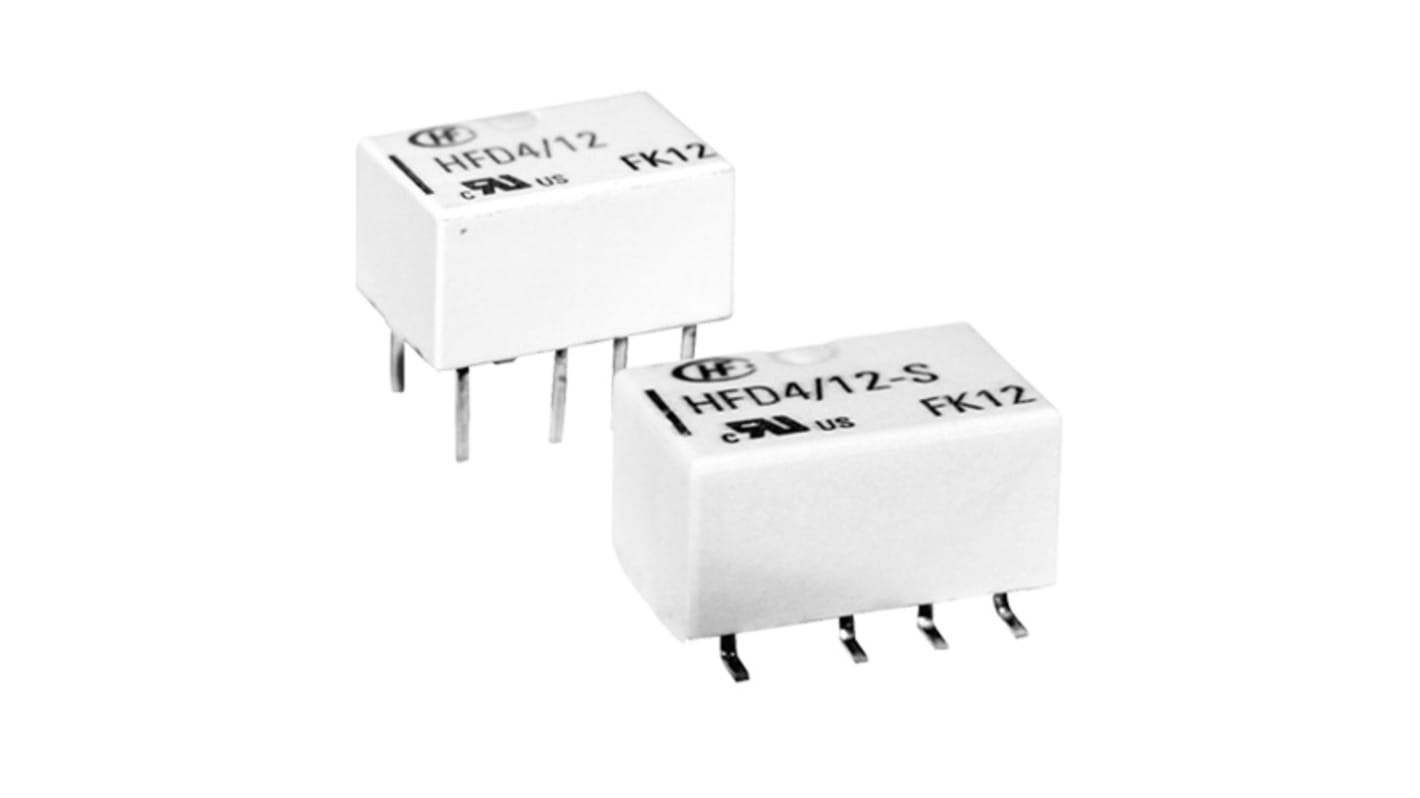

Hongfa Europe GMBH Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
- RS stock no.:
- 176-2732
- Mfr. Part No.:
- HFD4/12-S
- Manufacturer:
- Hongfa Europe GMBH
Subtotal (1 tube of 50 units)*
R 2 582,40
(exc. VAT)
R 2 969,75
(inc. VAT)
FREE delivery for orders over R 1,500.00
- 850 unit(s) ready to ship from another location
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 450 | R 51.648 | R 2,582.40 |
| 500 - 950 | R 50.357 | R 2,517.85 |
| 1000 - 2450 | R 48.846 | R 2,442.30 |
| 2500 + | R 46.892 | R 2,344.60 |
*price indicative
- RS stock no.:
- 176-2732
- Mfr. Part No.:
- HFD4/12-S
- Manufacturer:
- Hongfa Europe GMBH
Select all | Attribute | Value |
|---|---|---|
| Brand | Hongfa Europe GMBH | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Surface Mount | |
| Maximum Switching Current AC | 2 A | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V | |
| Maximum Switching Power DC | 60 W | |
| Series | HFD4 | |
| Length | 10mm | |
| Latching | No | |
| Depth | 6.5mm | |
| Height | 5.65mm | |
| Dimensions | 10 x 6.5 x 5.65mm | |
| Terminal Type | Through Hole | |
| Switching Current | 2A | |
| Number of Poles | 2 | |
| Coil Resistance | 1028Ω | |
| Operating Temperature Range | -40 → +85°C | |
| Isolation Coil To Contact | 2.5kV ac | |
| Features | Offers Excellent Board Space Savings, Low Power Consumption, Single Or Double Coil Winding Type Available | |
| Relay Switching Classification | Subminiature Signal Relay | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Gold Plated | |
| Coil Power | 140mW | |
| Electrical Life | 100000 Operations | |
| Maximum Switching Power AC | 62.5VA | |
| Maximum Operating Temperature | +85°C | |
| Life | 1 x 10^8 cycles | |
| Select all | ||
|---|---|---|
Brand Hongfa Europe GMBH | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type Surface Mount | ||
Maximum Switching Current AC 2 A | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V | ||
Maximum Switching Power DC 60 W | ||
Series HFD4 | ||
Length 10mm | ||
Latching No | ||
Depth 6.5mm | ||
Height 5.65mm | ||
Dimensions 10 x 6.5 x 5.65mm | ||
Terminal Type Through Hole | ||
Switching Current 2A | ||
Number of Poles 2 | ||
Coil Resistance 1028Ω | ||
Operating Temperature Range -40 → +85°C | ||
Isolation Coil To Contact 2.5kV ac | ||
Features Offers Excellent Board Space Savings, Low Power Consumption, Single Or Double Coil Winding Type Available | ||
Relay Switching Classification Subminiature Signal Relay | ||
Minimum Operating Temperature -40°C | ||
Contact Material Gold Plated | ||
Coil Power 140mW | ||
Electrical Life 100000 Operations | ||
Maximum Switching Power AC 62.5VA | ||
Maximum Operating Temperature +85°C | ||
Life 1 x 10^8 cycles | ||
- COO (Country of Origin):
- CN
Surge withstand voltage up to 2500V
SMT and DIP types available
High contact capacity 2A 30VDC
Low power consumption
Single side stable and latching type available
Environmental friendly product
Outline Dimensions: (10.0 x 6.5 x 5.4) mm
