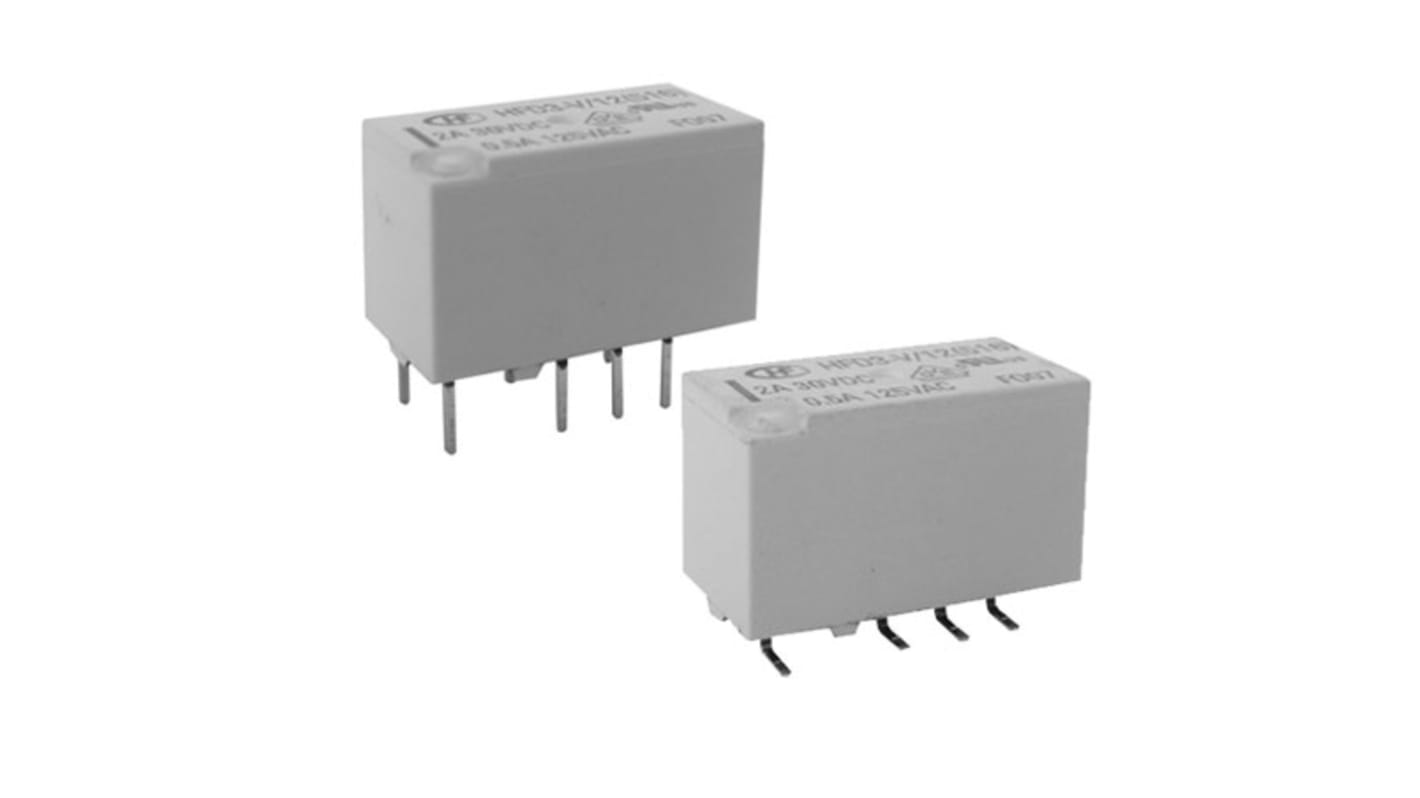

Hongfa Europe GMBH Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, SPST

RS stock no.:: 176-2725
Mfr. Part No.:: HFD3-V/12-S
Manufacturer:: Hongfa Europe GMBH

Hongfa Europe GMBH Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, SPST

Price Each (In a Tube of 40)**

R 50,278

(exc. VAT)

R 57,82

(inc. VAT)

31 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Not Available for premium delivery

Units	Per unit	Per Tube**
40 +	R 50,278	R 2 011,12

**price indicative

RS stock no.:: 176-2725
Mfr. Part No.:: HFD3-V/12-S
Manufacturer:: Hongfa Europe GMBH

Datasheet

Attribute	Value
Coil Voltage	12V dc
Contact Configuration	SPST
Mounting Type	Surface Mount
Maximum Switching Current AC	1 A
Maximum Switching Current DC	2 A
Maximum Switching Voltage AC	277V
Maximum Switching Voltage DC	220V
Series	HFD3-V
Maximum Switching Power DC	60 W
Length	15mm
Latching	No
Depth	7.5mm
Height	4.65mm
Dimensions	15 x 7.5 x 9.2mm
Terminal Type	Surface Mount
Switching Current	2A
Number of Poles	1
Relay Switching Classification	Subminiature Signal Relay
Contact Material	Gold Plated
Life	1 x 10^7 cycles
Features	SMT And DIP Types Available, Bifurcated Contacts, Single Side Stable And Latching Type Available
Isolation Coil To Contact	3.5kV rms
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +85°C
Coil Resistance	720Ω
Electrical Life	100000 Operations
Maximum Operating Temperature	+85°C
Maximum Switching Power AC	62.5VA
Coil Power	140mW

Hongfa Europe GMBH Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, SPST
