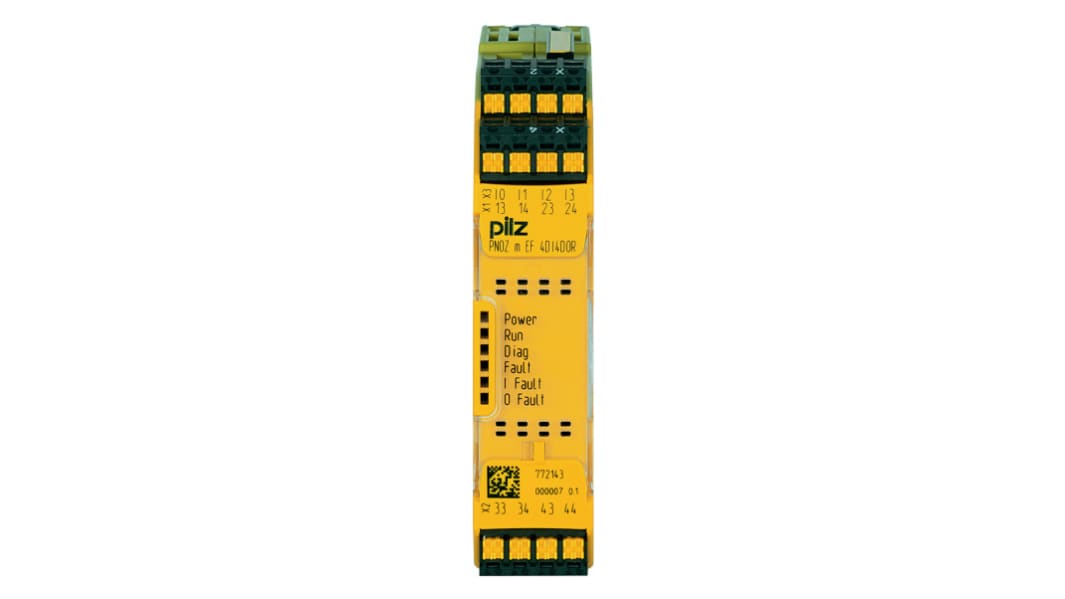

Pilz PNOZ m EF Series Input/Output Module, 4 Inputs, 4 Outputs, 24 V dc
- RS stock no.:
- 918-6614
- Mfr. Part No.:
- KIT772143
- Manufacturer:
- Pilz
Discontinued
- RS stock no.:
- 918-6614
- Mfr. Part No.:
- KIT772143
- Manufacturer:
- Pilz
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Range | PNOZmulti 2 | |
| Series | PNOZ m EF | |
| Type | Input/Output Module | |
| For Use With | PNOZmulti 2 | |
| Supply Voltage | 24 V dc | |
| Number of Inputs | 4 | |
| Number of Outputs | 4 | |
| Mounting Style | DIN Rail | |
| Dimensions | 101.4 x 22.5 x 120 mm | |
| Terminal Type | Screw | |
| Select all | ||
|---|---|---|
Brand Pilz | ||
Range PNOZmulti 2 | ||
Series PNOZ m EF | ||
Type Input/Output Module | ||
For Use With PNOZmulti 2 | ||
Supply Voltage 24 V dc | ||
Number of Inputs 4 | ||
Number of Outputs 4 | ||
Mounting Style DIN Rail | ||
Dimensions 101.4 x 22.5 x 120 mm | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- DE
Pilz Input/output Module
The Pilz PNOZmulti 2 series input/output relay module has 4 safe inputs and 4 safe relay outputs. This expansion module connects to a base unit from the 2 configurable control system. It has a 24VDC supply voltage and a power rating of 2W. It is available in a screw terminal type.
Features and Benefits
DIN rail mounting
LED for error messages, diagnostics, supply voltage, output circuits, and input circuits
Test pulse outputs used to monitor shorts across the inputs
Monitoring of shorts between the safety outputs
Operating temperature ranges between -10°C and 55°C
LED for error messages, diagnostics, supply voltage, output circuits, and input circuits
Test pulse outputs used to monitor shorts across the inputs
Monitoring of shorts between the safety outputs
Operating temperature ranges between -10°C and 55°C
Certifications
EN ISO 13849-1PLe
EN ISO13849-1Cat4
ENIEC62061
SILCL3
CSA certified
UL listed
TUV certified
CCC certified
EN ISO13849-1Cat4
ENIEC62061
SILCL3
CSA certified
UL listed
TUV certified
CCC certified
