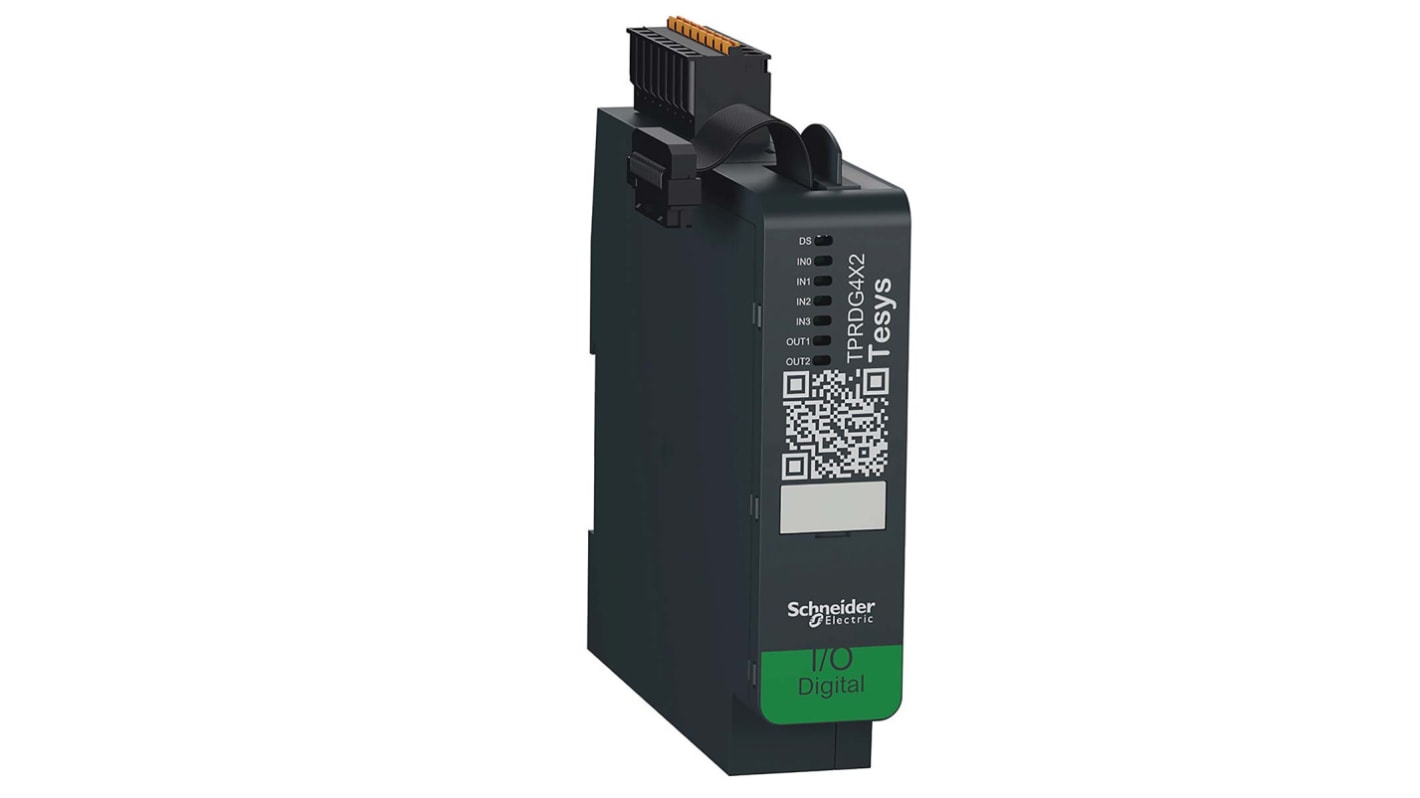

Schneider Electric TPRDG Series Input/Output Module, 4 Inputs, 2 Outputs, 24V dc
- RS stock no.:
- 204-8280
- Mfr. Part No.:
- TPRDG4X2
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
R 1 590,50
(exc. VAT)
R 1 829,08
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 1,590.50 |
*price indicative
- RS stock no.:
- 204-8280
- Mfr. Part No.:
- TPRDG4X2
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Input/Output Module | |
| Series | TPRDG | |
| Mount Type | DIN Rail | |
| Sub Type | Input/Output Module | |
| For Use With | TPRBC bus coupler, TPRPM power Module | |
| Supply Voltage | 24V dc | |
| Number of Inputs | 4 | |
| Number of Outputs | 2 | |
| Power Rating | 0.5W | |
| Terminal Type | Spring Terminal | |
| Hazardous Area Certification | No | |
| Standards/Approvals | EAC, UL, CSA | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Input/Output Module | ||
Series TPRDG | ||
Mount Type DIN Rail | ||
Sub Type Input/Output Module | ||
For Use With TPRBC bus coupler, TPRPM power Module | ||
Supply Voltage 24V dc | ||
Number of Inputs 4 | ||
Number of Outputs 2 | ||
Power Rating 0.5W | ||
Terminal Type Spring Terminal | ||
Hazardous Area Certification No | ||
Standards/Approvals EAC, UL, CSA | ||
Schneider Electric TPRDG Series Input/Output Module, 4 Inputs, 2 Outputs - TPRDG4X2
This input/output module is a critical component in the TeSys Island system, designed for effective digital control. With dimensions of 25 x 118 x 114mm, it provides four digital inputs and two digital outputs, operating at a supply voltage of 24 V DC for seamless integration into various industrial applications.
Features & Benefits
• Enables advanced control functions in a TeSys Island system
• Supports control of third-party power devices via TPRPM module
• Provides 4 isolated digital inputs for flexible adaptability
• Features 2 isolated outputs with common point functionality
• Quick response time of 5 ms for efficient data processing
• LED indicators for real-time status monitoring
Applications
• Utilised in industrial automation for effective system control
• Integrates with the TPRBC bus coupler for expanded functionality
• Compatible with the TPRPM power module to enhance performance
• Suitable for machine control and process automation tasks
Isolated inputs and outputs enhance safety and reduce the risk of interference, ensuring reliable operation in various automation systems. This design feature also adheres to IEC standards for better reliability.
The module can control four digital inputs and two outputs with a common point, allowing for simplified wiring and enhanced control of devices in the system. This facilitates quick reactions to input signals and precise output actions.
It operates effectively in ambient temperatures ranging from -10°C to 60°C, making it suitable for diverse industrial environments. Its IP20 rating also offers protection against dust and accidental contact.
