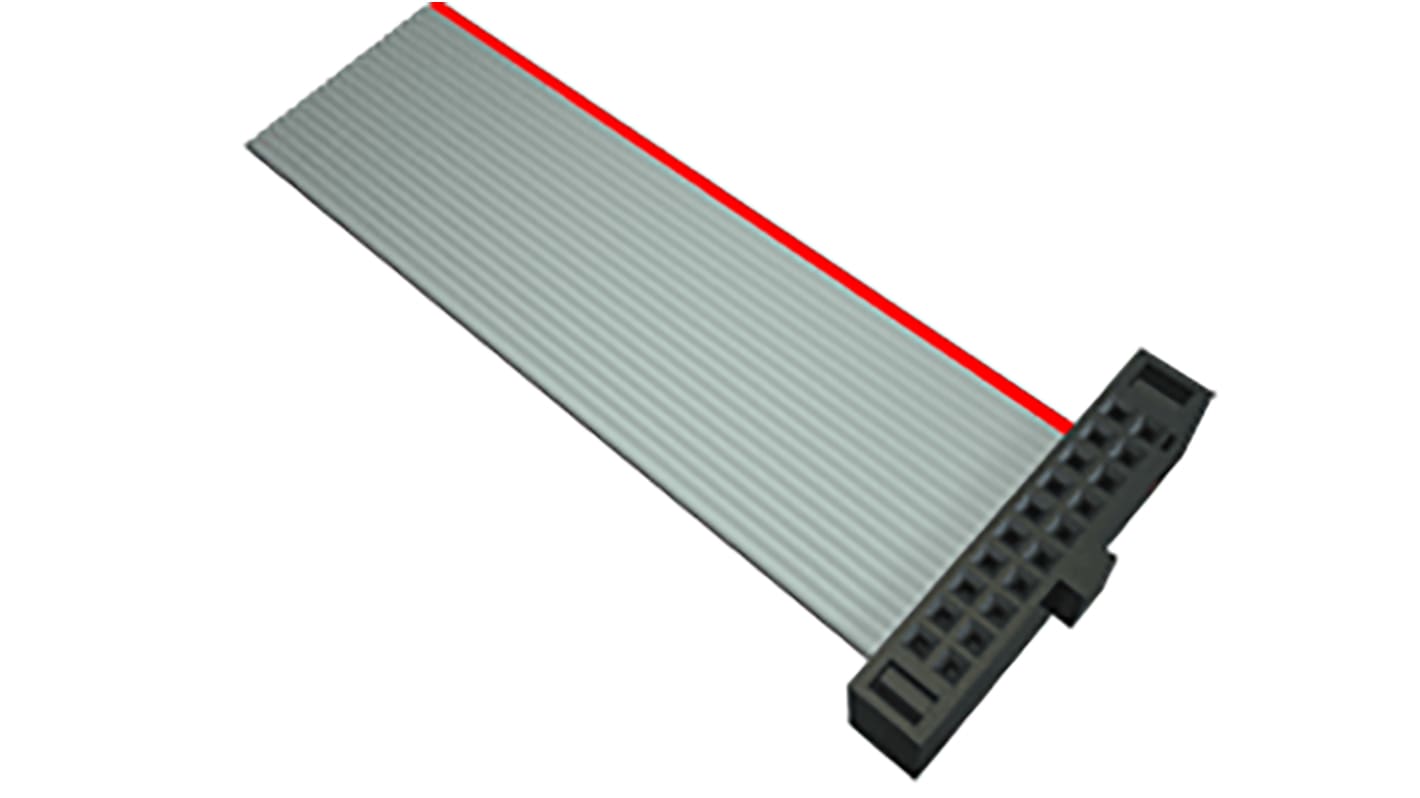

Samtec FFSD Series Flat Ribbon Cable, 34-Way, 1.27mm Pitch, 304.8mm Length, Tiger Eye IDC to Tiger Eye IDC

RS stock no.:: 180-0027
Mfr. Part No.:: FFSD-17-D-12.00-01-N
Manufacturer:: Samtec

Samtec FFSD Series Flat Ribbon Cable, 34-Way, 1.27mm Pitch, 304.8mm Length, Tiger Eye IDC to Tiger Eye IDC

Bulk discount available

Subtotal (1 unit)*

R 402,95

(exc. VAT)

R 463,39

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

1 unit(s) ready to ship from another location
Plus 32 unit(s) shipping from 10 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	R 402.95
10 - 49	R 392.88
50 - 99	R 381.09
100 - 249	R 365.85
250 +	R 351.22

*price indicative

RS stock no.:: 180-0027
Mfr. Part No.:: FFSD-17-D-12.00-01-N
Manufacturer:: Samtec

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Ribbon Cable Type	Flat
	Connector 1	Tiger Eye IDC
	Connector 2	Tiger Eye IDC
	Pitch	1.27mm
	Terminated/Unterminated	Terminated
	Connector 1 Gender	Female
	Number of Ways	34
	Connector 2 Gender	Female
	American Wire Gauge	30 AWG
	Series	FFSD
	Length	304.8mm
	Sheath Colour	Grey
	Maximum Operating Temperature	+105°C
	Minimum Operating Temperature	-40°C
	Current Rating	2.3 A
	Operating Temperature Range	-40 → +105 °C
	Standards Met	RoHS Compliant

	Select all
	Brand Samtec
	Ribbon Cable Type Flat
	Connector 1 Tiger Eye IDC
	Connector 2 Tiger Eye IDC
	Pitch 1.27mm
	Terminated/Unterminated Terminated
	Connector 1 Gender Female
	Number of Ways 34
	Connector 2 Gender Female
	American Wire Gauge 30 AWG
	Series FFSD
	Length 304.8mm
	Sheath Colour Grey
	Maximum Operating Temperature +105°C
	Minimum Operating Temperature -40°C
	Current Rating 2.3 A
	Operating Temperature Range -40 → +105 °C
	Standards Met RoHS Compliant

Samtec Ribbon Cable, +105°C Maximum Operating Temperature, 2.3A Contact Current Rating - FFSD Series - FFSD-17-D-12.00-01-N

Looking to make a strong connection? Build reliable links between your board-mounted systems with this 304.8mm-long ribbon cable from Samtec. Its copper alloy pins move power through your setup without a hitch, so you can count on them to pass on your signal. Thanks to plug-in IDC connectors, the component slots directly into PCB headers (197-6591) for hassle-free installation. A standardised 1.27mm pitch makes short work of hooking it up to existing hardware. The cable's contacts come with smooth mating zones that minimise wear during connections for a long service life.

Features & Benefits

• Polarising connector notches remove the risk of damaging misalignment

• Double-ended, 34-way design for efficient connectivity

• Flat shape lets it slip through low-profile areas

• Insulating PBT connectors ensure safe handling around dangerous loads

• Carries current up to 2.3A per contact to tackle everyday power connections

Applications

• Control devices

• Fluid management systems

• Manufacturing plants

Does this ribbon cable come pre-assembled?

Yes, it comes with pre-fitted connectors, so it's ready to slide into place right away.

How do I identify the power connections on this cable?

This unit's power connections use colour-coded red leads, making them easy to spot at a glance.
