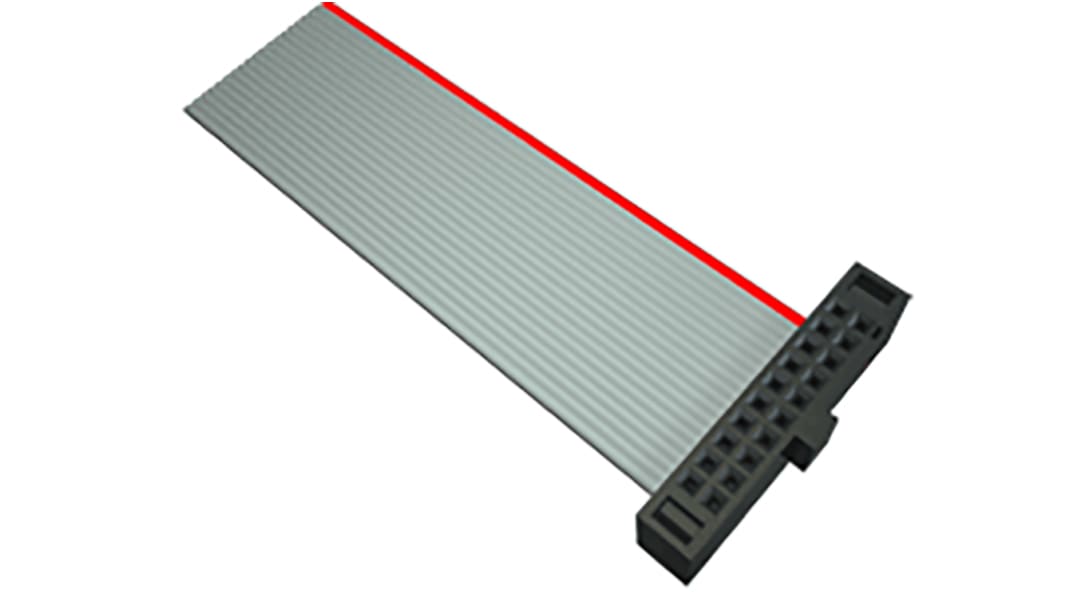

Samtec FFSD Series Ribbon Cable, Flat, 1.27 mm Pitch, 20, 304.8 mm Length

RS stock no.:: 180-0024
Mfr. Part No.:: FFSD-10-D-12.00-01-N
Manufacturer:: Samtec

Samtec FFSD Series Ribbon Cable, Flat, 1.27 mm Pitch, 20, 304.8 mm Length

Bulk discount available

Subtotal (1 unit)*

R 281,45

(exc. VAT)

R 323,67

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

2 unit(s) ready to ship from another location
Plus 53 unit(s) shipping from 12 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 24	R 281.45
25 - 99	R 274.41
100 - 249	R 266.18
250 - 499	R 255.53
500 +	R 245.31

*price indicative

RS stock no.:: 180-0024
Mfr. Part No.:: FFSD-10-D-12.00-01-N
Manufacturer:: Samtec

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Product Type	Ribbon Cable
	Cable Type	Flat
	Pitch	1.27mm
	American Wire Gauge	30AWG
	Jacket Material	Polybutylene Terephthalate
	Series	FFSD
	Cable Length	304.8mm
	Standards/Approvals	RoHS Compliant
	Jacket Colour	Grey
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Number of Conductors	20

	Select all
	Brand Samtec
	Product Type Ribbon Cable
	Cable Type Flat
	Pitch 1.27mm
	American Wire Gauge 30AWG
	Jacket Material Polybutylene Terephthalate
	Series FFSD
	Cable Length 304.8mm
	Standards/Approvals RoHS Compliant
	Jacket Colour Grey
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Number of Conductors 20

Samtec Ribbon Cable, 30AWG Wire Size, Notch Polarisation - FFSD Series - FFSD-10-D-12.00-01-N

Form a connection you can count on between internal components and your circuit board with this ribbon cable from Samtec. Its 20-way configuration lets you send multiple signals simultaneously and reduces the number of single wires needed in your setup. The beryllium copper contacts are gold-plated, making them highly conductive and corrosion-resistant. This means they're well-suited to challenging industrial environments. A 1.27mm pitch between conductors boosts electrical safety by preventing arcing and short circuits. With its flat design, the cable helps to maximise space on PCBs, especially in applications with limited room.

Features & Benefits

• Safe for use in challenging settings, thanks to an operating temperature range between -40°C and +105°C

• Polarised key design prevents damage to your ports from incorrect mating

• 2.3A current rating per pin for energy efficiency and minimal heat emission

• Length of 304.8mm lets you make mid-range attachments without creating clutter

Applications

• Consumer electronics

• Military technology

• Networking equipment

• Robotics and automation

Can I install this ribbon cable in outdoor settings?

Yes, the cable's PBT body is UV-resistant, so it can withstand prolonged exposure to sunlight without degrading.
