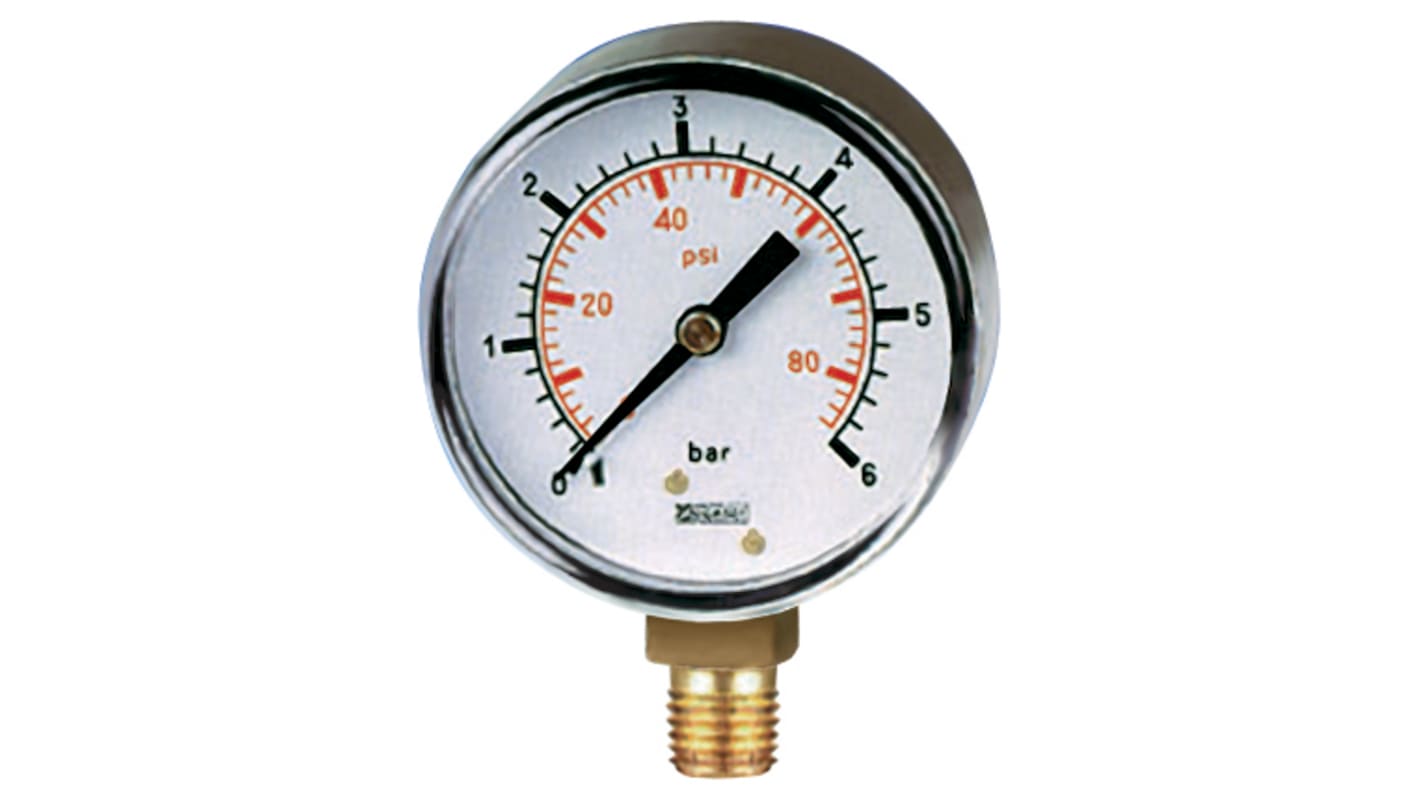

RS PRO BSP 1/4 in 1/4 in BSP Pressure Gauge, 50 mm, 160 psi

RS stock no.:: 235-1294
Manufacturer:: RS PRO

RS PRO BSP 1/4 in 1/4 in BSP Pressure Gauge, 50 mm, 160 psi

Subtotal (1 unit)*

R 293,22

(exc. VAT)

R 337,20

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

1 unit(s) ready to ship
Plus 112 unit(s) ready to ship from another location
Plus 100 unit(s) shipping from 14 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 293.22

*price indicative

RS stock no.:: 235-1294
Manufacturer:: RS PRO

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Pressure Gauge
	Maximum Pressure Measurement	160psi
	Minimum Pressure Measurement	0psi
	Pressure Connection	Brass
	Connection Size	BSP 1/4 in
	Connection Type	1/4 in BSP
	Case Material	Steel
	Connection Location	Bottom Entry
	Dial Size	50mm
	Maximum Operating Temperature	60°C
	Standards/Approvals	No

	Select all
	Brand RS PRO
	Product Type Pressure Gauge
	Maximum Pressure Measurement 160psi
	Minimum Pressure Measurement 0psi
	Pressure Connection Brass
	Connection Size BSP 1/4 in
	Connection Type 1/4 in BSP
	Case Material Steel
	Connection Location Bottom Entry
	Dial Size 50mm
	Maximum Operating Temperature 60°C
	Standards/Approvals No

Manufacturer Information

Exempt

RS PRO BSP 1/4 Bottom Entry Pressure Gauge 160psi, 0psi min.

This RS PRO tried and tested dual scale pressure gauge with bottom connection can be used across a wide range of equipment. The pressure gauge has a steel case which makes it strong and durable in many environments.

This RS PRO pressure gauge has been designed with the highest quality and versatility in mind and features 1/4” BSPT thread with 0 to 2 bar pressure and a 50 mm gauge diameter.

Features and Benefits

Dual scale bar/psi gauge with bottom connection

Steel case, aluminium dial and a pointer

Acrylic window and a brass bottom connection

1/4 inch BSPT with 0 to 10 bar pressure and a 50 mm gauge diameter

±3-2-3% ANSI/ASME Grade B

Applications

Air conditioning systems

Heating systems

Compressors

Medical engineering

Operating machinery

Hydraulics systems

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
