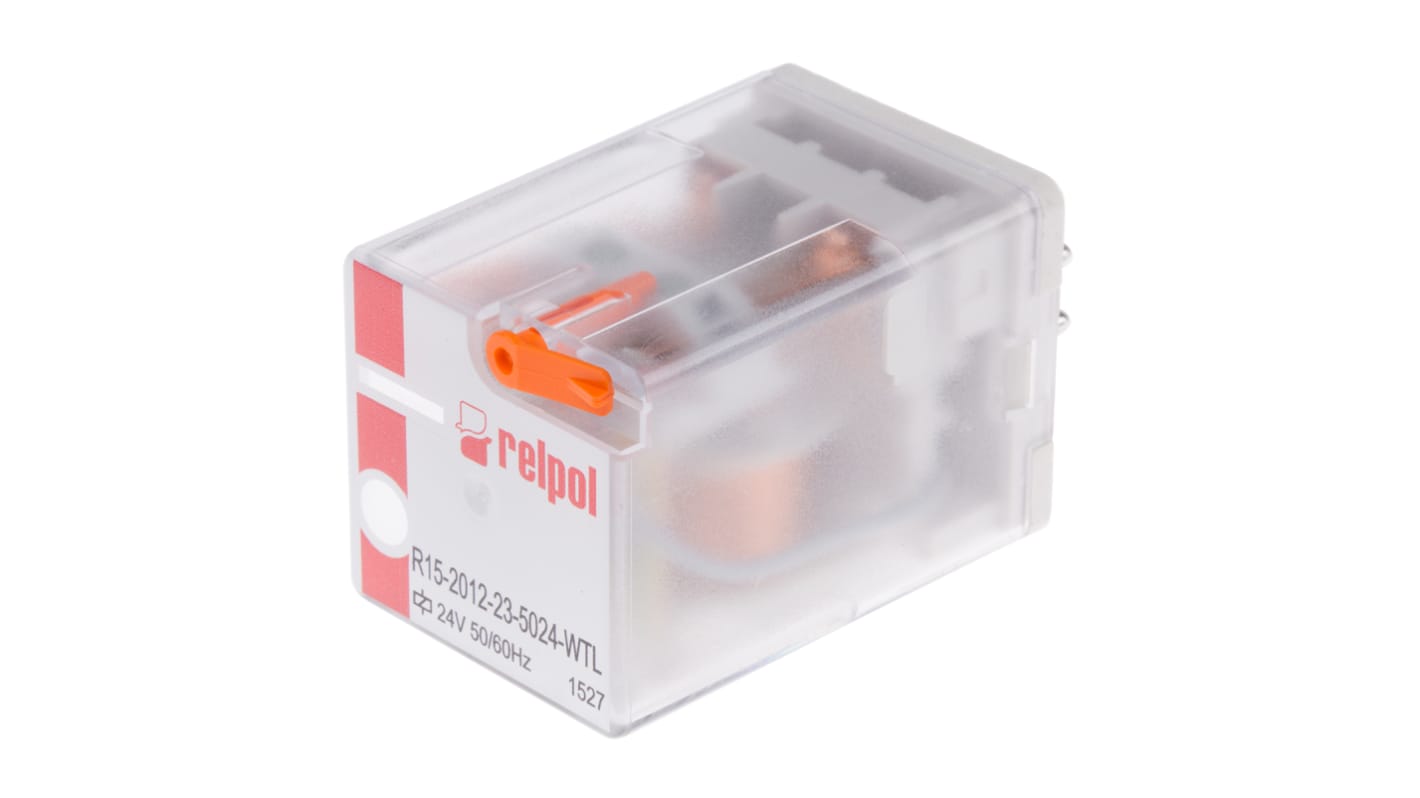

Relpol Power Relay, 24V ac Coil, 10A Switching Current, DPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

R 508,44

(exc. VAT)

R 584,71

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9R 508.44
10 - 19R 495.73
20 +R 480.86

*price indicative

RS stock no.:
805-2204
Mfr. Part No.:
R15-2012-23-5024-WTL
Manufacturer:
Relpol
Find similar products by selecting one or more attributes.
Select all

Brand

Relpol

Product Type

Power Relay

Coil Voltage

24V ac

Contact Configuration

DPDT

Series

R15

Terminal Type

Plug-In

Switching Current

10A

Minimum Operating Temperature

-40°C

Switching AC Voltage

24V ac

Switching DC Voltage

24V dc

Switching Power

1.5W

Coil Resistance

75Ω

Maximum Operating Temperature

55°C

Length

35mm

Coil Power

2.8W

Standards/Approvals

UR, UL, CSA

Width

54.4mm

Height

35mm

Contact Material

Silver Alloy

COO (Country of Origin):
PL

Relpol Miniature Industrial Relays


R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.

R2N (2 CO), R3N (3 CO) and R4N (4 CO)

Miniature dimensions

Cadmium-free contacts

AC and DC coils

Relays may be provided with test buttons (non latching) and plugs

RoHS compliant
