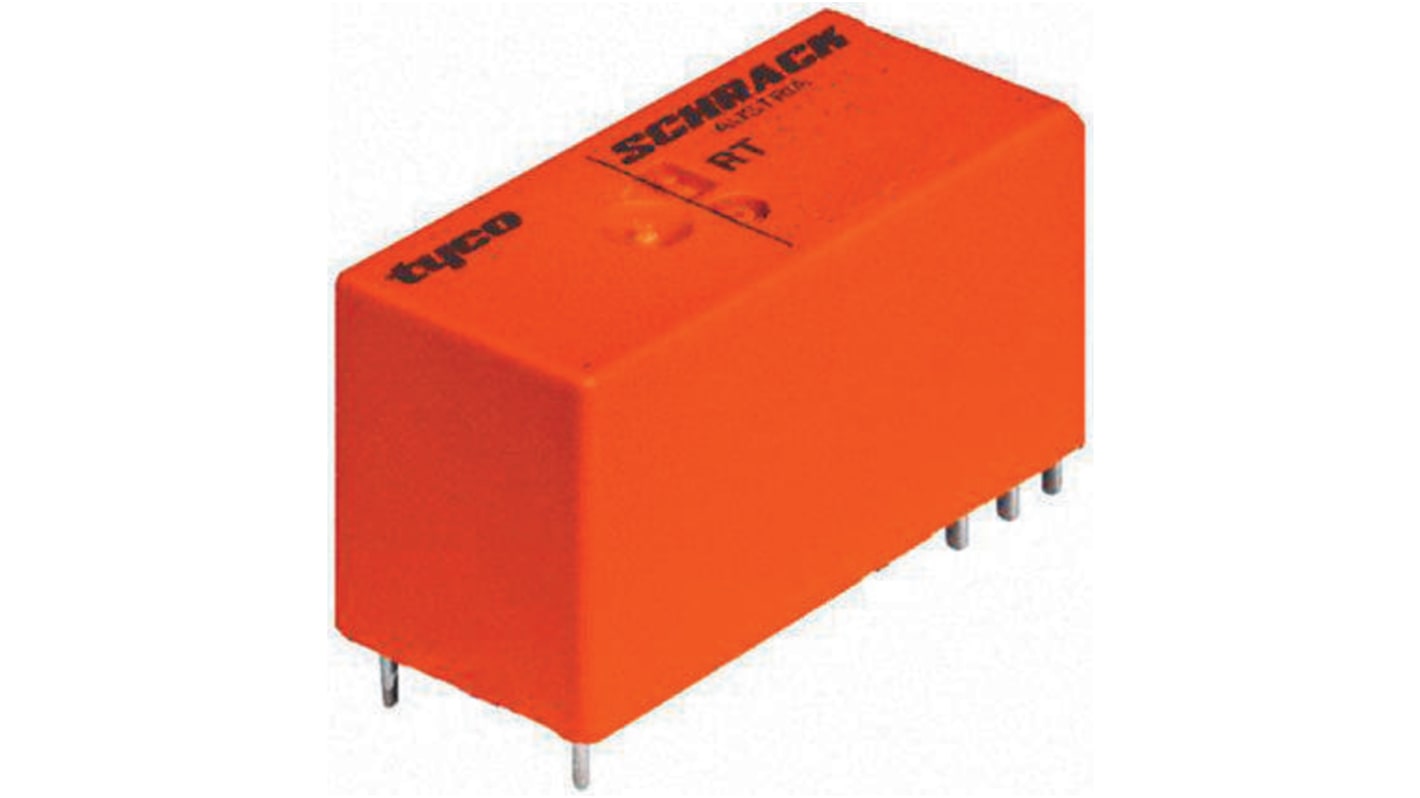

TE Connectivity PCB Mount Latching Power Relay, 5V dc Coil, 8A Switching Current, DPDT
- RS stock no.:
- 680-3870
- Mfr. Part No.:
- RT424A05
- Manufacturer:
- TE Connectivity
On back order for despatch 2024/08/13
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 157,55
(exc. VAT)
R 181,18
(inc. VAT)
| Units | Per unit |
| 1 - 14 | R 157,55 |
| 15 - 49 | R 153,61 |
| 50 - 99 | R 149,00 |
| 100 - 499 | R 143,04 |
| 500 + | R 137,32 |
- RS stock no.:
- 680-3870
- Mfr. Part No.:
- RT424A05
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details
RT1& RT2 Series - Bistable/Latching Relays
From TE Connectivity, the RT1 and RT2 Series of relays are polarized bistable (latching) relays with either 1 or 2 coils. Featuring reinforced insulation and a degree of shock resistance, the RT1 and RT2 series relays are typically used in battery powered equipment or applications where "memory function" is required (e.g. mains failure.)
Features and Benefits:
• Reinforced insulation
• RTII - flux proof
• 5mm pinning
• Shock resistance (destructive) 100g
• RTII - flux proof
• 5mm pinning
• Shock resistance (destructive) 100g
Approvals
UL, CSA, VDE
Specification
Attribute | Value |
|---|---|
| Coil Voltage | 5V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Number of Poles | 2 |
| Latching | Yes |
| Terminal Type | Through Hole |
| Maximum Switching Voltage AC | 400V ac |
| Length | 29mm |
| Coil Resistance | 62Ω |
| Height | 15.7mm |
| Minimum Operating Temperature | -10°C |
| Series | Schrack |
| Depth | 12.7mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | +85°C |
| Maximum Switching Power AC | 2 kVA |
| Dimensions | 29 x 15.7 x 12.7mm |
| Application | Power |
