MPN

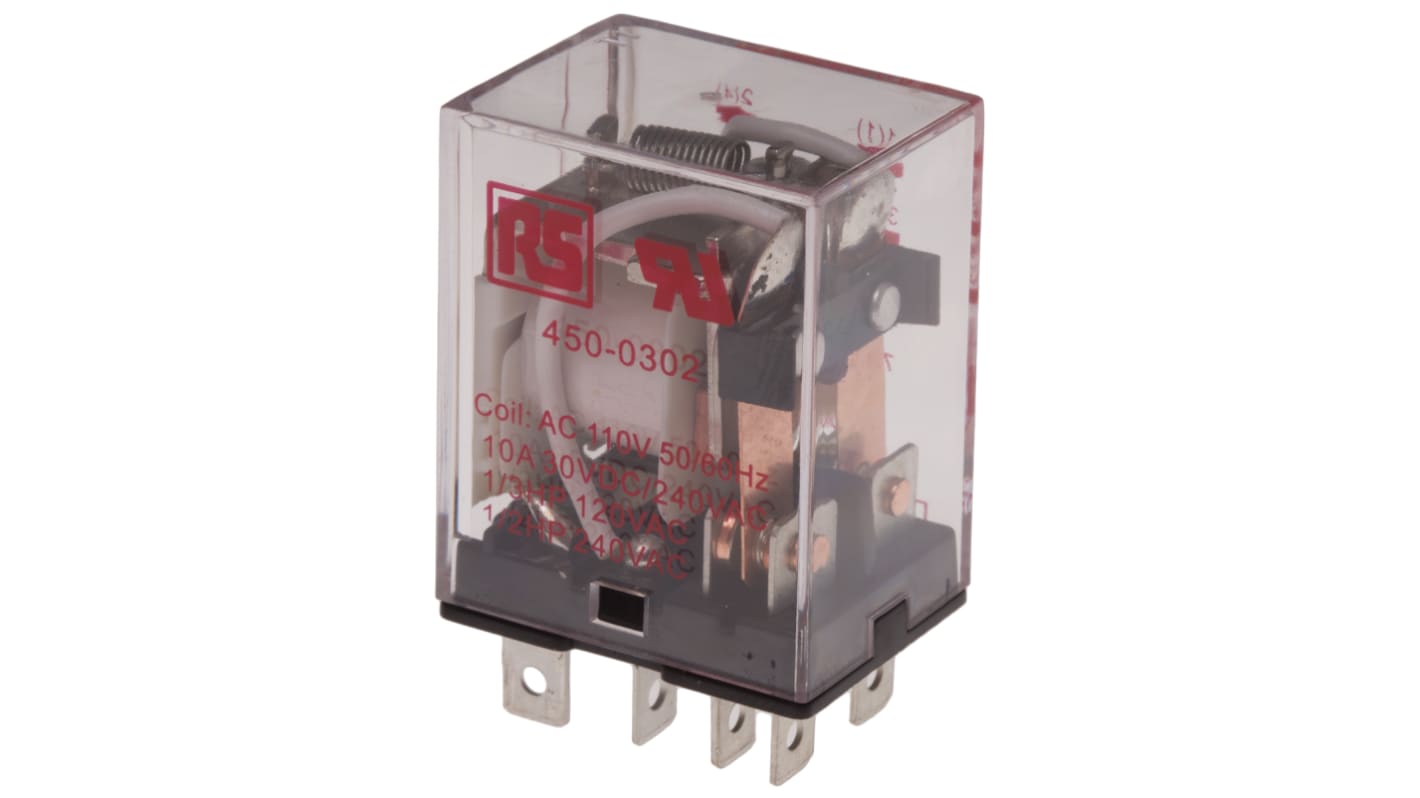

RS PRO Plug-in Power Relay, 110V ac Coil, 10A Switching Current, DPDT

Name: RS PRO Plug-in Power Relay, 110V ac Coil, 10A Switching Current, DPDT
Brand: RS PRO
SKU: 450-0302
Availability: InStock

Get a bulk buy discount

Add 25 more to save 2%

View bulk pricing options

Subtotal (1 unit)*

R 256,42

(exc. VAT)

R 294,88

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Coil Voltage	110V ac
	Product Type	Power Relay
	Contact Configuration	DPDT
	Mount Type	Plug-in
	Terminal Type	PCB Pin
	Switching Current	10A
	Minimum Operating Temperature	-45°C
	Switching DC Voltage	30V dc
	Switching Power	2.4kVA
	Switching AC Voltage	240V ac
	Coil Resistance	3.8kΩ
	Maximum Operating Temperature	55°C
	Length	28mm
	Height	36mm
	Standards/Approvals	EN, UL, CE
	Coil Power	1.2W
	Width	21.5mm
	Contact Material	Silver Alloy

	Select all
	Brand RS PRO
	Coil Voltage 110V ac
	Product Type Power Relay
	Contact Configuration DPDT
	Mount Type Plug-in
	Terminal Type PCB Pin
	Switching Current 10A
	Minimum Operating Temperature -45°C
	Switching DC Voltage 30V dc
	Switching Power 2.4kVA
	Switching AC Voltage 240V ac
	Coil Resistance 3.8kΩ
	Maximum Operating Temperature 55°C
	Length 28mm
	Height 36mm
	Standards/Approvals EN, UL, CE
	Coil Power 1.2W
	Width 21.5mm
	Contact Material Silver Alloy

Exempt

Contact resistance: 50mΩ max.

Mechanical life: 10 million operations

Electrical life: 100000 operations
