Finder PCB Power Relay, 230V ac Coil, 16A Switching Current, 2 NO
- RS stock no.:
- 282-6664
- Mfr. Part No.:
- 622282304300
- Manufacturer:
- Finder
Subtotal (1 unit)*
R 454,54
(exc. VAT)
R 522,72
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 454.54 |
*price indicative
- RS stock no.:
- 282-6664
- Mfr. Part No.:
- 622282304300
- Manufacturer:
- Finder
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Power Relay | |
| Coil Voltage | 230V ac | |
| Contact Configuration | 2 NO | |
| Mount Type | PCB | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 220V dc | |
| Maximum Operating Temperature | 50°C | |
| Coil Resistance | 5kΩ | |
| Coil Power | 3VA | |
| Length | 38.2mm | |
| Standards/Approvals | EAC, CSA | |
| Width | 35.8mm | |
| Height | 53.1mm | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Power Relay | ||
Coil Voltage 230V ac | ||
Contact Configuration 2 NO | ||
Mount Type PCB | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 220V dc | ||
Maximum Operating Temperature 50°C | ||
Coil Resistance 5kΩ | ||
Coil Power 3VA | ||
Length 38.2mm | ||
Standards/Approvals EAC, CSA | ||
Width 35.8mm | ||
Height 53.1mm | ||
Contact Material Silver Tin Oxide | ||
- COO (Country of Origin):
- IT

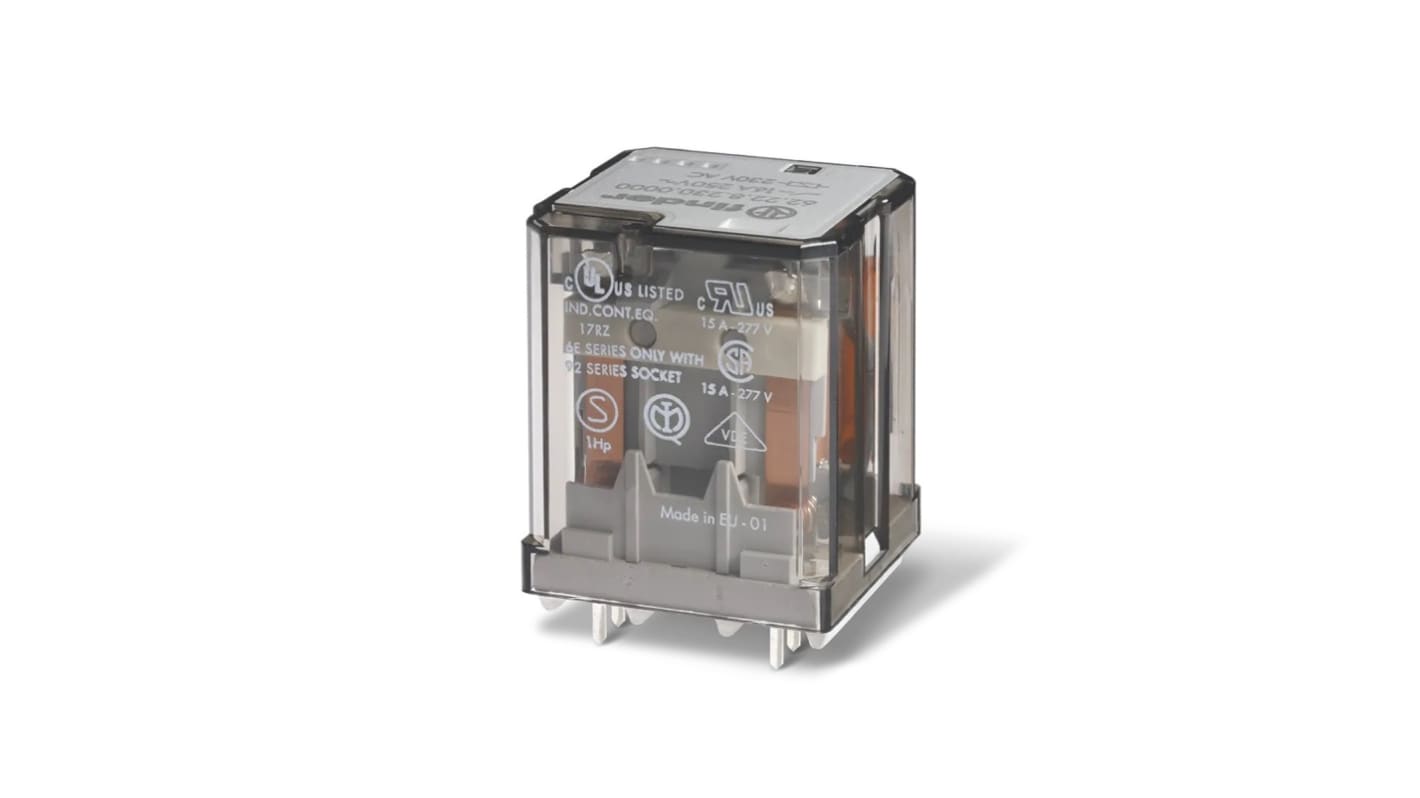

The Finder's PCB mount power relay from 62 series are used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc. This relay has 2 (NO) poles, while the coil voltage is 230 Vac. This relay is rated for 250 Vac.
Standard version relay from 62 series
It comes with AgSnO2 contacts (Cadmium free)
