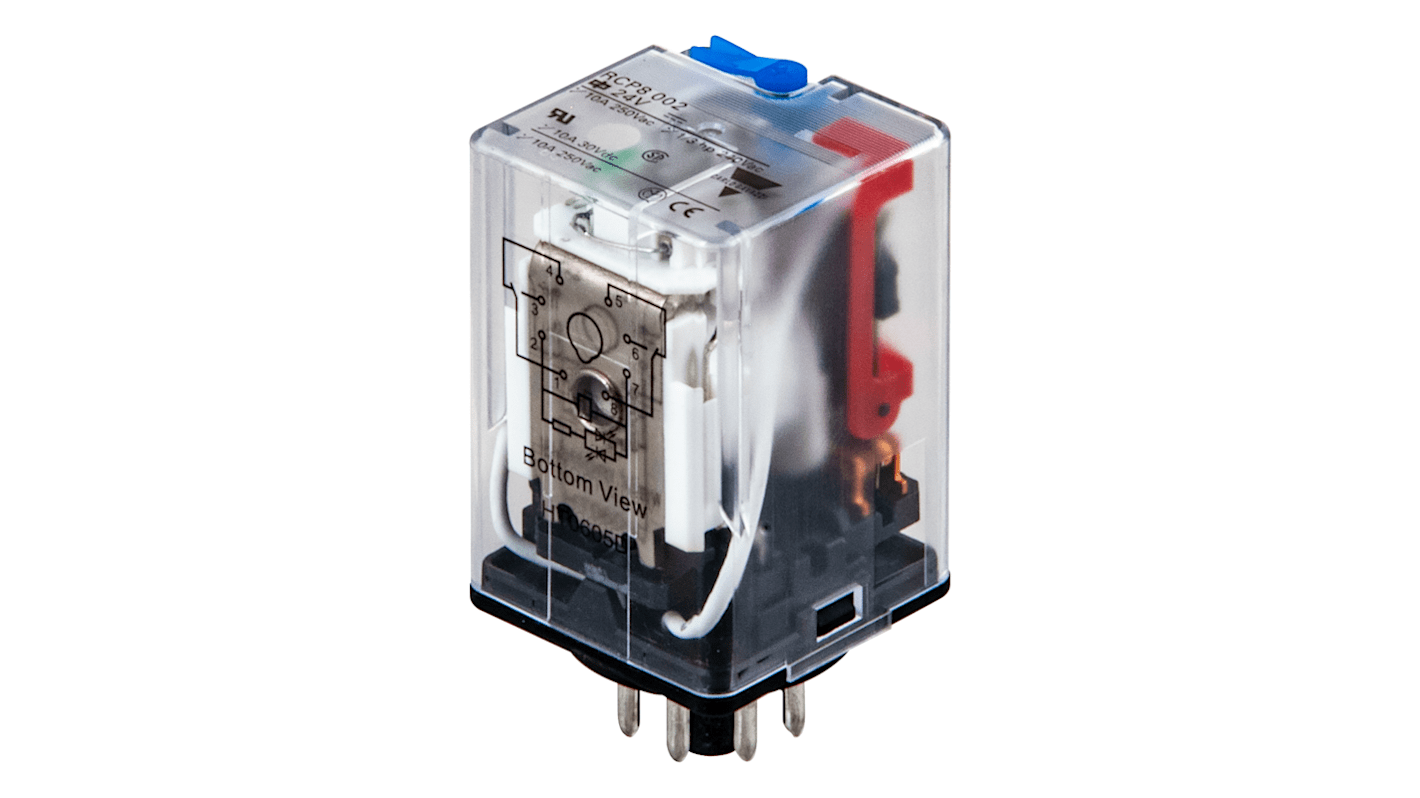

Carlo Gavazzi Power Relay, 48V dc Coil, 10A Switching Current, DPDT
- RS stock no.:
- 272-5984
- Mfr. Part No.:
- RCP800248VDC
- Manufacturer:
- Carlo Gavazzi
Subtotal (1 unit)*
R 233,65
(exc. VAT)
R 268,70
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | R 233.65 |
*price indicative
- RS stock no.:
- 272-5984
- Mfr. Part No.:
- RCP800248VDC
- Manufacturer:
- Carlo Gavazzi
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Coil Voltage | 48V dc | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Series | RCP | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 55°C | |
| Coil Resistance | 1.8kΩ | |
| Height | 55.4mm | |
| Coil Power | 1.4W | |
| Width | 35.5mm | |
| Standards/Approvals | UL, TUV, RINA, IMQ, CSA | |
| Length | 35mm | |
| Contact Material | Silver Tin Oxide | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Coil Voltage 48V dc | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Series RCP | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 55°C | ||
Coil Resistance 1.8kΩ | ||
Height 55.4mm | ||
Coil Power 1.4W | ||
Width 35.5mm | ||
Standards/Approvals UL, TUV, RINA, IMQ, CSA | ||
Length 35mm | ||
Contact Material Silver Tin Oxide | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
The Carlo Gavazzi RCP type industrial relay can be used for a wide range of industrial applications. It is standard with LED, push with arm and flag with 8 number of pins.
Matched sockets available
IP40
Conform to CE low voltage directive
