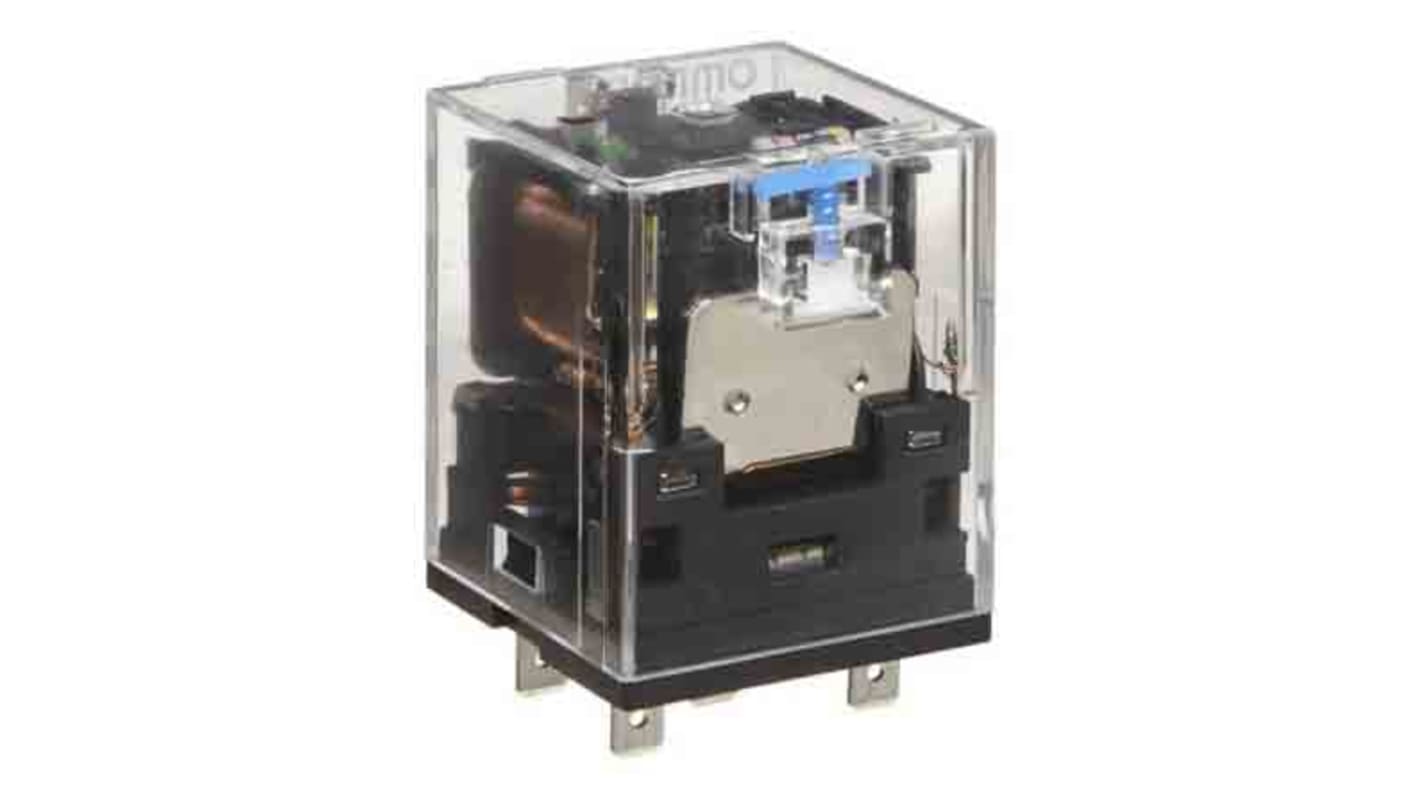

Omron Non-Latching Relay, 24V dc Coil, 10A Switching Current, SPST

RS stock no.:: 215-7290
Mfr. Part No.:: MKS1XTIN-10 24VDC
Manufacturer:: Omron

Omron Non-Latching Relay, 24V dc Coil, 10A Switching Current, SPST

Subtotal (1 unit)*

R 684,38

(exc. VAT)

R 787,04

(inc. VAT)

FREE delivery for orders over R 1,500.00

Temporarily out of stock

Shipping from 06 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 684.38

*price indicative

RS stock no.:: 215-7290
Mfr. Part No.:: MKS1XTIN-10 24VDC
Manufacturer:: Omron

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Product Type	Non-Latching Relay
	Contact Configuration	SPST
	Series	MKS
	Terminal Type	Plug-In
	Switching Current	10A
	Switching AC Voltage	250V ac
	Switching Power	2.2kW
	Switching DC Voltage	220V dc
	Minimum Operating Temperature	-40°C
	Coil Resistance	380Ω
	Maximum Operating Temperature	60°C
	Height	34.5mm
	Width	34.5mm
	Standards/Approvals	IEC (TÜV certification), UL
	Coil Power	1.5W
	Length	52.5mm
	Contact Material	Silver Tin Oxide Indium
	Contact Resistance	100mΩ

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Product Type Non-Latching Relay
	Contact Configuration SPST
	Series MKS
	Terminal Type Plug-In
	Switching Current 10A
	Switching AC Voltage 250V ac
	Switching Power 2.2kW
	Switching DC Voltage 220V dc
	Minimum Operating Temperature -40°C
	Coil Resistance 380Ω
	Maximum Operating Temperature 60°C
	Height 34.5mm
	Width 34.5mm
	Standards/Approvals IEC (TÜV certification), UL
	Coil Power 1.5W
	Length 52.5mm
	Contact Material Silver Tin Oxide Indium
	Contact Resistance 100mΩ

Datasheet - MKS1XTIN-10 24VDC

Omron MKS Series Relay, 24V Coil Voltage, 10A Switching Current - MKS1XTIN-10 24VDC

This relay is a Compact electromechanical switching device designed for industrial control and automation applications, operating with a 24V DC coil. It performs single-circuit switching tasks using a single-pole single-throw contact arrangement and is intended for plug-in mounting in control panels and relay sockets. The unit is suitable for environments requiring moderate ambient temperature ranges and recognised safety approvals.

Features and Benefits:

• 1.5 W Coil power for low energy consumption and efficient control
• 380 Ω Coil resistance for predictable Coil drive characteristics
• SPST contact configuration for straightforward single-circuit switching
• AgSnIn contact material offering robust conductive performance
• 10 A switching current enabling medium-load switching tasks
• Switching power rated to 2.2 kW for high-load switching capability

Applications

• Suitable for motor control circuits requiring single-contact switching
• Ideal for switching resistive heaters in control systems
• Used with PLC outputs for intermediary load switching
• Can be used for lighting control in industrial installations
• Suitable for retrofit replacements in relay-based panels

What Terminal arrangement is provided for installation?

The device uses plug-in terminals designed for insertion into compatible relay sockets, allowing Rapid replacement without rewiring.

What voltage ranges can it switch for AC and DC loads?

It is specified to switch up to 250V AC and up to 220V DC, covering common industrial supply voltages for both AC and DC circuits.

What are the environmental operating limits for temperature?

The relay is rated to operate between −40 °C and 60 °C, making it suitable for a wide range of indoor and protected industrial environments.

Which approvals support its use in regulated systems?

It holds IEC, TÜV and UL approvals, permitting its deployment where recognised standards compliance is required.

What is the mechanical footprint relevant to panel design?

The relay occupies a Compact envelope measuring 34.5 x 52.5 mm, enabling dense relay panel layouts.
