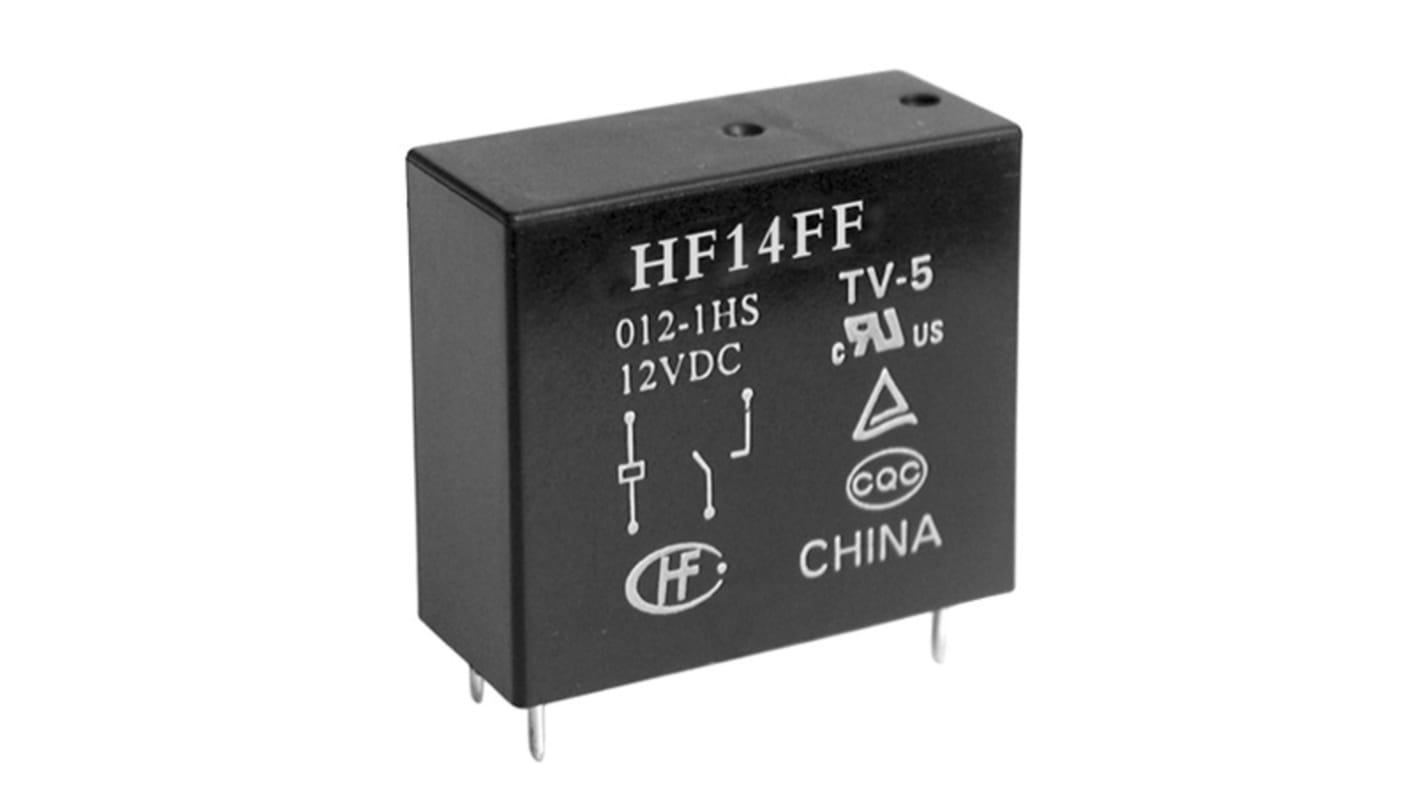

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST

RS stock no.:: 176-2852
Mfr. Part No.:: HF14FF/012-1HSTF
Manufacturer:: Hongfa Europe GMBH

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST

Discontinued product

RS stock no.:: 176-2852
Mfr. Part No.:: HF14FF/012-1HSTF
Manufacturer:: Hongfa Europe GMBH

Datasheet

Attribute	Value
Coil Voltage	12V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	277V
Maximum Switching Voltage DC	30V dc
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	29mm
Coil Resistance	275Ω
Coil Power	530mW
Depth	13mm
Life	1 x 10^7 cycles
Isolation Coil To Contact	5kV
Maximum Operating Temperature	+70°C
Height	26mm
Minimum Operating Temperature	-40°C
Series	HF14FF
Contact Material	Silver Alloy
Maximum Switching Power AC	2.77 kVA
Maximum Switching Power DC	300 W

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST
