TE Connectivity PCB Mount Power Relay, 24V dc Coil, 25A Switching Current, SPST
- RS stock no.:
- 164-0152
- Mfr. Part No.:
- PCF-124D2M,000
- Manufacturer:
- TE Connectivity

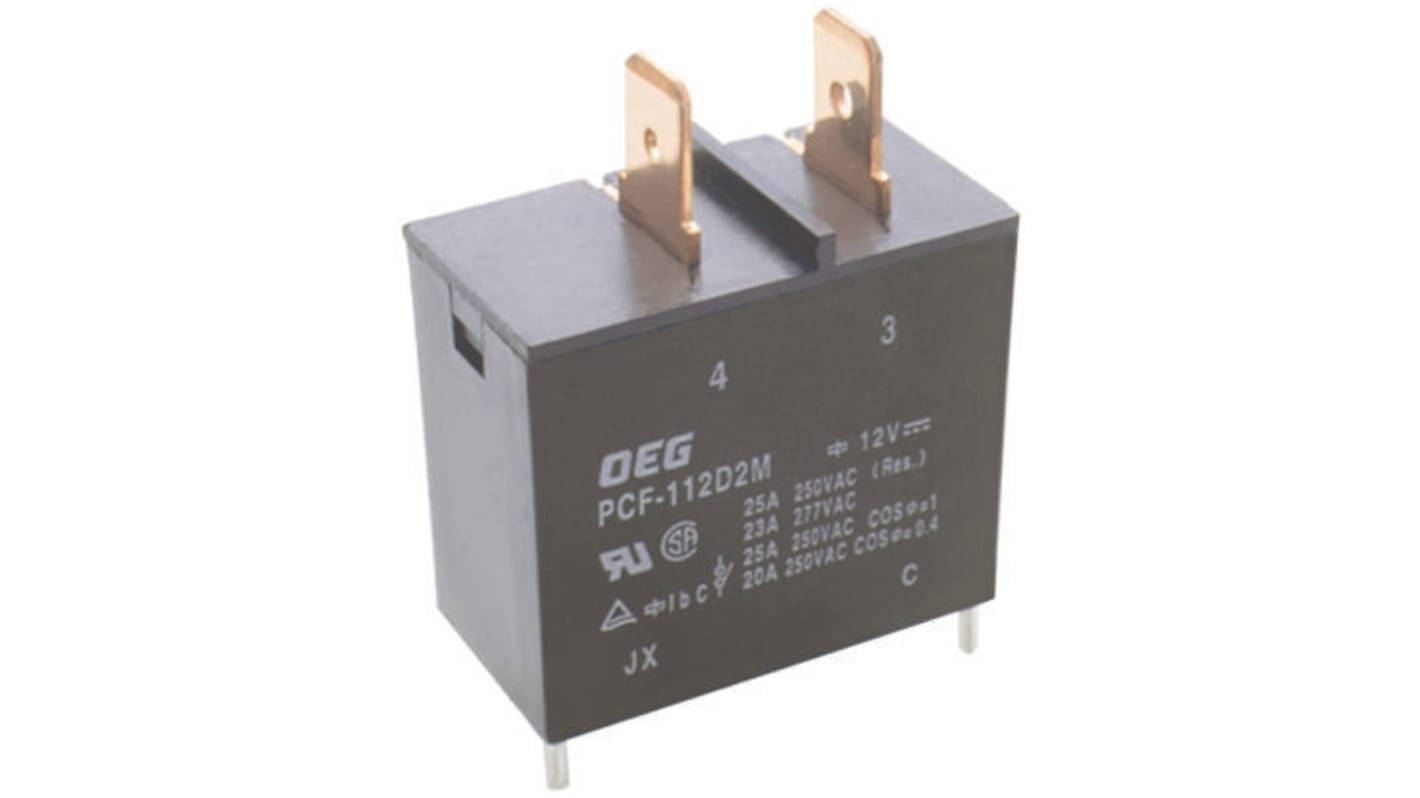

Image representative of range
Stock information currently inaccessible
- RS stock no.:
- 164-0152
- Mfr. Part No.:
- PCF-124D2M,000
- Manufacturer:
- TE Connectivity
Specification
Technical data sheets
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 25A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Length | 30.4mm | |
| Coil Resistance | 640Ω | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +55°C | |
| Depth | 16mm | |
| Height | 36.5mm | |
| Series | PCF | |
| Minimum Operating Temperature | -30°C | |
| Maximum Switching Power AC | 6.25 kVA | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 25A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type Through Hole | ||
Length 30.4mm | ||
Coil Resistance 640Ω | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +55°C | ||
Depth 16mm | ||
Height 36.5mm | ||
Series PCF | ||
Minimum Operating Temperature -30°C | ||
Maximum Switching Power AC 6.25 kVA | ||
Application Power | ||
- COO (Country of Origin):
- CN
