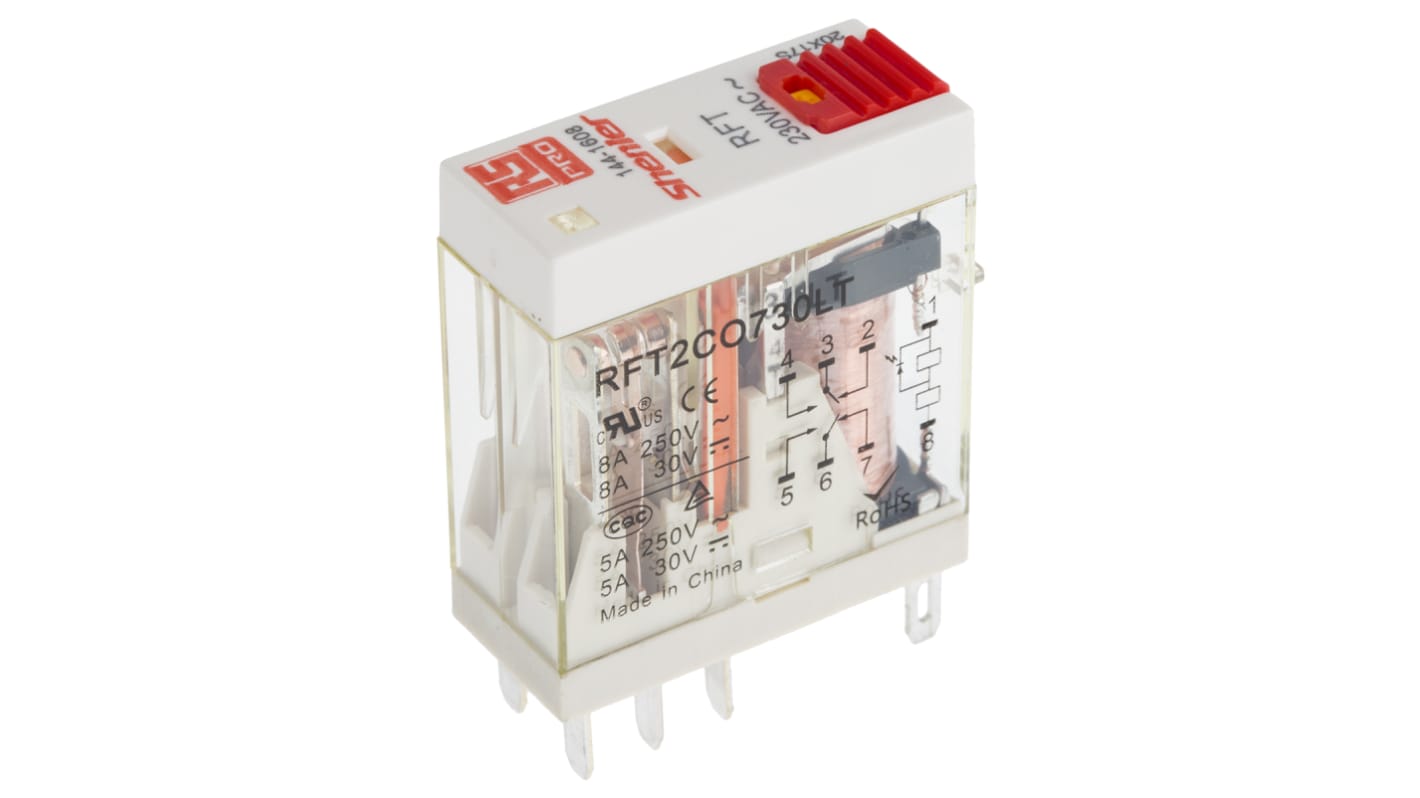

RS PRO Plug In Power Relay, 230V ac Coil, 8A Switching Current, DPDT
- RS stock no.:
- 144-1608
- Manufacturer:
- RS PRO
Subtotal (1 unit)**
R 221 51
(exc. VAT)
R 254 74
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Units | Per unit |
|---|---|
| 1 + | R 221,51 |
**price indicative
- RS stock no.:
- 144-1608
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 8A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 30V dc | |
| Maximum Switching Current DC | 8 A | |
| Maximum Switching Current AC | 5 A | |
| Length | 29mm | |
| Coil Resistance | 23000Ω | |
| Coil Power | 530mW | |
| Isolation Coil To Contact | 5kV ac | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -40°C | |
| Life | 10000000 cycles | |
| Height | 27mm | |
| Standards Met | CE:CQC, CULus | |
| Contact Material | Silver Alloy | |
| Series | RFT | |
| Depth | 12.6mm | |
| Maximum Switching Power DC | 0.53 W | |
| Maximum Switching Power AC | 1VA | |
| Application | Interface | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 30V dc | ||
Maximum Switching Current DC 8 A | ||
Maximum Switching Current AC 5 A | ||
Length 29mm | ||
Coil Resistance 23000Ω | ||
Coil Power 530mW | ||
Isolation Coil To Contact 5kV ac | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -40°C | ||
Life 10000000 cycles | ||
Height 27mm | ||
Standards Met CE:CQC, CULus | ||
Contact Material Silver Alloy | ||
Series RFT | ||
Depth 12.6mm | ||
Maximum Switching Power DC 0.53 W | ||
Maximum Switching Power AC 1VA | ||
Application Interface | ||
