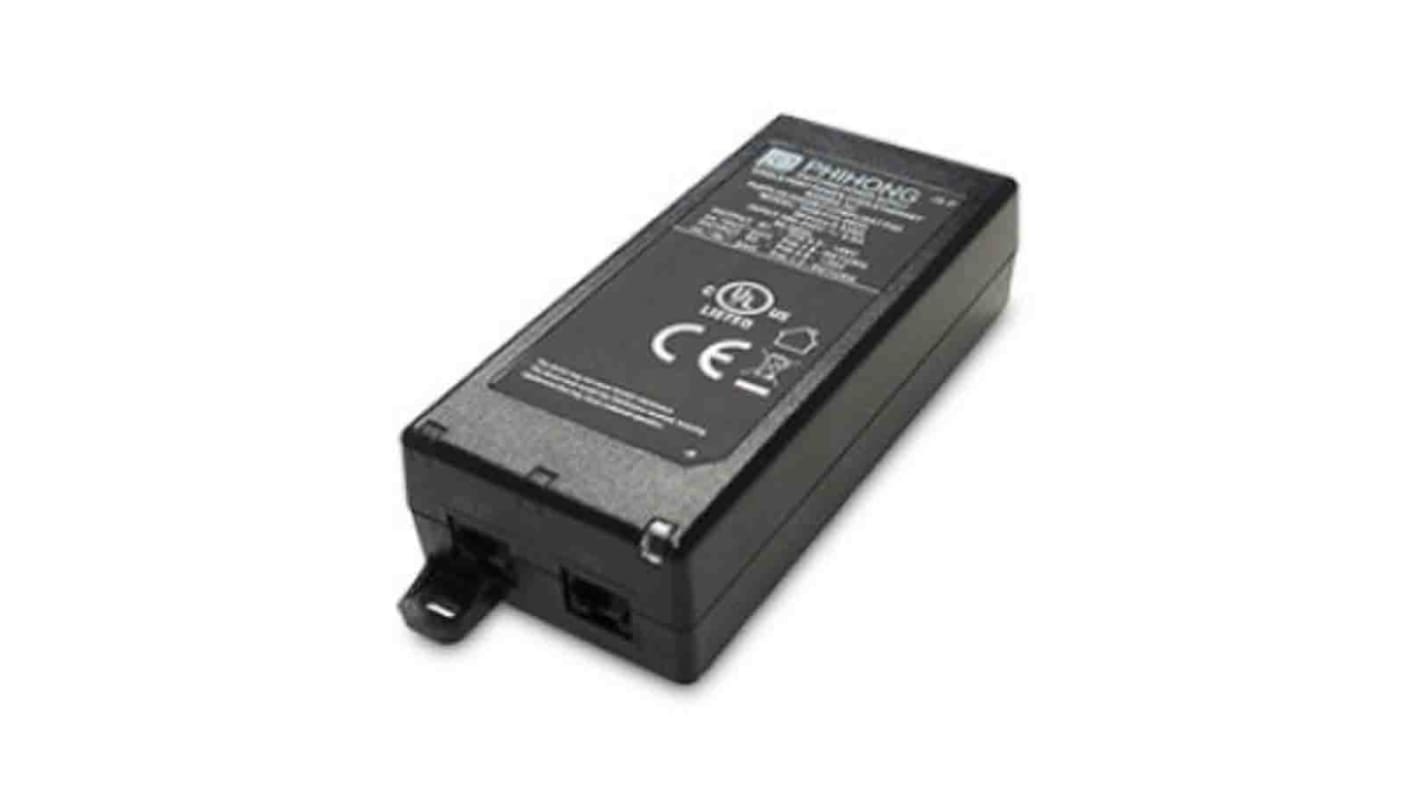

Phihong 1 Port 1 Port PoE Injector, 100V ac, 240 V ac Input 60 W, 56V dc Output, 1.07 A
- RS stock no.:
- 204-9965
- Mfr. Part No.:
- POE60U-560E
- Manufacturer:
- Phihong
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 1 057,24
(exc. VAT)
R 1 215,83
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 427 unit(s) ready to ship from another location
- Plus 17 unit(s) shipping from 01 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,057.24 |
| 5 - 9 | R 1,030.81 |
| 10 - 24 | R 999.89 |
| 25 - 49 | R 959.89 |
| 50 + | R 921.49 |
*price indicative
- RS stock no.:
- 204-9965
- Mfr. Part No.:
- POE60U-560E
- Manufacturer:
- Phihong
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phihong | |
| Input Voltage | 100V ac, 240V ac | |
| Product Type | PoE Injector | |
| Maximum Data Rate | 10Gbps | |
| Output Voltage | 56V dc | |
| Output Current | 1.07A | |
| Number of DC Power Output Ports | 1 | |
| Number of Outputs | 1 | |
| Mount Type | Desktop | |
| Efficiency | 80% | |
| Power | 60W | |
| Length | 140mm | |
| Width | 65mm | |
| Input Connector Type | 3 Wire C14 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 250g | |
| Standards/Approvals | IEC62368-1, UL/cUL 60950-1, IEC60950-1, UL/cUL 62368-1, CE | |
| Series | POE60U | |
| Electrical Phase | 1 | |
| Number of Ethernet Ports | 1 | |
| Select all | ||
|---|---|---|
Brand Phihong | ||
Input Voltage 100V ac, 240V ac | ||
Product Type PoE Injector | ||
Maximum Data Rate 10Gbps | ||
Output Voltage 56V dc | ||
Output Current 1.07A | ||
Number of DC Power Output Ports 1 | ||
Number of Outputs 1 | ||
Mount Type Desktop | ||
Efficiency 80% | ||
Power 60W | ||
Length 140mm | ||
Width 65mm | ||
Input Connector Type 3 Wire C14 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Weight 250g | ||
Standards/Approvals IEC62368-1, UL/cUL 60950-1, IEC60950-1, UL/cUL 62368-1, CE | ||
Series POE60U | ||
Electrical Phase 1 | ||
Number of Ethernet Ports 1 | ||
- COO (Country of Origin):
- CN
The Phihong 60W Single Port Multi -Gig Passive Power over Ethernet Midspan.
Single Source 4 Pair Power Current Sharing
Limited Power Source
Full Protection OVP, OCP
Non-Vented Case
Two Power Outputs: Pin +3,6 with Return on 1,2 Pins and +4,5 with Return on 7,8 Pins
Broken Wire Detection
Gigabit Compatible
