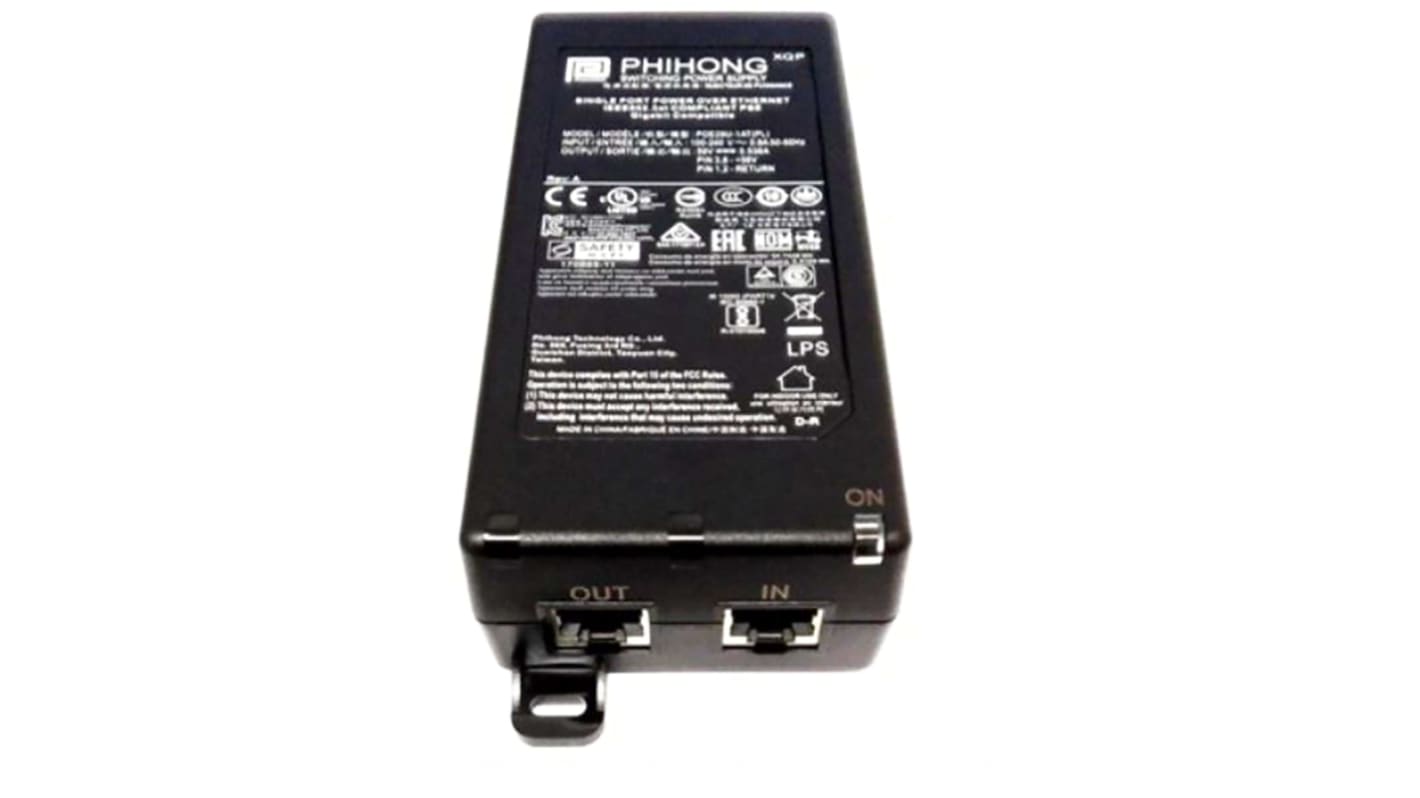

Phihong 1 Port 1 Port PoE Injector, 240V ac Input 90 W, 56V dc Output, 1.6 A
- RS stock no.:
- 204-7274
- Mfr. Part No.:
- POE90U-1BT6
- Manufacturer:
- Phihong
Get a bulk buy discount
Add 5 more to save R 282,85
View bulk pricing optionsSubtotal (1 unit)*
R 2 262,95
(exc. VAT)
R 2 602,39
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 206 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | R 2,262.95 | - |
| 5 - 9 | R 2,206.38 | R 282,85 |
| 10 + | R 2,140.19 | R 1 227,60 |
*price indicative
- RS stock no.:
- 204-7274
- Mfr. Part No.:
- POE90U-1BT6
- Manufacturer:
- Phihong
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phihong | |
| Input Voltage | 240V ac | |
| Maximum Data Rate | 10Gbps | |
| Product Type | PoE Injector | |
| Output Voltage | 56V dc | |
| Output Current | 1.6A | |
| Number of Outputs | 1 | |
| Number of DC Power Output Ports | 1 | |
| Mount Type | Screw | |
| Power | 90W | |
| Length | 166mm | |
| Width | 80mm | |
| Input Connector Type | IEC320 inlet 3 pin | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 40°C | |
| Weight | 500g | |
| Standards/Approvals | IEC60950-1, CE, UL/cUL 60950-1, AS/NZ 623682, IEC62368-1, UL/cUL 62368-1 | |
| Series | POE90U | |
| Number of Ethernet Ports | 1 | |
| Electrical Phase | 1 | |
| Select all | ||
|---|---|---|
Brand Phihong | ||
Input Voltage 240V ac | ||
Maximum Data Rate 10Gbps | ||
Product Type PoE Injector | ||
Output Voltage 56V dc | ||
Output Current 1.6A | ||
Number of Outputs 1 | ||
Number of DC Power Output Ports 1 | ||
Mount Type Screw | ||
Power 90W | ||
Length 166mm | ||
Width 80mm | ||
Input Connector Type IEC320 inlet 3 pin | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 40°C | ||
Weight 500g | ||
Standards/Approvals IEC60950-1, CE, UL/cUL 60950-1, AS/NZ 623682, IEC62368-1, UL/cUL 62368-1 | ||
Series POE90U | ||
Number of Ethernet Ports 1 | ||
Electrical Phase 1 | ||
- COO (Country of Origin):
- CN
The Phihong 90W single port power over Ethernet midspan IEEE802.3at Compliant Power Injector which can be used in various applications like IP Telephones, Security Cameras, Wireless Access Points, IP Print Servers, Bluetooth and WiMAX access points.
Non vented case
Gigabit compatible
Shielded RJ45
Over voltage protection
Over current protection
