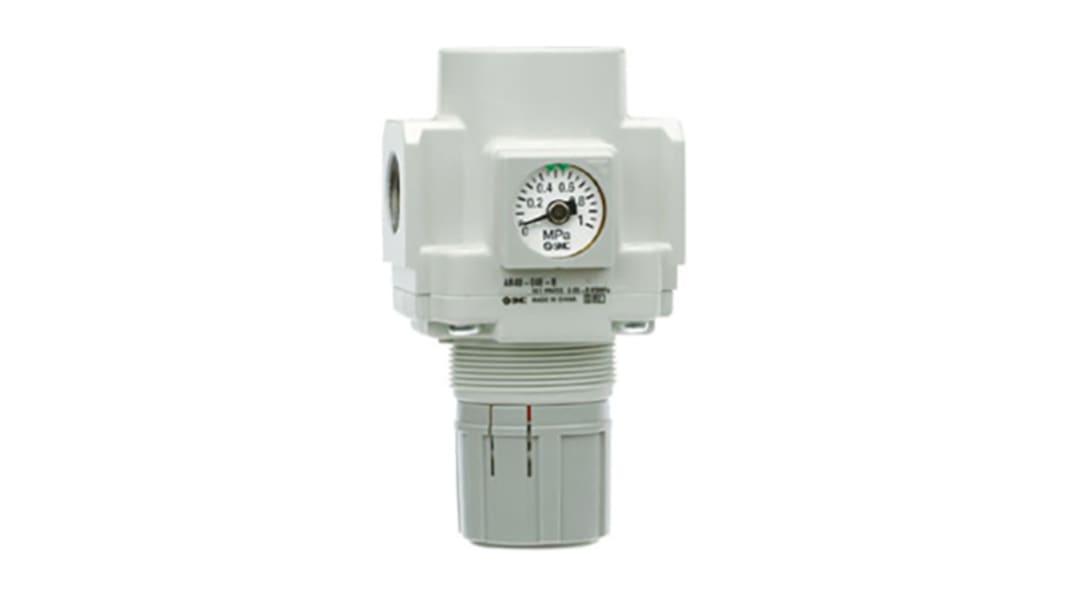

SMC G 1/8 Pneumatic Regulator - 0.02MPa to 0.2MPa, 1/8, 1MPa max. input

RS stock no.:: 884-2694
Mfr. Part No.:: AR20-F01-1-B
Manufacturer:: SMC

SMC G 1/8 Pneumatic Regulator - 0.02MPa to 0.2MPa, 1/8, 1MPa max. input

On back order for despatch 2024/06/11

Not Available for premium delivery

Price (Excl VAT) Each

R 563,08

(exc. VAT)

R 647,54

(inc. VAT)

Units	Per unit
1 +	R 563,08

RS stock no.:: 884-2694
Mfr. Part No.:: AR20-F01-1-B
Manufacturer:: SMC

Modular F R L Units Data Sheet
Energy Efficiency Brochure

RS stock no.:: 884-2694
Mfr. Part No.:: AR20-F01-1-B
Manufacturer:: SMC

Modular F R L Units Data Sheet
Energy Efficiency Brochure

Attribute	Value
Port Connection	G 1/8
Maximum Outlet Pressure	0.2MPa
Minimum Outlet Pressure	0.02MPa
Maximum Input Pressure	1MPa
Pressure Gauge Port Size	Rc 1/8
Port Connection Thread Size	1/8
Pressure Gauge Port Thread Size	1/8in
Maximum Flow Rate	20L/min
Integral Check Valve	Without Check Valve
Port Connection Thread Standard	G
Minimum Operating Temperature	-5°C
Maximum Operating Temperature	+60°C
Overall Height	94mm
Overall Width	55mm
Proof Pressure	1.5MPa
Pressure Gauge Port Thread Standard	Rc

Attribute	Value
Port Connection	G 1/8
Maximum Outlet Pressure	0.2MPa
Minimum Outlet Pressure	0.02MPa
Maximum Input Pressure	1MPa
Pressure Gauge Port Size	Rc 1/8
Port Connection Thread Size	1/8
Pressure Gauge Port Thread Size	1/8in
Maximum Flow Rate	20L/min
Integral Check Valve	Without Check Valve
Port Connection Thread Standard	G
Minimum Operating Temperature	-5°C
Maximum Operating Temperature	+60°C
Overall Height	94mm
Overall Width	55mm
Proof Pressure	1.5MPa
Pressure Gauge Port Thread Standard	Rc
