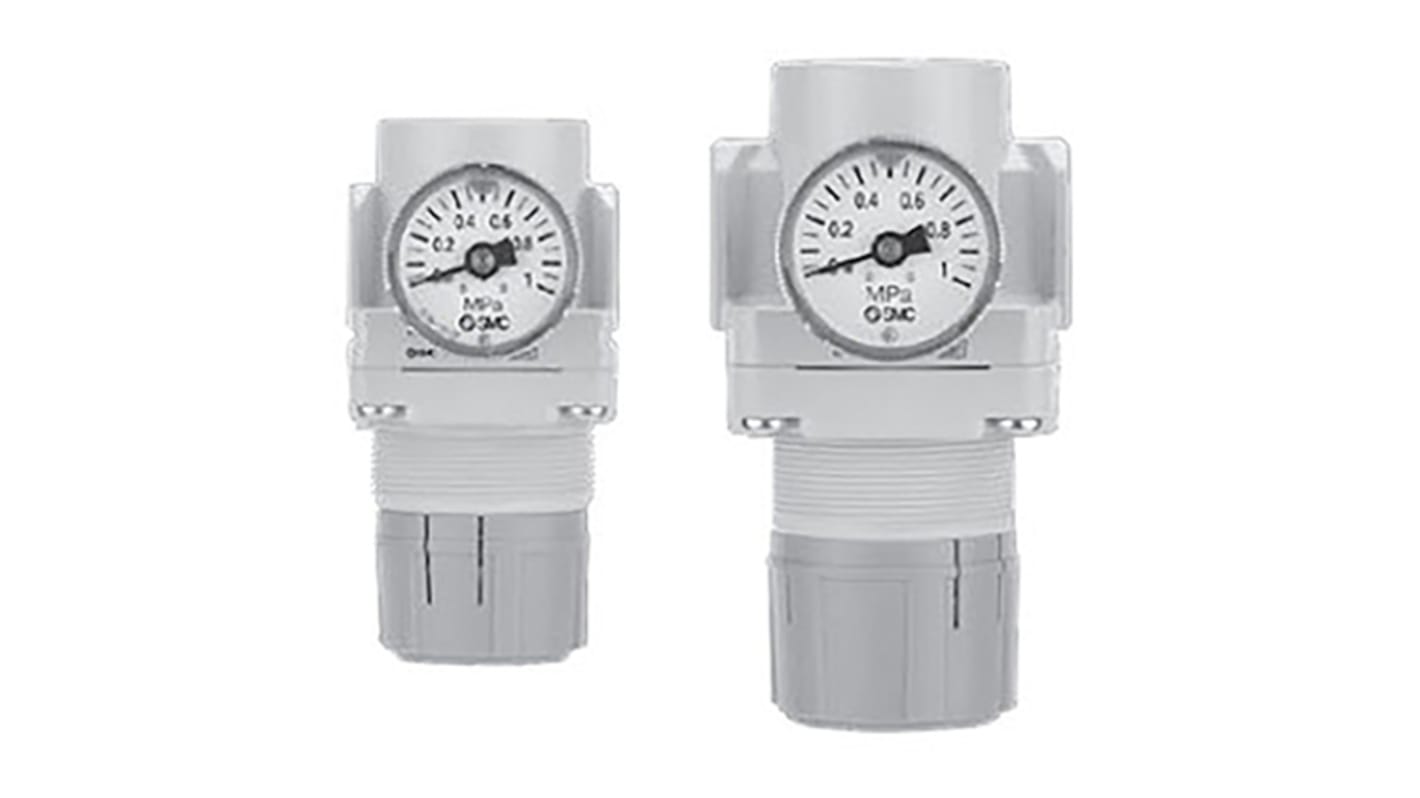

SMC NPT 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4in, 1MPa max. input
- RS stock no.:
- 849-9644
- Mfr. Part No.:
- AR20-N02BG-Z-A
- Manufacturer:
- SMC
Subtotal (1 unit)**
R 731 99
(exc. VAT)
R 841 79
(inc. VAT)
5 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Real time stock check
Not Available for premium delivery
Units | Per unit |
|---|---|
| 1 + | R 731,99 |
**price indicative
- RS stock no.:
- 849-9644
- Mfr. Part No.:
- AR20-N02BG-Z-A
- Manufacturer:
- SMC
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Port Connection | NPT 1/4 | |
| Maximum Outlet Pressure | 0.85MPa | |
| Minimum Outlet Pressure | 0.05MPa | |
| Maximum Input Pressure | 1MPa | |
| Manufacturer Series | AR | |
| Pressure Gauge Port Size | NPT 1/8 | |
| Port Connection Thread Size | 1/4in | |
| Pressure Gauge Port Thread Size | 1/8in | |
| Maximum Flow Rate | 0.1L/min | |
| Integral Check Valve | Without Check Valve | |
| Port Connection Thread Standard | NPT | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +60°C | |
| Pressure Gauge Port Thread Standard | NPT | |
Select all | ||
|---|---|---|
Brand SMC | ||
Port Connection NPT 1/4 | ||
Maximum Outlet Pressure 0.85MPa | ||
Minimum Outlet Pressure 0.05MPa | ||
Maximum Input Pressure 1MPa | ||
Manufacturer Series AR | ||
Pressure Gauge Port Size NPT 1/8 | ||
Port Connection Thread Size 1/4in | ||
Pressure Gauge Port Thread Size 1/8in | ||
Maximum Flow Rate 0.1L/min | ||
Integral Check Valve Without Check Valve | ||
Port Connection Thread Standard NPT | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +60°C | ||
Pressure Gauge Port Thread Standard NPT | ||
