Broadcom HCPL-3120-500E AC/DC Input Optocoupler, Surface, 8-Pin Tubular
- RS stock no.:
- 242-546
- Mfr. Part No.:
- HCPL-3120-500E
- Manufacturer:
- Broadcom

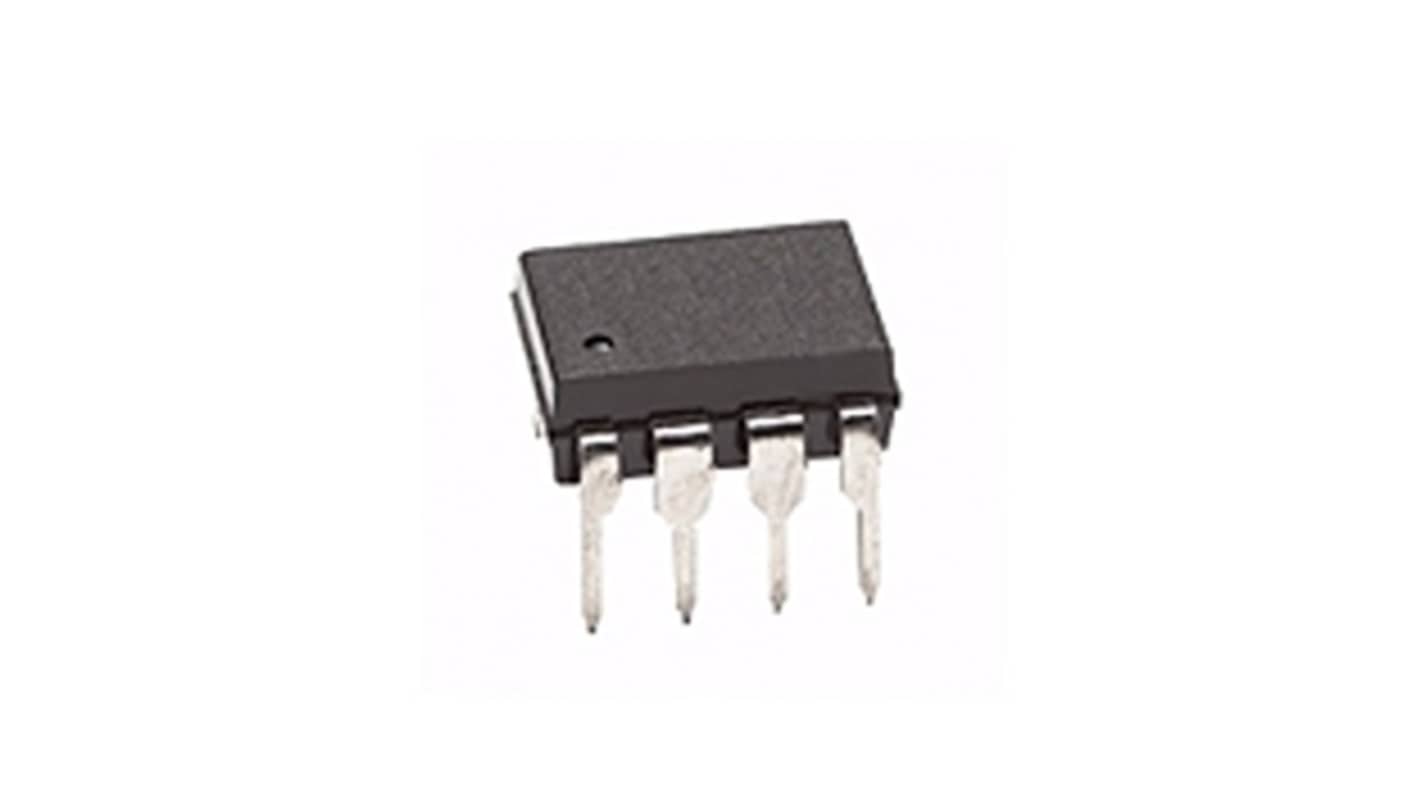

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 2 units)*
R 118,55
(exc. VAT)
R 136,332
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 106 unit(s) shipping from 22 June 2026
- Plus 2,616 unit(s) shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 18 | R 59.275 | R 118.55 |
| 20 - 198 | R 57.795 | R 115.59 |
| 200 - 998 | R 56.06 | R 112.12 |
| 1000 - 1998 | R 53.82 | R 107.64 |
| 2000 + | R 51.665 | R 103.33 |
*price indicative
- RS stock no.:
- 242-546
- Mfr. Part No.:
- HCPL-3120-500E
- Manufacturer:
- Broadcom
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mount Type | Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.8V | |
| Packaging | Tube | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | Tubular | |
| Input Current Type | AC/DC | |
| Typical Rise Time | 0.1μs | |
| Maximum Input Current | 25mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | -40°C | |
| Logic Output | Yes | |
| Maximum Operating Temperature | 100°C | |
| Typical Fall Time | 0.1μs | |
| Standards/Approvals | CSA, IEC/EN/DIN EN 60747-5-5, UL1577 | |
| Series | HCPL-3120 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Mount Type Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.8V | ||
Packaging Tube | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type Tubular | ||
Input Current Type AC/DC | ||
Typical Rise Time 0.1μs | ||
Maximum Input Current 25mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature -40°C | ||
Logic Output Yes | ||
Maximum Operating Temperature 100°C | ||
Typical Fall Time 0.1μs | ||
Standards/Approvals CSA, IEC/EN/DIN EN 60747-5-5, UL1577 | ||
Series HCPL-3120 | ||
Automotive Standard No | ||
The Broadcom Gate drive optocouplers contain a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. It is ideally suited for driving power IGBTs and MOSFETs used in motor control inverted applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices.
CSA Approval
