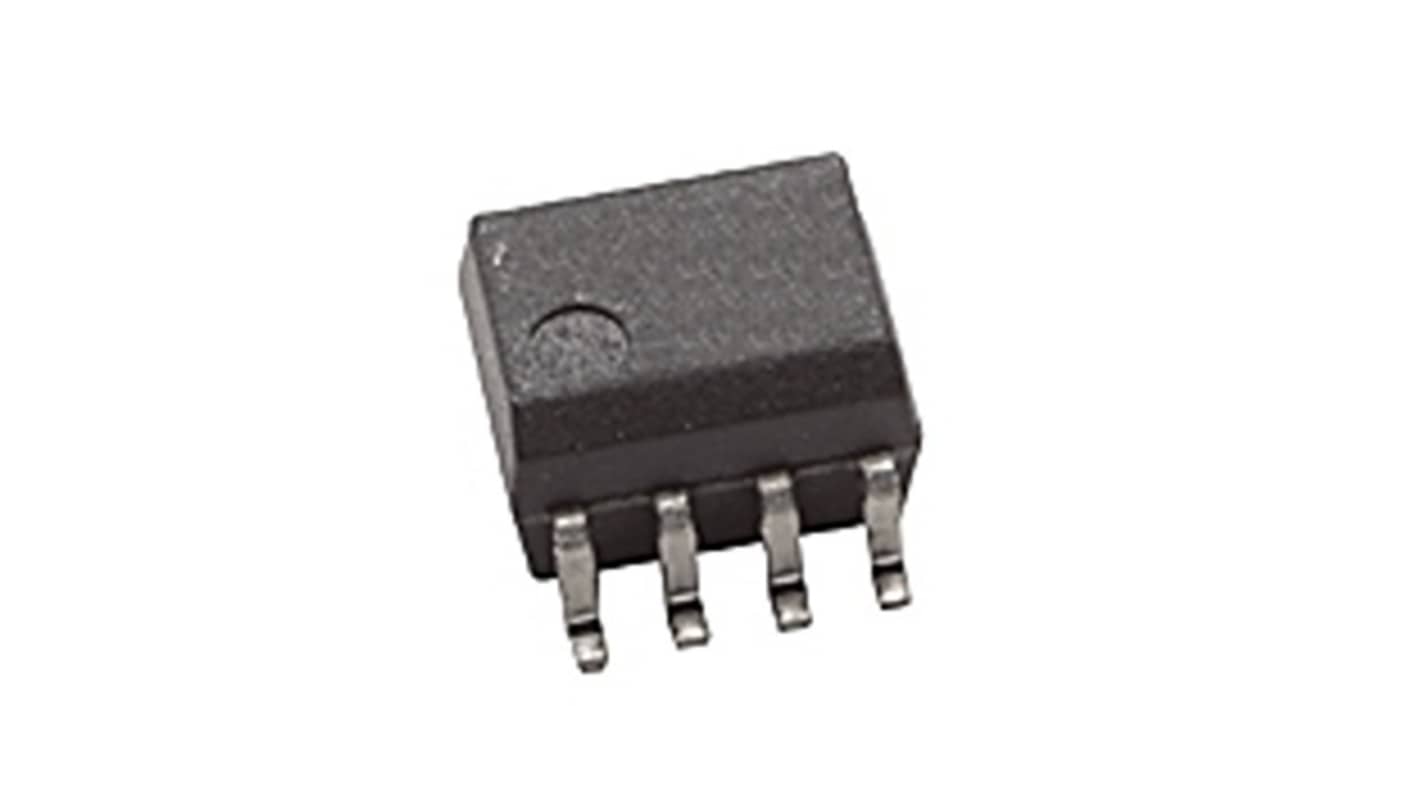

Broadcom HCPL-0201-500E AC Input Optocoupler, Surface, 8-Pin Tubular
- RS stock no.:
- 242-545
- Mfr. Part No.:
- HCPL-0201-500E
- Manufacturer:
- Broadcom
Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 2 units)*
R 120,82
(exc. VAT)
R 138,94
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 2,858 unit(s) shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 18 | R 60.41 | R 120.82 |
| 20 - 198 | R 58.90 | R 117.80 |
| 200 - 998 | R 57.135 | R 114.27 |
| 1000 - 1998 | R 54.85 | R 109.70 |
| 2000 + | R 52.655 | R 105.31 |
*price indicative
- RS stock no.:
- 242-545
- Mfr. Part No.:
- HCPL-0201-500E
- Manufacturer:
- Broadcom
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Optocoupler | |
| Mount Type | Surface | |
| Maximum Forward Voltage | 1.7V | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | Tubular | |
| Input Current Type | AC | |
| Typical Rise Time | 30ns | |
| Maximum Input Current | 10mA | |
| Isolation Voltage | 3750Vrms | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL 1577, IEC/EN/DIN EN 60747-5-5, CSA | |
| Typical Fall Time | 7ns | |
| Series | HC | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Optocoupler | ||
Mount Type Surface | ||
Maximum Forward Voltage 1.7V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type Tubular | ||
Input Current Type AC | ||
Typical Rise Time 30ns | ||
Maximum Input Current 10mA | ||
Isolation Voltage 3750Vrms | ||
Logic Output Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL 1577, IEC/EN/DIN EN 60747-5-5, CSA | ||
Typical Fall Time 7ns | ||
Series HC | ||
Automotive Standard No | ||
The Broadcom Optocoupler is an optically-coupled logic gate. It contains an GaAsP LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logic-compatible waveforms, illuminating the need for additional waveshaping.
Hysteresis
CSA Approved
Totem pole output (no pull-up resistor required)
