Fluke Multifunction Tester 100V, 1000 V, 250 V, 50 V, 500 V Earth Resistance Measurement With USB

RS stock no.:: 113-5130
Mfr. Part No.:: FLK-1663 UK
Manufacturer:: Fluke

Fluke Multifunction Tester 100V, 1000 V, 250 V, 50 V, 500 V Earth Resistance Measurement With USB

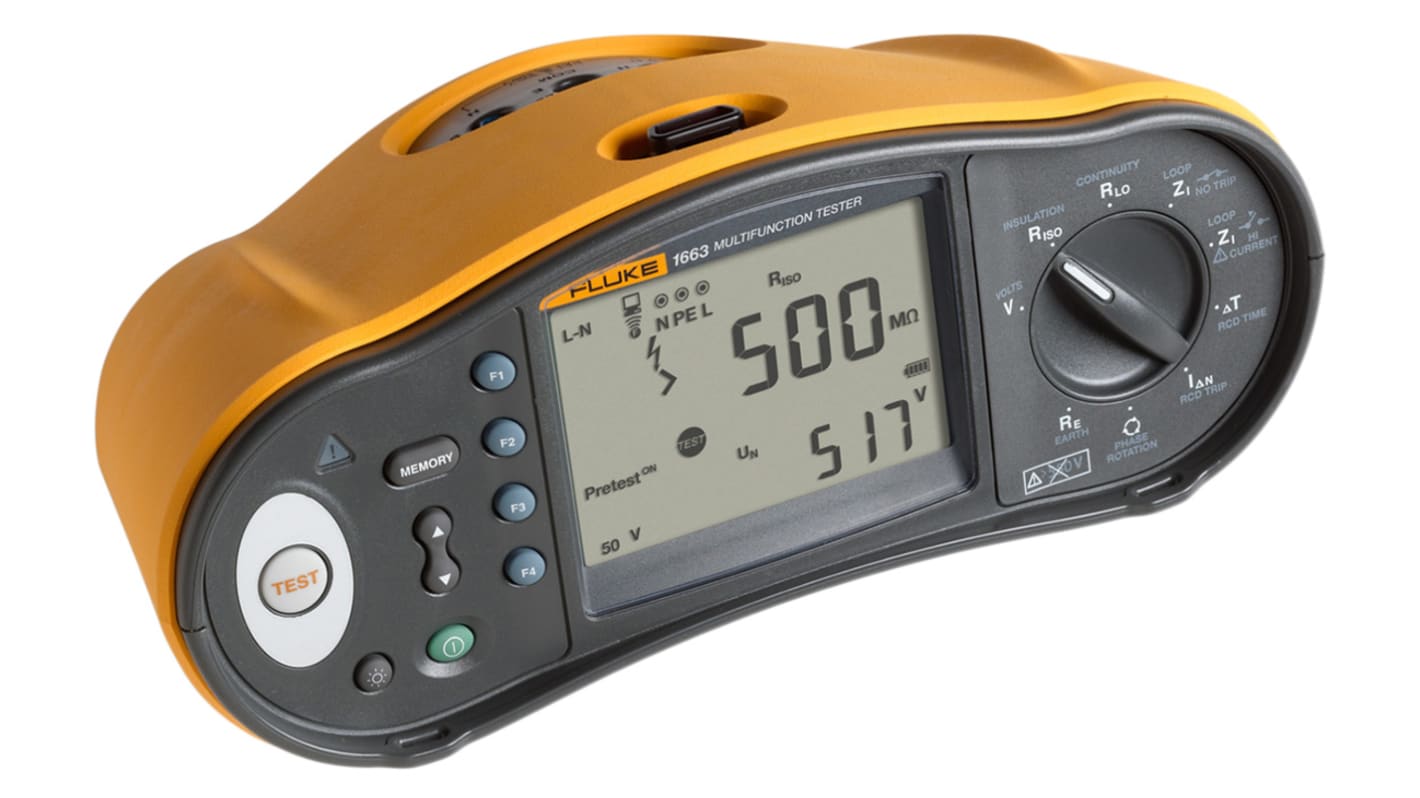

Image representative of range

Subtotal (1 unit)*

R 40 892,10

(exc. VAT)

R 47 025,92

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	R 40,892.10

*price indicative

RS stock no.:: 113-5130
Mfr. Part No.:: FLK-1663 UK
Manufacturer:: Fluke

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Multifunction Tester
	Loop Impedance Test Type	Phase to Earth, Phase to Neutral
	Automatic RCD Test	Yes
	RCD Ramp Test	Yes
	Non-Tripping	No
	Insulation Test Voltage	100, 1000, 250, 50, 500V
	Maximum Voltage Measurement	500V ac/dc
	Test Type	Line, Short Circuit Current
	Earth Resistance Measurement	Yes
	Downloadable Data	Yes
	Interface Type	USB
	Continuity Test Current	10mA
	RCD Test Type	A/F, B/B+, Type G, Type S
	Length	100mm
	Remote Switch Mode	Yes
	Width	250mm
	Weight	1.3kg
	Height	125mm
	IP Rating	IP40
	Test Standards	IEC 60364
	Minimum Continuity Resistance	20Ω
	Plug Type	UK
	Power Source	Battery
	Safety Category Voltage	300, 500V
	Safety Category Level	CAT III, CAT IV
	Battery Type	AA
	Maximum Continuity Resistance	2000Ω

	Select all
	Brand Fluke
	Product Type Multifunction Tester
	Loop Impedance Test Type Phase to Earth, Phase to Neutral
	Automatic RCD Test Yes
	RCD Ramp Test Yes
	Non-Tripping No
	Insulation Test Voltage 100, 1000, 250, 50, 500V
	Maximum Voltage Measurement 500V ac/dc
	Test Type Line, Short Circuit Current
	Earth Resistance Measurement Yes
	Downloadable Data Yes
	Interface Type USB
	Continuity Test Current 10mA
	RCD Test Type A/F, B/B+, Type G, Type S
	Length 100mm
	Remote Switch Mode Yes
	Width 250mm
	Weight 1.3kg
	Height 125mm
	IP Rating IP40
	Test Standards IEC 60364
	Minimum Continuity Resistance 20Ω
	Plug Type UK
	Power Source Battery
	Safety Category Voltage 300, 500V
	Safety Category Level CAT III, CAT IV
	Battery Type AA
	Maximum Continuity Resistance 2000Ω

Exempt

COO (Country of Origin):: GB

FLUKE 1663 Multifunction Tester, 1.5V AA Battery Powered, Z Maximum Memory - 1660 Series

For safe installation and easy maintenance of industrial equipment, reach for the Fluke 1663 multifunction tester. It checks the electrical characteristics of your circuits and comes with probes and test leads to make it an all-in-one tool for measurement in different network types. When you're carrying out residual current and loop tests, its ON/OFF switchable auto start feature ensures that there are no shocking surprises during operation. For convenience, integrated USB and infra-red features make it easy to store measured values on your computer or mobile device.

Fluke 1663 is part of the 1660 Series and can verify the safety of electrical installations in domestic, commercial, and industrial applications. They ensure that fixed wiring is safe and correctly installed to meet the requirements of IEC 60364 and all relevant local standards.

Options in the Fluke 1660 series include:

Fluke 1662 – RS 113-5128

Fluke 1663 – RS 113-5130

Fluke 1664 FC – RS 113-5131

The Fluke 1663 is Ideal for trouble shooting problems. Containing Advanced measurement capability yet simple and easy to use.

Features & Benefits

• Illuminated display makes it easy to see measured values in dark spots

• Light weight of 1.3kg makes it easy to carry in your toolkit

• Comes with a hard case for safe storage

• Integrated heavy-duty single input line cord prevents failures and boosts safety

• Continuity at L-N, N-PE inputs

• Tests smooth dc sensitive RCDs (Type B)

• Tests earth resistance, voltage and frequency

• Tests voltages 50V, 100V, 250V, 500V and 1000V

• 6 mA RDC-DD testing for EV charging stations

• Safety rated CAT III 500V, CAT IV 300V

• On/Off switchable auto-start for RCD and looptest

• Z max memory

• Heavy duty, single input line cord

• Compatible with TruTest™ (Fluke software designed to eliminate the hassle associated with traditional electrical system data management and reporting).

Applications

• Automotive industry

• Plant automation

• Construction sites

Is this tester finger-safe?

Yes, its IP40 rating shows that it withstands objects larger than 1mm in size, including your fingers.

How do I power this multifunction tester?

This measurement tool is powered by six AA batteries, so there's no need to worry about finding a wired connection to use it.

Fluke 1663/1664 FC Multifunction Tester includes a feature to test 6mA RDC-DD, in accordance with international standards IEC 62955 and

IEC 61851-1. The new 6mA testing functionality adds an important feature to our already comprehensive testing solutions for electric vehicle supply equipment (EVSE), making it easier for our customers to perform all necessary tests in one go.

Standards

IEC 60364
Fluke 1663/1664 FC Multifunction Tester includes a feature to test 6mA RDC-DD, in accordance with international standards IEC 62955 and
IEC 61851-1. The new 6mA testing functionality adds an important feature to our already comprehensive testing solutions for electric vehicle supply equipment (EVSE), making it easier for our customers to perform all necessary tests in one go.

Supplied with

The Fluke 1663 comes with 6 x AA (LR6) cell batteries, CI600 hard carrying case, zero adapter, heavy-duty mains cord, test lead set, padded carrying/waist strap, quick reference guide, TP165X remote control probe & lead set (FTP used probes - UK only) and User's manual on CD-ROM.
