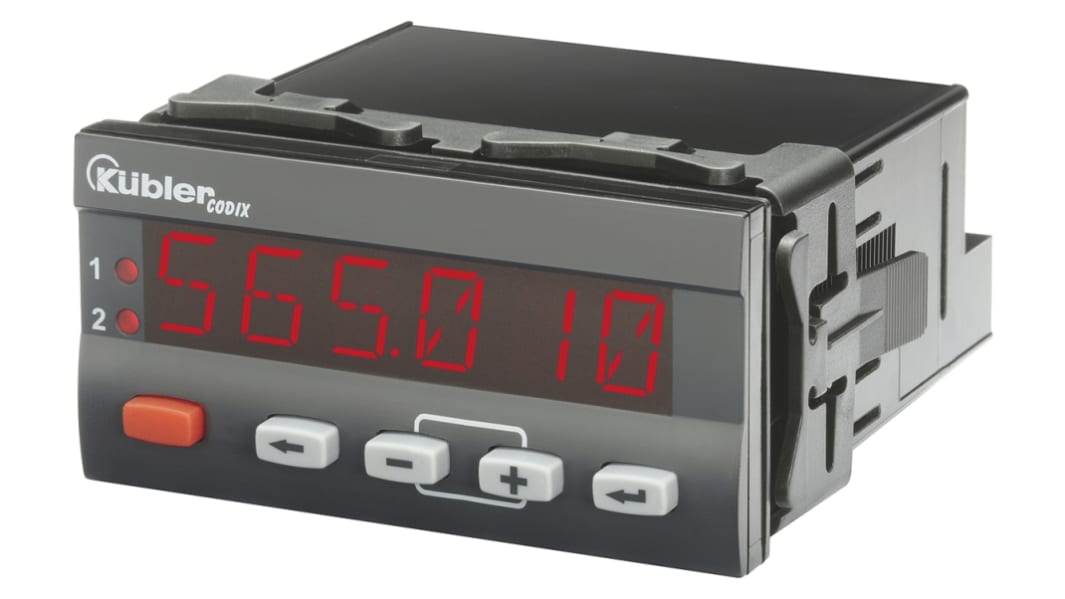

Kübler CODIX 565 LED Digital Panel Multi-Function Meter for Current, 45mm x 92mm

The process controller Codix 565 with totaliser function displays V and mA analogue input signals in high resolution. In addition it can monitor and control 2 limit values.
These fast displays set new standards when it comes to user friendliness. Their easy-to-read 14-segment LED display, easy-to- understand running help texts and a practical quick-start guide eliminate the need to wade through time-consuming full instruction manuals.

6-digit display, 14-segment LED, 14 mm high
Simple programming via 4 keys on the front
One front key as well as 2 additional inputs can be programmed for specific applications
Sampling rate of 10 readings per second
Time-controlled totaliser function for totalising the measured values. Can be reset separately
MIN/MAX memory function, individually resettable
Customer-specific characteristic (linearization) curve via 12 control points for all measurement signal inputs
2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function for current measured or totaliser values
Inputs and outputs galvanically isolated
Digital filter (first-order) for smoothing display fluctuations with unstable input signals
Wide range of supply voltage 10 → 30 Vdc/90 → 260 Vac
Wide input range: 0/4-20mA, 0/2-10 Vdc, +/-10V

The Kubler process controller is enabled with a totaliser function that displays voltage and current analogue input signals in high resolution. Also, it can monitor and control 2 limit values. It has an easy-to-read, 6-digit 14-segment, LED display

Simple programming via 4 keys on the front
Sampling rate of 10 readings per second
Power supply voltage rating is 10VDC to 30VDC
1 front key, as well as 2 additional inputs can be programmed for specific applications
Customer-specific characteristic (linearization) curve via 12 control points for all measurement signal inputs
Minimum/maximum memory function, individually resettable
2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function for current
Display range is -199999 to 999999, with leading zero blanking
Inputs and outputs are galvanically isolated
Digital filter (first-order) for smoothing display fluctuation with unstable input signals
Tare function
Cut-out height of 45mm and width of 92mm and depth of 90.5mm
Operating temperature ranges between -20°C and 65°C

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
cRUus certified
