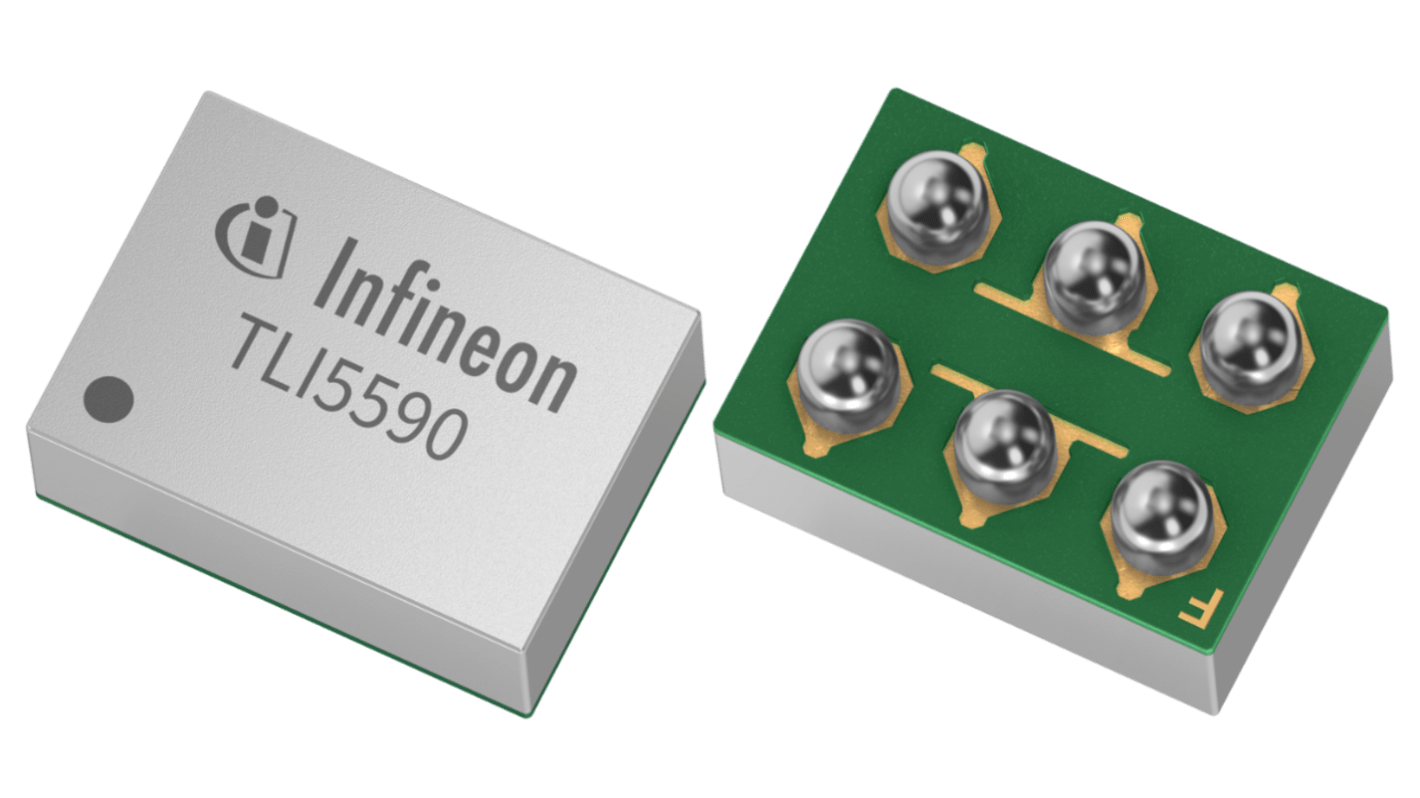

Infineon Surface Mount Position Sensor, SG-WFWLB-6-3, Analogue, 6-Pin

The Infineon Advanced two channel ratio metric gradiometer designed for high precision length measurement in various applications. It utilises tunnelling magneto resistance technology to deliver differentiated sine and cosine output signals. The sensor operates across an extensive temperature range, making it suitable for demanding industrial and consumer environments. Its compact design, realised in a wafer level package, ensures optimal performance while occupying minimal PCB space. Its advanced features empower designers to innovate while ensuring end user satisfaction.

Two discrete linearised TMR bridges enhance sensitivity
Differential output signals for precise measurements
Ultra small form factor for compact integration
Definable magnetic field output for versatility
Ratio metric output for accurate signal scaling
Ideal for high accuracy consumer and industrial needs
Robust solution for linear and angular position sensing
