ams OSRAM 1 Axis Surface Position Sensor -0.3 V 6.1V, I2C, WLCSP, 15-Pin
- RS stock no.:
- 232-9694
- Mfr. Part No.:
- AS5600L-AWLM
- Manufacturer:
- ams OSRAM

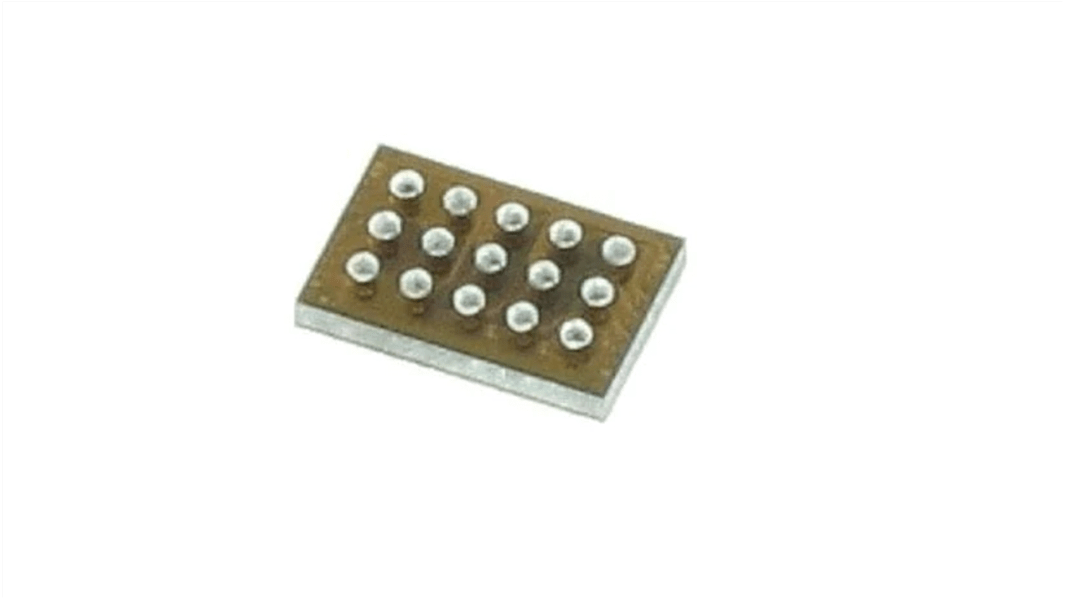

Image representative of range
Subtotal (1 reel of 1000 units)*
R 26 799,00
(exc. VAT)
R 30 819,00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | R 26.799 | R 26,799.00 |
*price indicative
- RS stock no.:
- 232-9694
- Mfr. Part No.:
- AS5600L-AWLM
- Manufacturer:
- ams OSRAM
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | Position Sensor | |
| Sensor Type | Position Sensor | |
| Number of Axis | 1 | |
| Technology | Analogue | |
| Mount Type | Surface | |
| Interface Type | I2C | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 6.1V | |
| Package Type | WLCSP | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Pin Count | 15 | |
| Length | 4.9mm | |
| Standards/Approvals | No | |
| Height | 1.75mm | |
| Series | AS5600L | |
| Supply Current | 6.4mA | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type Position Sensor | ||
Sensor Type Position Sensor | ||
Number of Axis 1 | ||
Technology Analogue | ||
Mount Type Surface | ||
Interface Type I2C | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 6.1V | ||
Package Type WLCSP | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Pin Count 15 | ||
Length 4.9mm | ||
Standards/Approvals No | ||
Height 1.75mm | ||
Series AS5600L | ||
Supply Current 6.4mA | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- AT
The ams AS5600L series is an easy to program magnetic rotary position sensor with a high-resolution 12-bit I2C or PWM output. This contactless system measures the absolute angle of a diametric magnetized on-axis magnet. This AS5600L is designed for contactless potentiometer applications and its robust design eliminates the influence of any homogenous external stray magnetic fields.
Contactless magnetic angle measurement
Easy programming of start and stop positions in 3-wire mode (no programmer needed) or over the I2C interface
User programmable I2C address
Maximum angle programmable from 18° up to 360°
Automatic magnet detection
Hig
