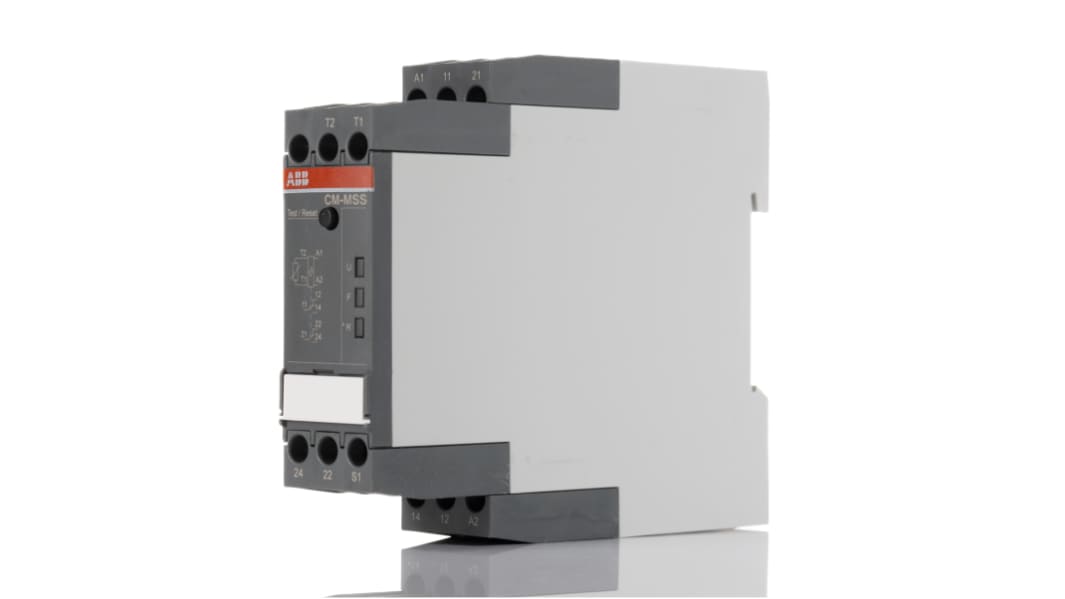

ABB Temperature Monitoring Relay, DPDT, DIN Rail
- RS stock no.:
- 876-5045
- Mfr. Part No.:
- 1SVR730712R1200 CM-MSS.41S
- Manufacturer:
- ABB
Subtotal (1 unit)**
R 3 468 91
(exc. VAT)
R 3 989 25
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Units | Per unit |
|---|---|
| 1 + | R 3 468,91 |
**price indicative
- RS stock no.:
- 876-5045
- Mfr. Part No.:
- 1SVR730712R1200 CM-MSS.41S
- Manufacturer:
- ABB
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Monitoring Application | Temperature | |
| Contact Configuration | DPDT | |
| Mounting Type | DIN Rail | |
| Time Delay | <100ms | |
| Frequency Sensing Range | 50 → 60Hz | |
| Temperature Sensitivity | Overtemperature, Winding Temperature | |
| Series | CM-MSS | |
| Hazardous Area Certification | ATEX | |
| Operating Temperature Range | -25 → +60°C | |
| Current Range | Maximum of 3.7mA | |
| Dimensions | 103.7 x 22.5 x 85.6mm | |
| Width | 22.5mm | |
| Minimum Frequency Sensed | 50Hz | |
| Length | 103.7mm | |
| Height | 85.6mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -25°C | |
| Number of Poles | 1 | |
| Standards Met | UL | |
| Special Features | Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit | |
| Terminal Type | Screw | |
Select all | ||
|---|---|---|
Brand ABB | ||
Monitoring Application Temperature | ||
Contact Configuration DPDT | ||
Mounting Type DIN Rail | ||
Time Delay <100ms | ||
Frequency Sensing Range 50 → 60Hz | ||
Temperature Sensitivity Overtemperature, Winding Temperature | ||
Series CM-MSS | ||
Hazardous Area Certification ATEX | ||
Operating Temperature Range -25 → +60°C | ||
Current Range Maximum of 3.7mA | ||
Dimensions 103.7 x 22.5 x 85.6mm | ||
Width 22.5mm | ||
Minimum Frequency Sensed 50Hz | ||
Length 103.7mm | ||
Height 85.6mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
Number of Poles 1 | ||
Standards Met UL | ||
Special Features Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit | ||
Terminal Type Screw | ||
