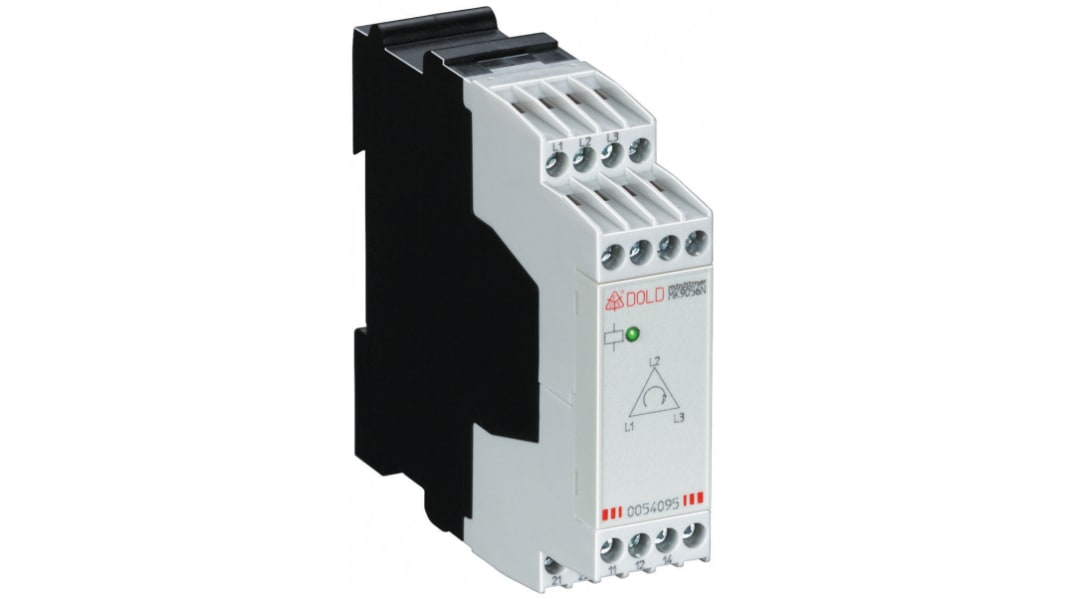

    Dold Phase Monitoring Relay, 3 Phase, DPDT, DIN Rail

    RS stock no.:
    465-0671
    Mfr. Part No.:
    MK9056N.12 AC50/60Hz 380-500V
    Manufacturer:
    Dold
    Dold
    View all Monitoring Relays
    3 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
    18 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
    Add to Basket
    units

    Not Available for premium delivery

    Added

    Price (Excl VAT) Each

    R 3,069.03

    (exc. VAT)

    R 3,529.38

    (inc. VAT)

    unitsPer unit
    1 +R 3,069.03
    RS stock no.:
    465-0671
    Mfr. Part No.:
    MK9056N.12 AC50/60Hz 380-500V
    Manufacturer:
    Dold
    COO (Country of Origin):
    DE

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    MK 9056N - Phase sequence relay


    Detects phase sequence errors
    Output contact 2 changeovers
    Overall width: 22.5 mm

    The MK 9056N monitors compliance with the phase sequence L1-L2-L3 in three-phase current networks.

    Standards

      IEC/EN 60 255, DIN VDE 0435-303

    Approvals

      CE


    Phase Sequence/Failure Relays


    Monitoring of 3 phase supplies
    Orange housing manufactured to DIN 43 880
    DIN rail mount

    Specification

    AttributeValue
    Monitoring ApplicationPhase
    Electrical Phase3
    Contact ConfigurationDPDT
    Mounting TypeDIN Rail
    Phase SensitivityPhase Sequence
    Time Delay<50ms
    SeriesMK 9056N
    Operating Temperature Range+60°C
    Terminal TypeScrew
    Minimum Operating Temperature-20°C
    Width22.5mm
    Maximum Operating Temperature+60°C
    Dimensions97 x 22.5 x 90mm
    Height90mm
    Length97mm
