Name: Broyce Control Voltage Monitoring Relay, SPDT, Maximum of 230V ac
Brand: Broyce Control
SKU: 361-1681
Price: 1713.17 ZAR
Availability: Discontinued

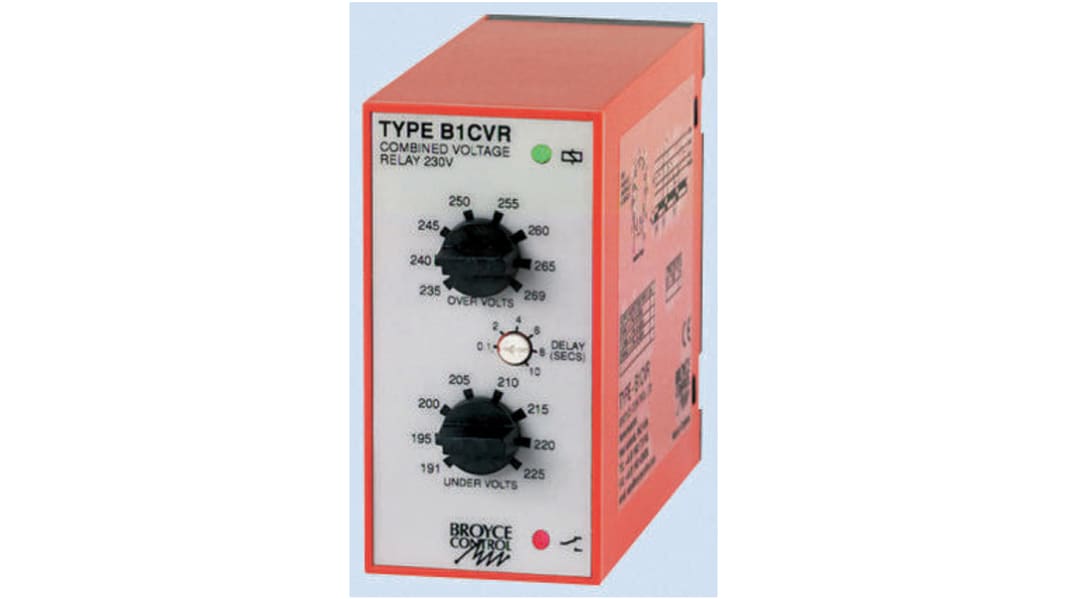

B1CVR Under/Over-Voltage plus Time Delay Relay

Detects under and over-voltage condition
Adjustment for upper and lower trip levels
Monitors own supply
Time delay (from fault) with adjustable setting
"Power On Delay" (Td): 2s
1 x SPDT relay output 10A
Rugged 11-pin plug-in housing
Dimensions: H78 x W45 x D99mm

Broyce Monitor Relays

Relay controllers manufactured using flame retardant material to UL94 VO
Electrical life: ≥150 000 operations
Suitable for use within ambient temperature environments from -20 to +60°C (except stock no. 361-1710 and 361-1681 which are suitable from -20 to +50°C)

Note

Output relay contact rating specified at 250Vac

Select all	Attribute	Value
	Brand	Broyce Control
	Monitoring Application	Voltage
	Voltage Sensing Range	Maximum of 230V ac
	Contact Configuration	SPDT
	Voltage Sensitivity	Overvoltage, Undervoltage
	Time Delay	0.1 → 10s
	Width	40mm
	Maximum Operating Temperature	+50°C
	Dimensions	92 x 40 x 80mm
	Height	80mm
	Operating Temperature Range	-20 → +50°C
	Length	92mm
	Maximum Voltage Sensed	230V ac
	Minimum Operating Temperature	-20°C

	Select all
	Brand Broyce Control
	Monitoring Application Voltage
	Voltage Sensing Range Maximum of 230V ac
	Contact Configuration SPDT
	Voltage Sensitivity Overvoltage, Undervoltage
	Time Delay 0.1 → 10s
	Width 40mm
	Maximum Operating Temperature +50°C
	Dimensions 92 x 40 x 80mm
	Height 80mm
	Operating Temperature Range -20 → +50°C
	Length 92mm
	Maximum Voltage Sensed 230V ac
	Minimum Operating Temperature -20°C

Broyce Control Voltage Monitoring Relay, SPDT, Maximum of 230V ac

Alternative

B1CVR Under/Over-Voltage plus Time Delay Relay
