Phoenix Contact Monitoring Relay, 3 Phase 12 V dc
- RS stock no.:
- 241-6094
- Mfr. Part No.:
- 2903246
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
R 2 098,25
(exc. VAT)
R 2 412,99
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 03 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 2,098.25 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS stock no.:
- 241-6094
- Mfr. Part No.:
- 2903246
- Manufacturer:
- Phoenix Contact
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Function | Plug | |
| Switching Voltage | 11.5V | |
| Power Consumption | 0.5W | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 4A | |
| Supply DC Voltage | 12 V dc | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN 61000-6-3, IEC 61851-1, EN 61000-6-2 | |
| Width | 35.6mm | |
| Height | 90mm | |
| Series | EM-EV-CLR-12V | |
| Better World Claim | Renewable Energy Solution | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Function Plug | ||
Switching Voltage 11.5V | ||
Power Consumption 0.5W | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 4A | ||
Supply DC Voltage 12 V dc | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN 61000-6-3, IEC 61851-1, EN 61000-6-2 | ||
Width 35.6mm | ||
Height 90mm | ||
Series EM-EV-CLR-12V | ||
Better World Claim Renewable Energy Solution | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE

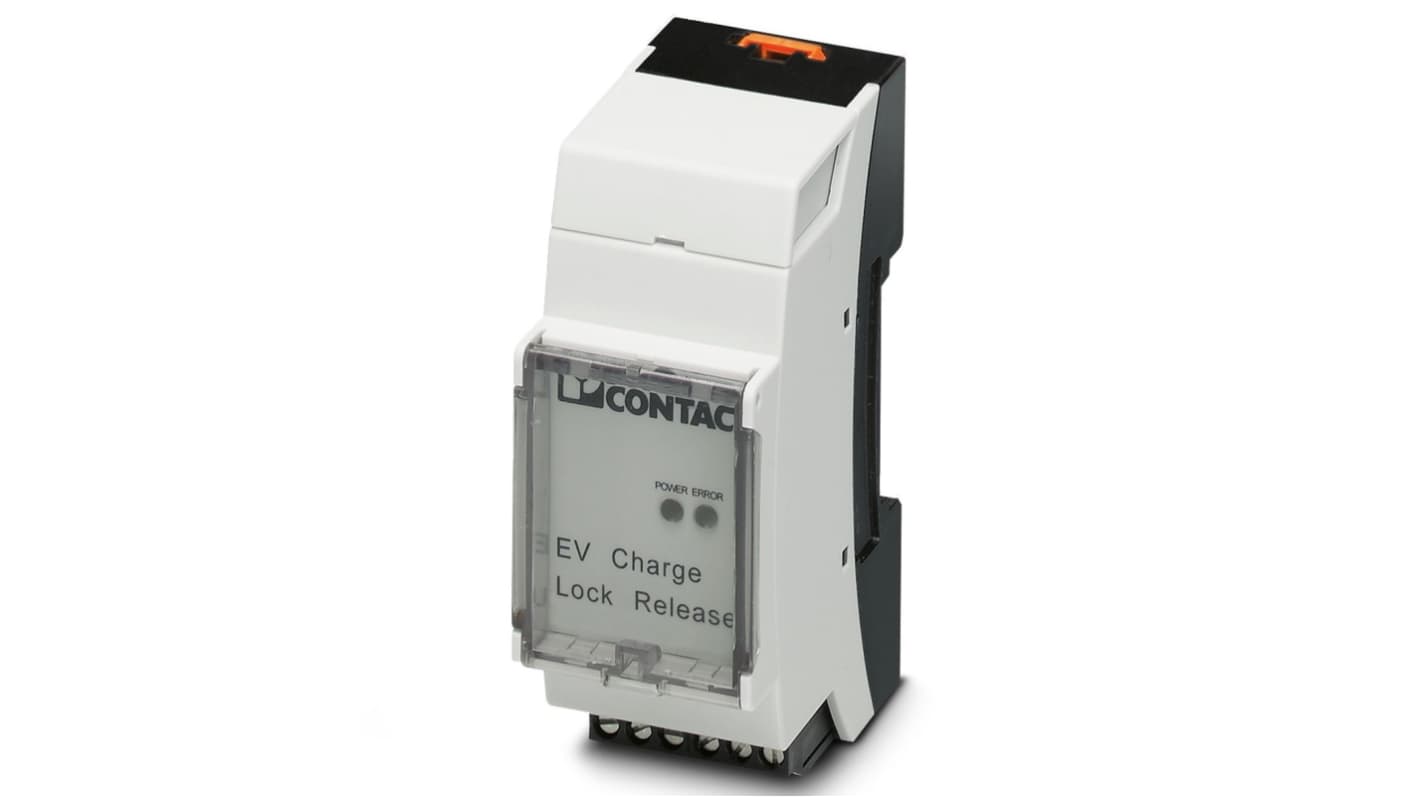

The Phoenix Contact's EV Charge lock release monitors the 12 V operating voltage of the electrically driven plug locking actuator, routes locking and unlocking signals, and sends an unlocking pulse to the actuator when the operating voltage fails.
Supply voltage 12 V DC ±5 %
Number of digital inputs 1
Frequency range 50 Hz to 60 Hz
Nominal power consumption < 0.5 W (No-load)
Nominal current IN approx. 5 mA
Nominal input voltage UN 12 V
Maximum current consumption 4 mA (in idle state)
Current carryi
