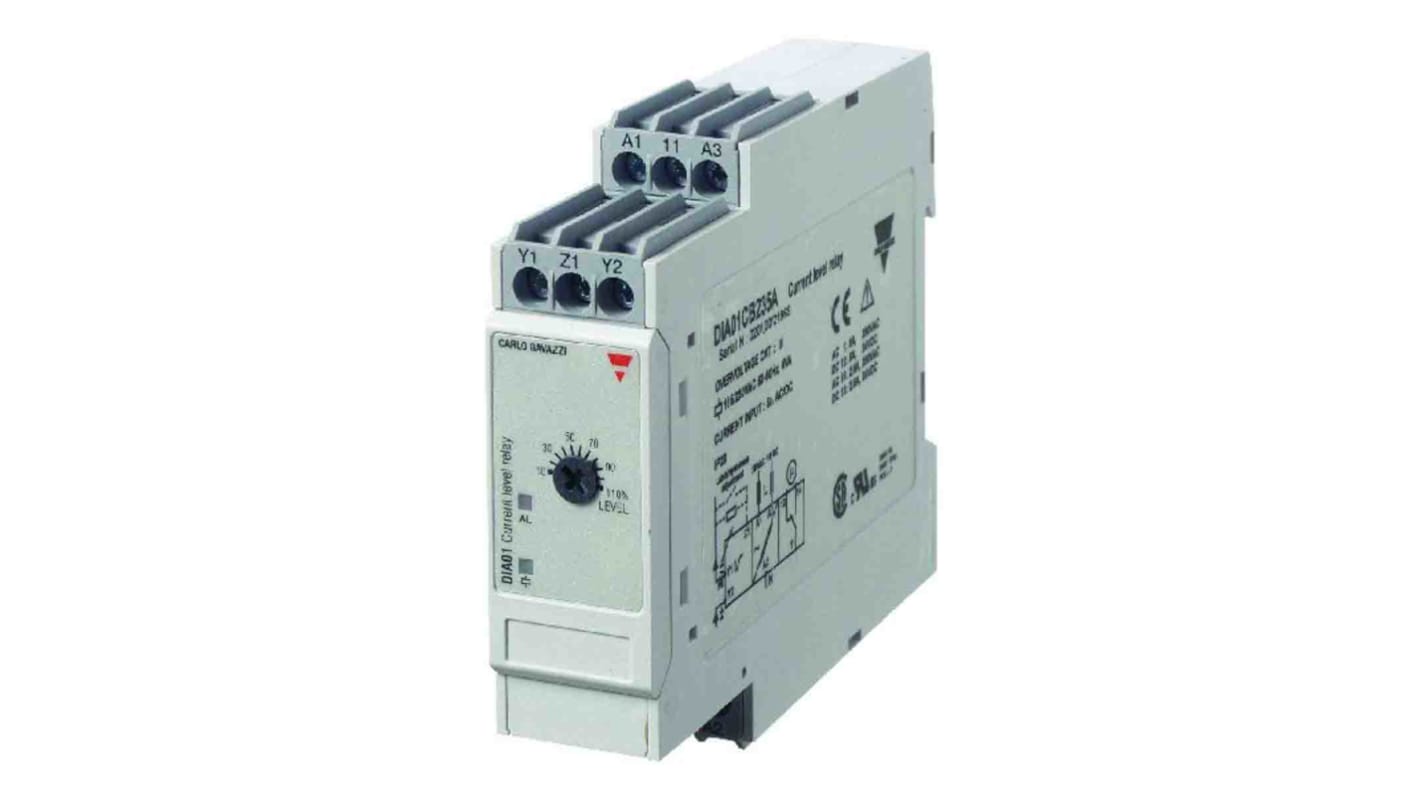

Carlo Gavazzi Monitoring Relay, 1 Phase, SPDT, DIN Rail, 0.5A to 5A, 115V ac, 230 V ac
- RS stock no.:
- 201-0819
- Mfr. Part No.:
- DIA01CB235A
- Manufacturer:
- Carlo Gavazzi
Subtotal (1 unit)*
R 2 716,67
(exc. VAT)
R 3 124,17
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 10 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 2,716.67 |
*price indicative
- RS stock no.:
- 201-0819
- Mfr. Part No.:
- DIA01CB235A
- Manufacturer:
- Carlo Gavazzi
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Minimum Current Sensed | 0.5A | |
| Maximum Current Sensed | 5A | |
| Power Consumption | 4VA | |
| Current Sensitivity | Overcurrent | |
| Terminal Type | Screw | |
| Supply AC Voltage | 115, 230V ac | |
| Relay Contact Current | 5A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 80mm | |
| Width | 22.5mm | |
| Length | 99.5mm | |
| Series | DIA01 | |
| Standards/Approvals | IEC, CE, UL, CSA, EMC, RoHS | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Minimum Current Sensed 0.5A | ||
Maximum Current Sensed 5A | ||
Power Consumption 4VA | ||
Current Sensitivity Overcurrent | ||
Terminal Type Screw | ||
Supply AC Voltage 115, 230V ac | ||
Relay Contact Current 5A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Height 80mm | ||
Width 22.5mm | ||
Length 99.5mm | ||
Series DIA01 | ||
Standards/Approvals IEC, CE, UL, CSA, EMC, RoHS | ||
- COO (Country of Origin):
- IT
The Carlo Gavazzi DIA01 precise AC/DC over current monitoring relay owing to the built-in latch function, the ON-position of the relay output can be maintained.
Current measured through internal shunt
Adjustable current limit on relative scale
Adjustable hysteresis
Programmable latching at set level
