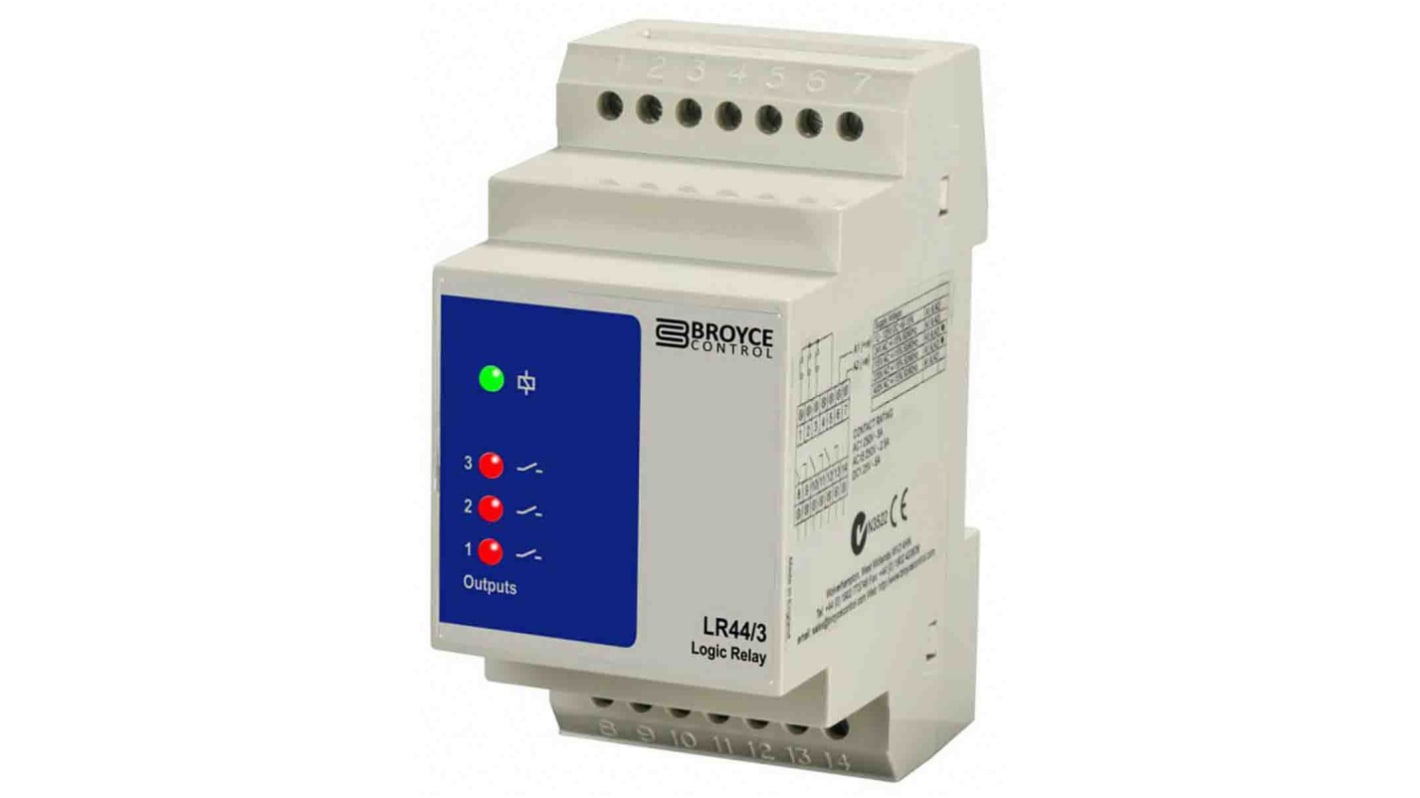

Broyce Control Monitoring Relay, 3PST, DIN Rail, 100V ac, 230 V ac 100 → 230 V dc
- RS stock no.:
- 188-3544
- Mfr. Part No.:
- LR44/3 100-230V AC/DC
- Manufacturer:
- Broyce Control
Subtotal (1 unit)*
R 1 346,70
(exc. VAT)
R 1 548,70
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 5 unit(s) shipping from 27 November 2026
- Plus 11 unit(s) shipping from 08 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 1,346.70 |
*price indicative
- RS stock no.:
- 188-3544
- Mfr. Part No.:
- LR44/3 100-230V AC/DC
- Manufacturer:
- Broyce Control
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broyce Control | |
| Product Type | Monitoring Relay | |
| Application | Voltage | |
| Function | Stillson Pipe | |
| Contact Configuration | 3PST | |
| Mount Type | DIN Rail | |
| Power Consumption | 3VA | |
| Switching Voltage | 250V | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | +60°C | |
| Supply AC Voltage | 100V ac, 230V ac | |
| Contact Current | 5A | |
| Supply DC Voltage | 100 → 230 V dc | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS Compliant, CE, Emissions:EN 61000-6-3, IEC, EMC:Immunity:EN 61000-6-2 | |
| Width | 44mm | |
| Height | 85mm | |
| Series | 44 | |
| Length | 63.5mm | |
| Select all | ||
|---|---|---|
Brand Broyce Control | ||
Product Type Monitoring Relay | ||
Application Voltage | ||
Function Stillson Pipe | ||
Contact Configuration 3PST | ||
Mount Type DIN Rail | ||
Power Consumption 3VA | ||
Switching Voltage 250V | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Minimum Operating Temperature +60°C | ||
Supply AC Voltage 100V ac, 230V ac | ||
Contact Current 5A | ||
Supply DC Voltage 100 → 230 V dc | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS Compliant, CE, Emissions:EN 61000-6-3, IEC, EMC:Immunity:EN 61000-6-2 | ||
Width 44mm | ||
Height 85mm | ||
Series 44 | ||
Length 63.5mm | ||
- COO (Country of Origin):
- GB
The product is designed to monitor the status of the externally wired contacts and operate/alternate the output relays in turn on each closure of the contact. A “help” function is included such that it allows the second and third relay to energize when the other contacts are closed. An auxiliary supply (required to power the unit) must be present for the product to function.
Logic Relay designed to balance wear between motors, compressors and generators
Monitors 3 external N.O. contacts
Isolated Auxiliary supply
3 x SPNO Relay outputs
44mm wide, DIN Rail mount
