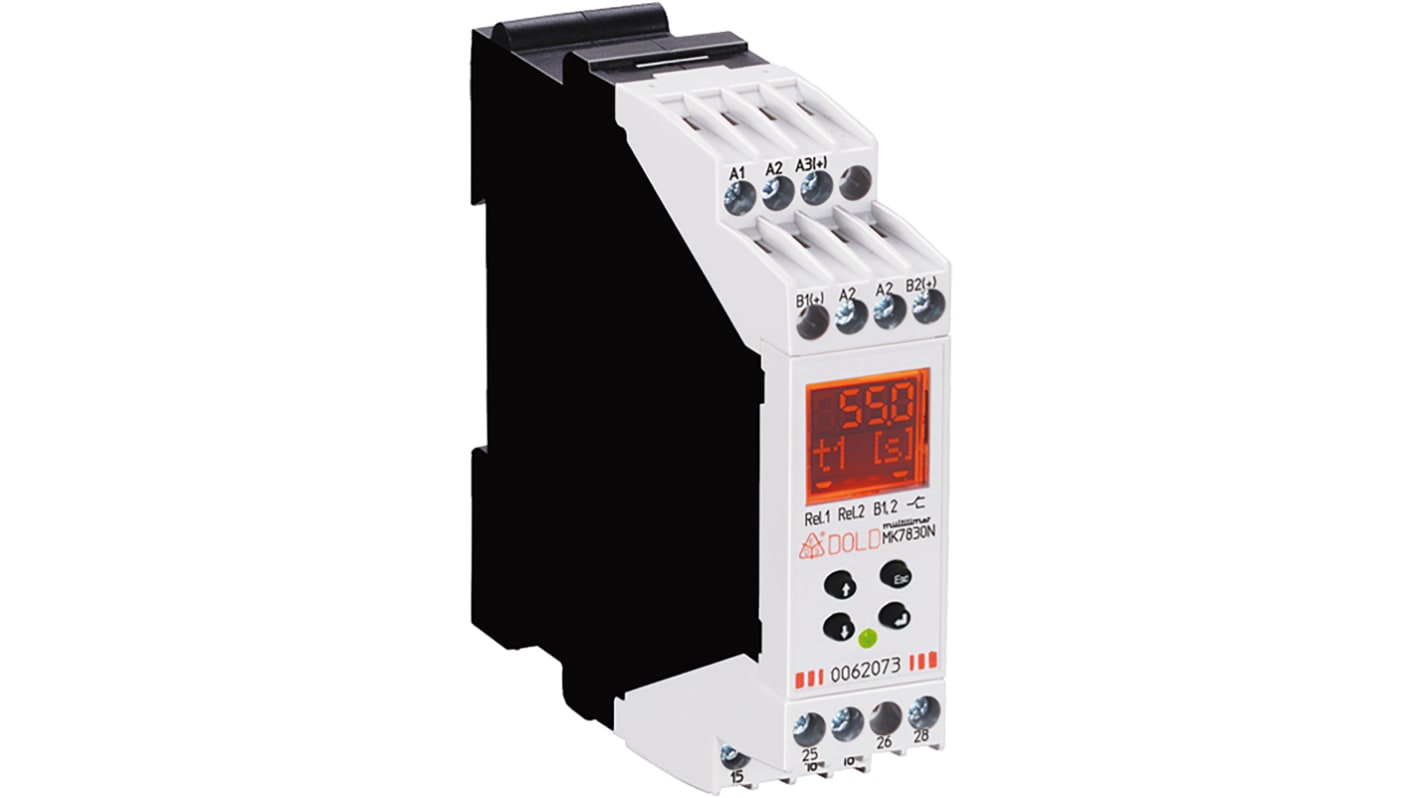

Dold Multifunction Monitoring Relay, DPDT, DIN Rail

View all Monitoring Relays

Subtotal (1 unit)*

R 4 892,33

(exc. VAT)

R 5 626,18

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 4,892.33

*price indicative

RS stock no.:
181-2806
Mfr. Part No.:
MK7830N.82PC AC/DC24V + AC230V 0,02s-9999h
Manufacturer:
Dold
Find similar products by selecting one or more attributes.
Select all

Brand

Dold

Monitoring Application

Multifunction

Contact Configuration

DPDT

Mounting Type

DIN Rail

Time Delay

0.02 s → 9999h

Series

MK7830N

Dimensions

99 x 22.5 x 111mm

Operating Temperature Range

+55°C

Length

99mm

Maximum Operating Temperature

+55°C

Height

111mm

Minimum Operating Temperature

0°C

Terminal Type

Screw

Width

22.5mm

COO (Country of Origin):
DE
Digital adjustable multifunction timer
Functions can be adjusted separately for each output relay
Off (OFF)
Instantaneous contact (ON)
On-delay (AV)
Fleeting on make (EW)
Delayed pulse with adjustable pulse length (IE)
Cyclic timer, start with impulse (TI)
Cyclic timer, start with break (TP)
Off-delay (RV)
Pulse forming function (IF)
Fleeting on break (AW)
Fleeting on make and break (EW / AW)
On and off delay (AV / RV)
2 changeover contacts
2 times separately adjustable from 0.02s to 9999h
LED-indicators option with pluggable terminal blocks for easy exchange of devices with screw terminals or with cage clamp terminals
