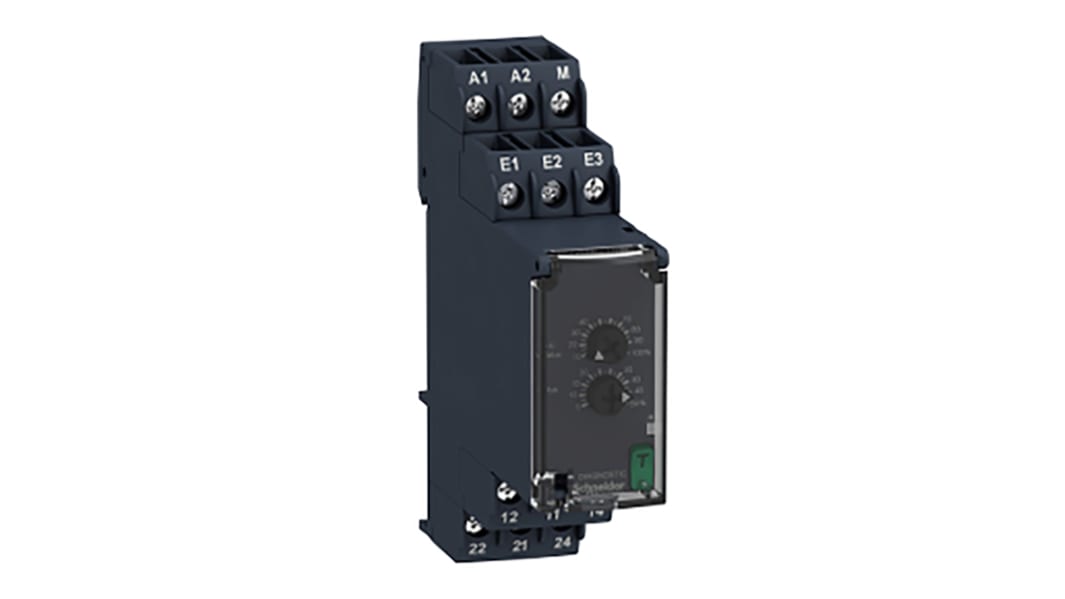

Schneider Electric Monitoring Relay, 1 Phase, 15/1500 V ac Monitor Range, DPDT, DIN Rail, 24V ac, 240 V ac 240 V ac

RS stock no.:: 179-9435
Mfr. Part No.:: RM22UA23MR
Manufacturer:: Schneider Electric

Schneider Electric Monitoring Relay, 1 Phase, 15/1500 V ac Monitor Range, DPDT, DIN Rail, 24V ac, 240 V ac 240 V ac

Subtotal (1 unit)*

R 3 373,73

(exc. VAT)

R 3 879,79

(inc. VAT)

FREE delivery for orders over R 1,500.00

Temporarily out of stock

Shipping from 29 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 3,373.73

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS stock no.:: 179-9435
Mfr. Part No.:: RM22UA23MR
Manufacturer:: Schneider Electric

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Monitoring Relay
	Electrical Phase	1
	Function	Overvoltage
	Contact Configuration	DPDT
	Mount Type	DIN Rail
	Switching Voltage	250V ac
	Power Consumption	3.5VA
	Terminal Type	Screw
	IP Rating	IP50, IP40, IP20
	Supply DC Voltage	240 V ac
	Contact Current	8A
	Supply AC Voltage	24, 240V ac
	Monitoring Voltage Range	15/1500 V ac
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Height	90mm
	Length	22.9mm
	Standards/Approvals	CCC, CE, IEC 60255-27, EAC, GL, RoHS, EN/IEC 60255-1, REACH
	Width	79.5mm
	Series	Harmony Control
	Better World Product	Yes

	Select all
	Brand Schneider Electric
	Product Type Monitoring Relay
	Electrical Phase 1
	Function Overvoltage
	Contact Configuration DPDT
	Mount Type DIN Rail
	Switching Voltage 250V ac
	Power Consumption 3.5VA
	Terminal Type Screw
	IP Rating IP50, IP40, IP20
	Supply DC Voltage 240 V ac
	Contact Current 8A
	Supply AC Voltage 24, 240V ac
	Monitoring Voltage Range 15/1500 V ac
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Height 90mm
	Length 22.9mm
	Standards/Approvals CCC, CE, IEC 60255-27, EAC, GL, RoHS, EN/IEC 60255-1, REACH
	Width 79.5mm
	Series Harmony Control
	Better World Product Yes

COO (Country of Origin):: ID

Zelio Control Relays monitor and detect abnormal operating conditions about phases, current, voltage, frequency, speed, or temperature

Overvoltage Control Relay 15v…500vac/Dc, 2 C/O

Schneider Electric Monitoring Relay, 1 Phase, 15/1500 V ac Monitor Range, DPDT, DIN Rail, 24V ac, 240 V ac 240 V ac
