Eaton Monitoring Relay, 1 Phase, 24/240 V ac Monitor Range, CO, DIN Rail, 24V ac, 240 V ac 240 V ac

RS stock no.:: 179-3554
Mfr. Part No.:: 184785 EMR6-VF600-A-1
Manufacturer:: Eaton

Eaton Monitoring Relay, 1 Phase, 24/240 V ac Monitor Range, CO, DIN Rail, 24V ac, 240 V ac 240 V ac

Subtotal (1 unit)*

R 5 822,29

(exc. VAT)

R 6 695,63

(inc. VAT)

FREE delivery for orders over R 1,500.00

Temporarily out of stock

Shipping from 16 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 5,822.29

*price indicative

RS stock no.:: 179-3554
Mfr. Part No.:: 184785 EMR6-VF600-A-1
Manufacturer:: Eaton

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Monitoring Relay
	Electrical Phase	1
	Contact Configuration	CO
	Mount Type	DIN Rail
	Power Consumption	2.6VA
	Terminal Type	Screw
	IP Rating	IP50, IP20
	Monitoring Voltage Range	24/240 V ac
	Supply AC Voltage	24, 240V ac
	Supply DC Voltage	240 V ac
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Length	109.5mm
	Width	22.5mm
	Standards/Approvals	REACH, RMRS, EAC, RoHS, CCC, CAN/CSA C22.2 No.14, UL 508, GL
	Series	EMR6
	Height	78mm

	Select all
	Brand Eaton
	Product Type Monitoring Relay
	Electrical Phase 1
	Contact Configuration CO
	Mount Type DIN Rail
	Power Consumption 2.6VA
	Terminal Type Screw
	IP Rating IP50, IP20
	Monitoring Voltage Range 24/240 V ac
	Supply AC Voltage 24, 240V ac
	Supply DC Voltage 240 V ac
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Length 109.5mm
	Width 22.5mm
	Standards/Approvals REACH, RMRS, EAC, RoHS, CCC, CAN/CSA C22.2 No.14, UL 508, GL
	Series EMR6
	Height 78mm

Datasheet

COO (Country of Origin):: DE

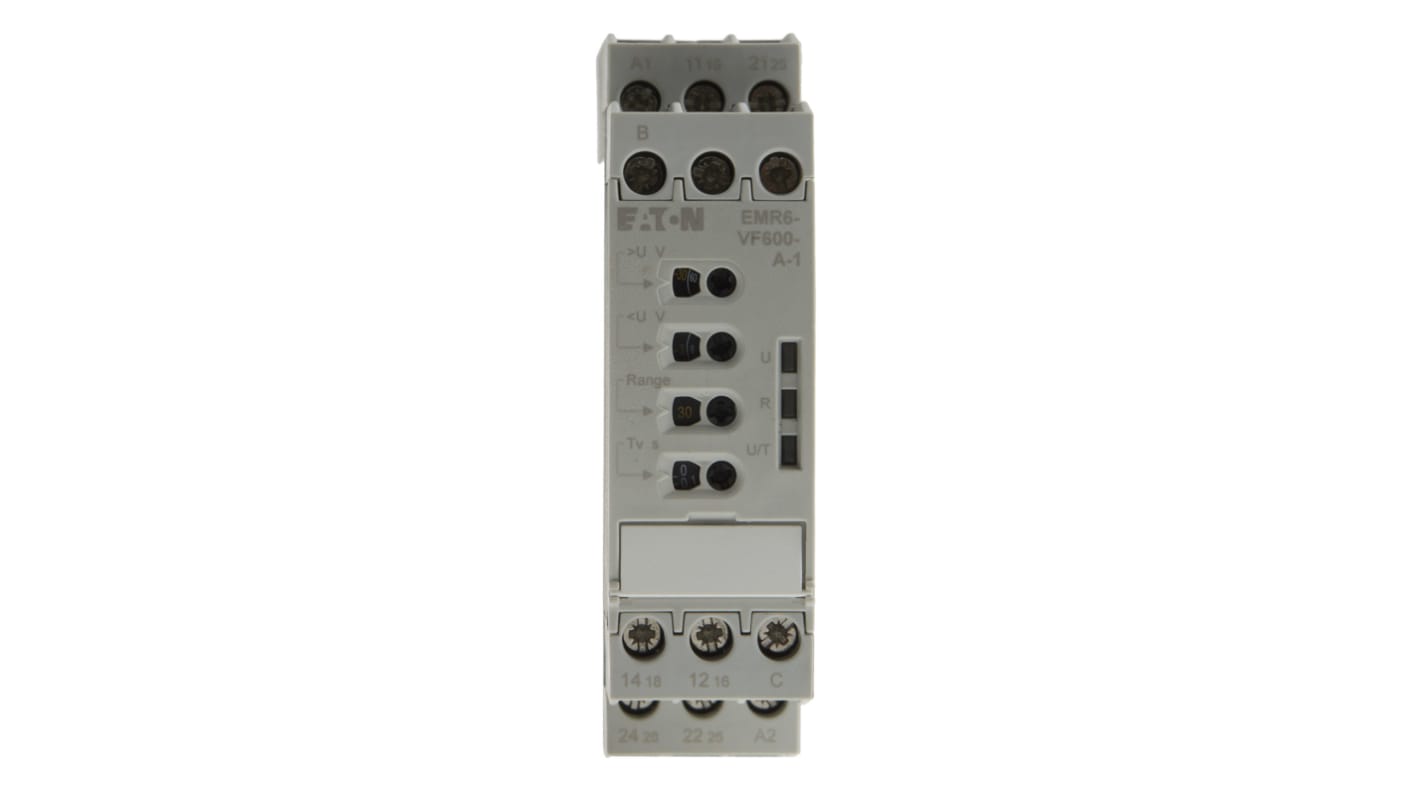

Eaton Voltage Monitoring Relay

The Eaton voltage monitoring relay is an ideal protection device for a wide range of switchgear applications. Monitoring a 3 phase power supply is very important to protect the electrical devices connected to the supply. Power fluctuations can seriously damage the devices. This relay is capable of monitoring functions related to the power supply like undervoltage and overvoltage. This relay is universally suitable for a large number of applications. It reduces inventory costs and saves time during the equipment selection process. Like any other Eaton relay, this monitoring relay guarantees minimum shutdown time, high efficiency and sustainable long life.

Features and Benefits

• Ambient temperature ranges between -25°C and 60°C

• Burst and surge protection

• Contact configuration: CO

• High shock resistance

• Immune to radiation

• LED status indicators

• Mechanical lifespan of 30M cycles

• Quick response time

• Weather protection

Applications

• Electric engineering

• Factory automation

• Light industrial environments

• Low-voltage switch technology

• Monitoring equipment

• process control engineering

• Residential facilities

Certifications

• CAN/CSA certified

• CCC approved

• EAC approved

• GL certified

• IP20 rating protection for terminals

• IP50 rating protection for enclosure

• RCM certified

• RMRS certified

• UL508 certified

Note

Eaton formerly known as Moeller
