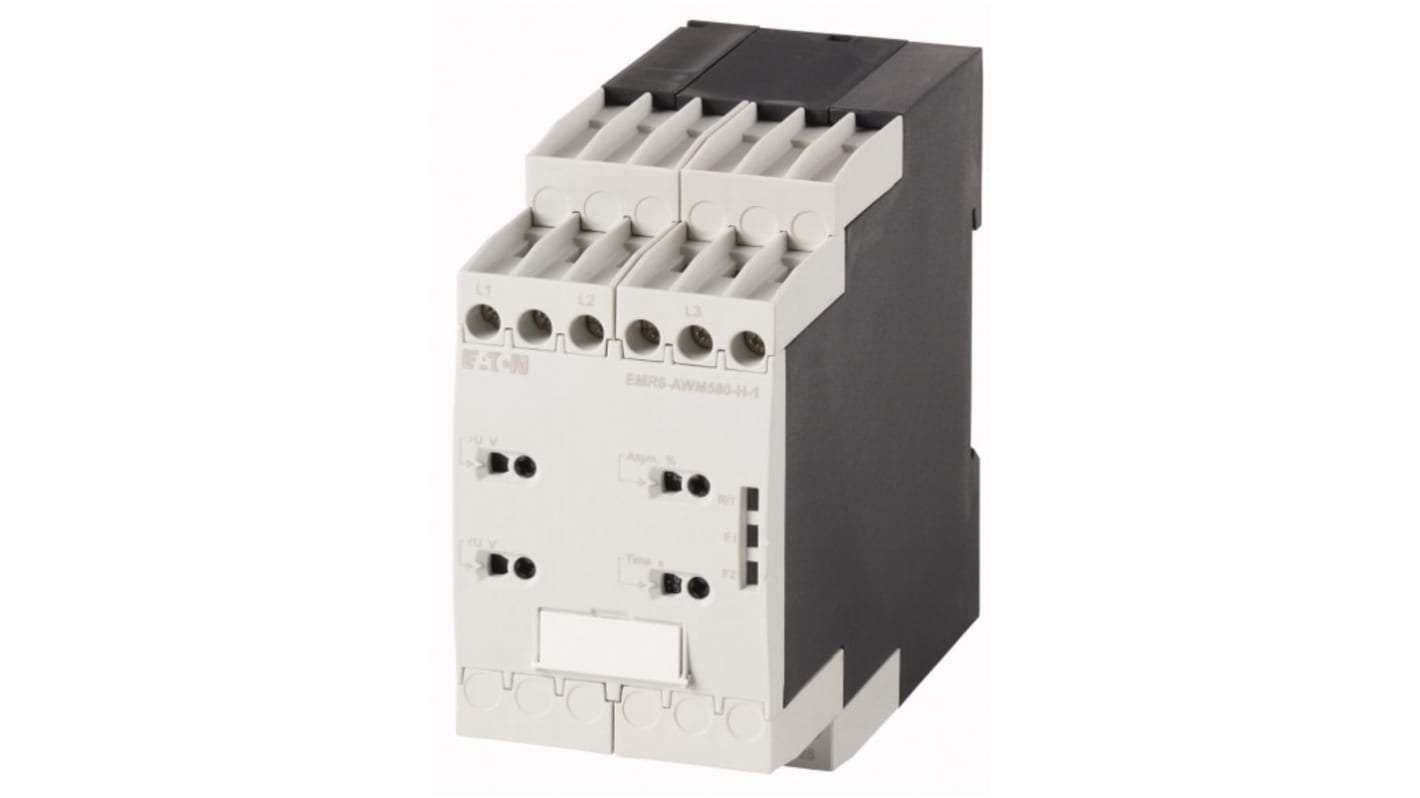

Eaton Monitoring Relay, 3 Phase, 350/580 V ac Monitor Range, 1 CO, Snapped, 350V ac, 580 V ac 0 V dc
- RS stock no.:
- 179-3531
- Mfr. Part No.:
- 184765 EMR6-AWM580-H-1
- Manufacturer:
- Eaton
Subtotal (1 unit)*
R 6 831,53
(exc. VAT)
R 7 856,26
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 6,831.53 |
*price indicative
- RS stock no.:
- 179-3531
- Mfr. Part No.:
- 184765 EMR6-AWM580-H-1
- Manufacturer:
- Eaton
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Function | Undervoltage Monitoring, Phase Failure Detection, Monitoring | |
| Contact Configuration | 1 CO | |
| Mount Type | Snapped | |
| Switching Voltage | 250V ac | |
| Power Consumption | 41VA | |
| Terminal Type | Screw | |
| IP Rating | IP50, IP20 | |
| Monitoring Voltage Range | 350/580 V ac | |
| Supply DC Voltage | 0 V dc | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 4A | |
| Supply AC Voltage | 350, 580V ac | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC, UL, GL, CSA, CCC | |
| Width | 45mm | |
| Series | EMR6 | |
| Height | 78mm | |
| Length | 109.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Function Undervoltage Monitoring, Phase Failure Detection, Monitoring | ||
Contact Configuration 1 CO | ||
Mount Type Snapped | ||
Switching Voltage 250V ac | ||
Power Consumption 41VA | ||
Terminal Type Screw | ||
IP Rating IP50, IP20 | ||
Monitoring Voltage Range 350/580 V ac | ||
Supply DC Voltage 0 V dc | ||
Minimum Operating Temperature -25°C | ||
Contact Current 4A | ||
Supply AC Voltage 350, 580V ac | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC, UL, GL, CSA, CCC | ||
Width 45mm | ||
Series EMR6 | ||
Height 78mm | ||
Length 109.5mm | ||
- COO (Country of Origin):
- DE
The EMR6 measuring and monitoring relays are designed for a wide range of switchgear applications. Thanks to their ability to monitor overloads, power fluctuations, phase sequences, machine temperatures and fill levels, the EMR6 relays protect machines and plants and help to prevent unscheduled downtime in production processes. The device has been approved for global use and can therefore be used to monitor plants reliably and seamlessly, anywhere in the world
Suitable for universal use, thanks to multi-voltage power supplies
Reduced machine downtime and early detection of possible failures during operation
The universal, multi-functional devices reduce inventory costs and save time during the equipment selection process
An expanded product range with additional functionalities
Relays for monitoring machine temperatures
Note
Eaton formerly known as Moeller
