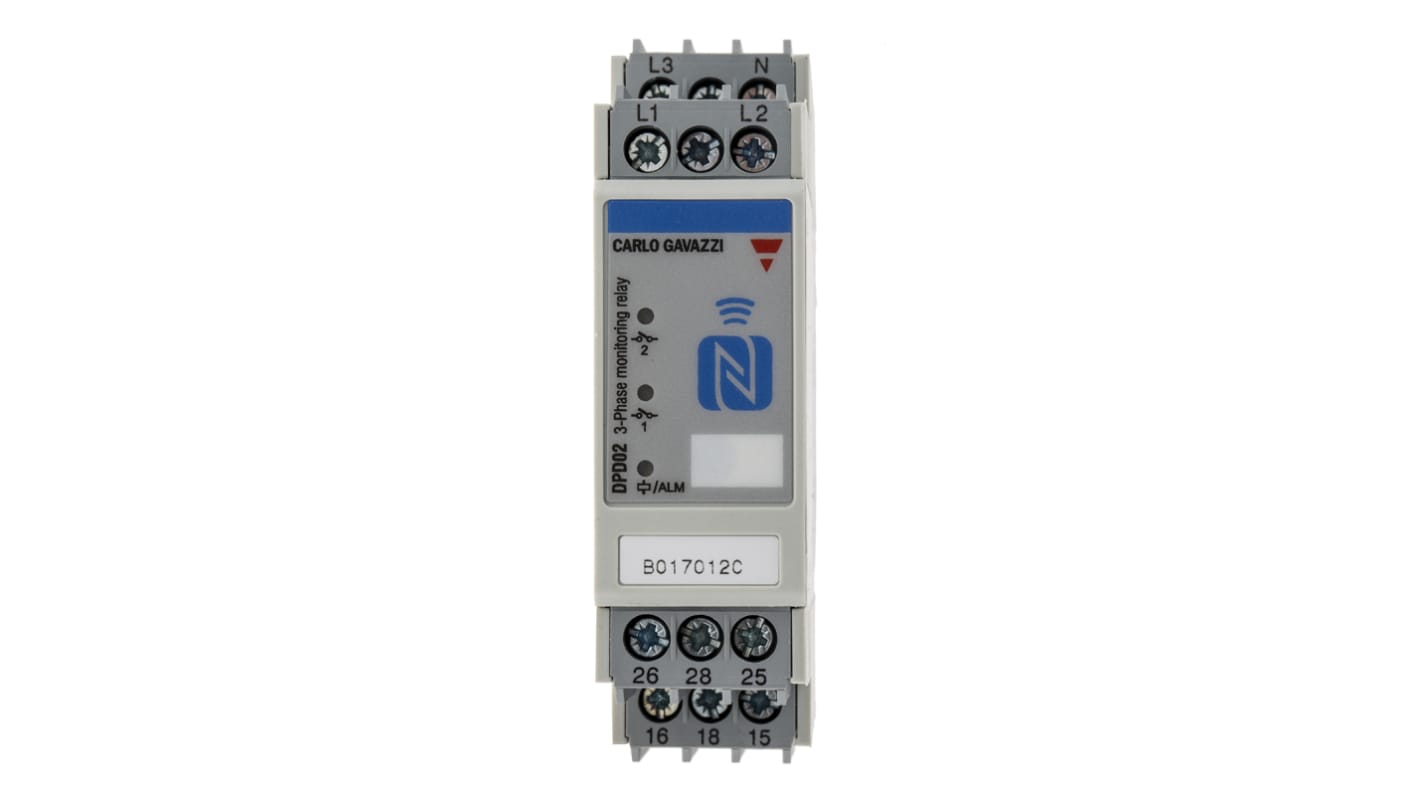

Carlo Gavazzi Frequency, Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 102 → 318V ac, DIN Rail
- RS stock no.:
- 165-1484
- Mfr. Part No.:
- DPD02DM44
- Manufacturer:
- Carlo Gavazzi
Subtotal (1 unit)**
R 3 922 07
(exc. VAT)
R 4 510 38
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Units | Per unit |
|---|---|
| 1 + | R 3 922,07 |
**price indicative
- RS stock no.:
- 165-1484
- Mfr. Part No.:
- DPD02DM44
- Manufacturer:
- Carlo Gavazzi
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Monitoring Application | Frequency, Phase, Voltage | |
| Electrical Phase | 3 | |
| Contact Configuration | SPDT | |
| Voltage Sensing Range | 102 → 318 V ac, 177 → 552V ac | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Phase Loss, Phase Presence, Phase Sequence | |
| Time Delay | 60s | |
| Frequency Sensing Range | 45 → 440Hz | |
| Series | DPD | |
| Frequency Sensitivity | Overfrequency, Underfrequency | |
| Maximum Frequency Sensed | 440Hz | |
| Length | 99.5mm | |
| Height | 84mm | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Minimum Voltage Sensed | 102 V ac, 177V ac | |
| Minimum Frequency Sensed | 45Hz | |
| Operating Temperature Range | +60°C | |
| Maximum Voltage Sensed | 318 V ac, 552V ac | |
| Minimum Operating Temperature | -20°C | |
| Width | 22.5mm | |
| Maximum Operating Temperature | +60°C | |
| Dimensions | 99.5 x 22.5 x 84mm | |
Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Monitoring Application Frequency, Phase, Voltage | ||
Electrical Phase 3 | ||
Contact Configuration SPDT | ||
Voltage Sensing Range 102 → 318 V ac, 177 → 552V ac | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Loss, Phase Presence, Phase Sequence | ||
Time Delay 60s | ||
Frequency Sensing Range 45 → 440Hz | ||
Series DPD | ||
Frequency Sensitivity Overfrequency, Underfrequency | ||
Maximum Frequency Sensed 440Hz | ||
Length 99.5mm | ||
Height 84mm | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Minimum Voltage Sensed 102 V ac, 177V ac | ||
Minimum Frequency Sensed 45Hz | ||
Operating Temperature Range +60°C | ||
Maximum Voltage Sensed 318 V ac, 552V ac | ||
Minimum Operating Temperature -20°C | ||
Width 22.5mm | ||
Maximum Operating Temperature +60°C | ||
Dimensions 99.5 x 22.5 x 84mm | ||
