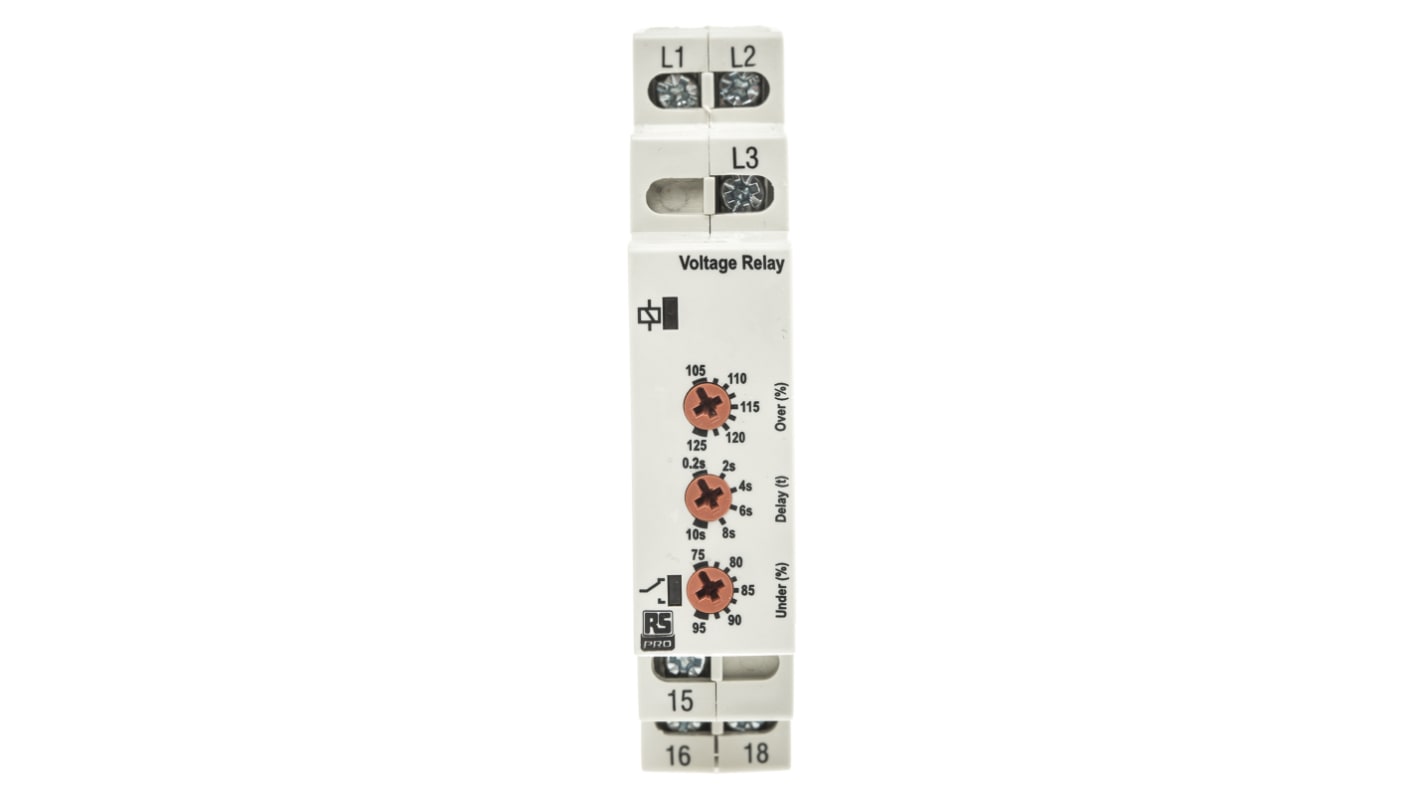

RS PRO Phase, Voltage Monitoring Relay, 3 Phase, SPDT, DIN Rail
- RS stock no.:
- 102-6137
- Manufacturer:
- RS PRO
Subtotal (1 unit)**
R 1 898 83
(exc. VAT)
R 2 183 65
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Units | Per unit |
|---|---|
| 1 + | R 1 898,83 |
**price indicative
- RS stock no.:
- 102-6137
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Monitoring Application | Phase, Voltage | |
| Electrical Phase | 3 | |
| Contact Configuration | SPDT | |
| Voltage Sensitivity | Overvoltage, Undervoltage | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Phase Failure, Phase Sequence | |
| Time Delay | 0.2 → 10s | |
| Frequency Sensing Range | 48 → 63Hz | |
| Series | L | |
| Number of Poles | 1 | |
| Special Features | 2 LEDs for the Indication of Operational States, Adjustment for Time Delay, Adjustment for Undervoltage Trip Level, Detects Incorrect Phase Sequence & Phase Loss, Measures Phase to Phase Voltages, Microprocessor Based Relay, Monitors Own Supply & Detects an Undervoltage Condition on One or more Phases, True RMS Monitoring | |
| Dimensions | 17.5 x 66.5 x 89mm | |
| Maximum Operating Temperature | +60°C | |
| Width | 17.5mm | |
| Operating Temperature Range | +60°C | |
| Length | 66.5mm | |
| Height | 89mm | |
| Minimum Operating Temperature | -20°C | |
| Terminal Type | Screw | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Monitoring Application Phase, Voltage | ||
Electrical Phase 3 | ||
Contact Configuration SPDT | ||
Voltage Sensitivity Overvoltage, Undervoltage | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Failure, Phase Sequence | ||
Time Delay 0.2 → 10s | ||
Frequency Sensing Range 48 → 63Hz | ||
Series L | ||
Number of Poles 1 | ||
Special Features 2 LEDs for the Indication of Operational States, Adjustment for Time Delay, Adjustment for Undervoltage Trip Level, Detects Incorrect Phase Sequence & Phase Loss, Measures Phase to Phase Voltages, Microprocessor Based Relay, Monitors Own Supply & Detects an Undervoltage Condition on One or more Phases, True RMS Monitoring | ||
Dimensions 17.5 x 66.5 x 89mm | ||
Maximum Operating Temperature +60°C | ||
Width 17.5mm | ||
Operating Temperature Range +60°C | ||
Length 66.5mm | ||
Height 89mm | ||
Minimum Operating Temperature -20°C | ||
Terminal Type Screw | ||
