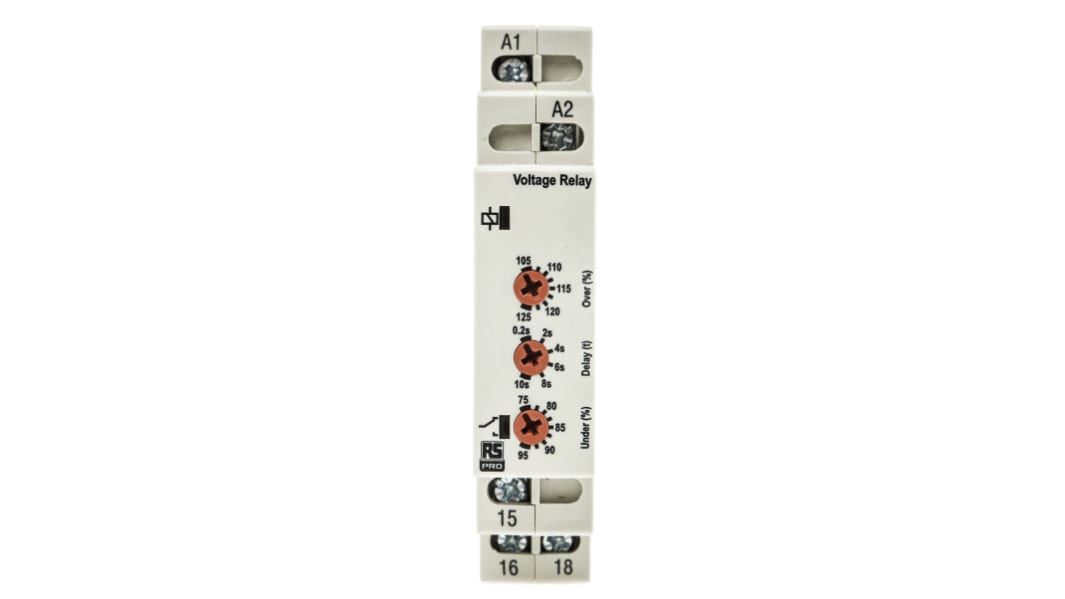

    RS PRO Voltage Monitoring Relay, 1 Phase, SPDT, DIN Rail

    Subtotal (1 unit)**

    R  1 441 28

    (exc. VAT)

    R  1 657 47

    (inc. VAT)

    Add to Basket
    Select or type quantity
    35 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time stock check
    Not Available for premium delivery
    Units
    Per unit
    1 +R 1 441,28

    **price indicative

    RS stock no.:
    102-6131
    Manufacturer:
    RS PRO
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    RS PRO

    Monitoring Application

    Voltage

    Electrical Phase

    1

    Contact Configuration

    SPDT

    Voltage Sensitivity

    Overvoltage, Undervoltage

    Mounting Type

    DIN Rail

    Time Delay

    0.2 → 10s

    Frequency Sensing Range

    48 → 63Hz

    Series

    L

    Height

    89mm

    Dimensions

    17.5 x 66.5 x 89mm

    Maximum Operating Temperature

    +60°C

    Width

    17.5mm

    Maximum Frequency Sensed

    63Hz

    Length

    66.5mm

    Minimum Frequency Sensed

    48Hz

    Operating Temperature Range

    +60°C

    Minimum Operating Temperature

    -20°C

    Number of Poles

    1

    Special Features

    2 LEDs for the Indication of Operational States, Adjustment for Time Delay, Adjustment for Undervoltage Trip Level, Microprocessor Based Relay, Monitors Own Supply & Detects if The Supply Exceeds The Set Under or Over Voltage Trip Levels, True RMS Monitoring

    Terminal Type

    Screw
