Multi Function Phase Control Relays 17.5mm - C-Lynx

3 phase network control relays monitor: the correct sequence of phases L1, L2, L3, the total phase failure - Undervoltage and overvoltage from 2% to 20% of Under Voltage Relay and Asymmetry rate from 5% to 15% of Under Voltage Relay. LEDs are used for fault signalling, if a fault persists for longer than the threshold crossing delay configured by the operator, the output relay opens and the LED R is extinguished.

"Control of 3 phase networks: phase sequence, phase failure, imbalance (asymmetry), over and under voltage
Range includes mono-function product and multi function product
Multi-voltage from 3 x 208 to 3 x 480 V
True RMS measurement
LED status indication"

Select all	Attribute	Value
	Brand	Crouzet
	Monitoring Application	Phase, Voltage
	Electrical Phase	3
	Contact Configuration	SPDT
	Voltage Sensing Range	183 → 528V ac
	Voltage Sensitivity	Overvoltage, Undervoltage
	Mounting Type	DIN Rail
	Phase Sensitivity	Phase Failure, Phase Imbalance, Phase Sequence
	Time Delay	0.1 → 10s
	Series	MWUA
	Dimensions	69 x 17.5 x 92.6mm
	Maximum Operating Temperature	+50°C
	Width	17.5mm
	Minimum Operating Temperature	-20°C
	Operating Temperature Range	+50°C
	Height	92.6mm
	Length	69mm
	Minimum Voltage Sensed	183V ac
	Maximum Voltage Sensed	528V ac

	Select all
	Brand Crouzet
	Monitoring Application Phase, Voltage
	Electrical Phase 3
	Contact Configuration SPDT
	Voltage Sensing Range 183 → 528V ac
	Voltage Sensitivity Overvoltage, Undervoltage
	Mounting Type DIN Rail
	Phase Sensitivity Phase Failure, Phase Imbalance, Phase Sequence
	Time Delay 0.1 → 10s
	Series MWUA
	Dimensions 69 x 17.5 x 92.6mm
	Maximum Operating Temperature +50°C
	Width 17.5mm
	Minimum Operating Temperature -20°C
	Operating Temperature Range +50°C
	Height 92.6mm
	Length 69mm
	Minimum Voltage Sensed 183V ac
	Maximum Voltage Sensed 528V ac

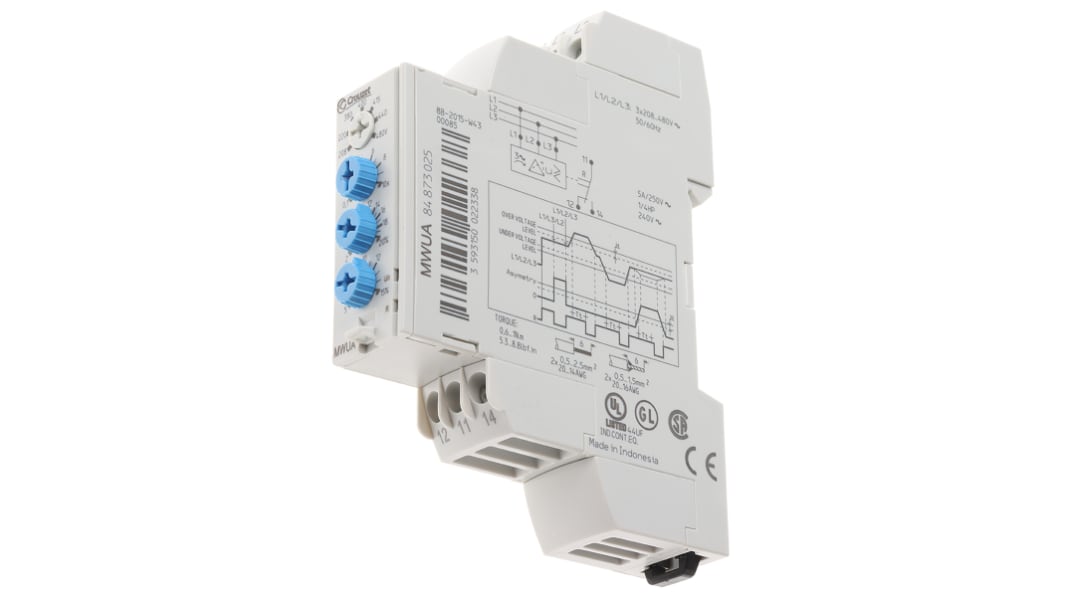

Crouzet Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 183 → 528V ac, DIN Rail
