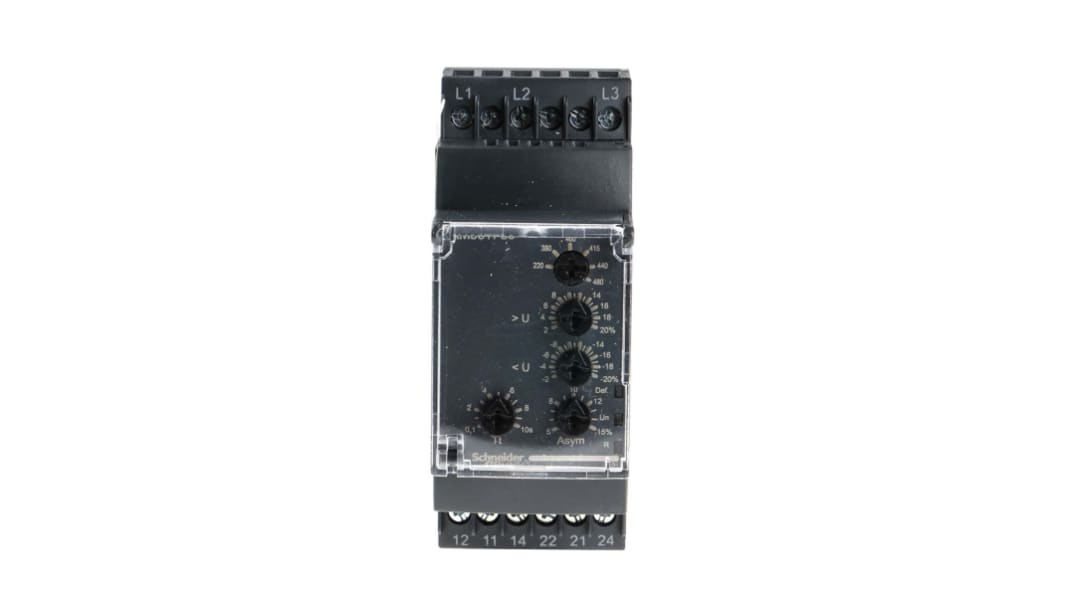

Schneider Electric Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 220 → 480V ac, DIN Rail
- RS stock no.:
- 146-480
- Mfr. Part No.:
- RM35TF30
- Manufacturer:
- Schneider Electric

View all Monitoring Relays
1 In stock in South Africa for delivery next working day in national main centres. (Delivery T&C's apply)
Price (Excl VAT) Each
R 4,288.92
(exc. VAT)
R 4,932.26
(inc. VAT)
units | Per unit |
1 + | R 4,288.92 |
- RS stock no.:
- 146-480
- Mfr. Part No.:
- RM35TF30
- Manufacturer:
- Schneider Electric
- COO (Country of Origin):
- FR
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
RM35 TF multi-function three-phase network control relays
Schneider Electric RM35 TF measurement and control relays for 3 phase supplies, monitor correct sequences of phases L1, L2 and L3. It also monitors total loss of one or more phases, asymmetry, and over and undervoltage with independent adjustments.
Checks its own power supply
Clear hinged front cover
Potentiometer selects voltages between phases
LED display of output status
DIN Rail mounting
Clear hinged front cover
Potentiometer selects voltages between phases
LED display of output status
DIN Rail mounting
Standards
NF EN 60255-6 and IEC 60255-6
Approvals
UL, CSA, GL, C-Tick, GOST
Schneider Electric Monitoring Relay, 5A Switching Current, 2 Outputs - Zelio Control Series - RM35TF30
Keep an eagel eye on your three-phase power supply with this monitoring relay from Schneider Electric. The multifunctional device stakes out circuits for overvoltage, undervoltage, phase failure and phase sequence, so quickly breaks your electrical input in dangerous conditions. This minimises the risk of fires and damage to equipment. Troubleshooting's a breeze, thanks to the unit's automatic shutdown and quick fault identification features. It comes housed in a self-extinguishing plastic casing, so you can rest assured it won't contribute to the spread of a fire.
Features & Benefits
IP30-rated housing is protected against tools and wires larger than 2.5mm
35mm width for quick installation on a standard DIN rail
Built-in LED offers instant visual control status indication
Mechanical durability of up to 30 million cycles for a reliable and extended service life
35mm width for quick installation on a standard DIN rail
Built-in LED offers instant visual control status indication
Mechanical durability of up to 30 million cycles for a reliable and extended service life
Applications
Textile industry
Lifts and hoisting equipment
Water management facilities
Warehouses and distribution centres
Lifts and hoisting equipment
Water management facilities
Warehouses and distribution centres
Is this monitoring relay suitable for use in harsh industrial locations?
Thanks to its resistance to shock and vibration, this is a sturdy choice for power monitoring in demanding locations.
Specification
Attribute | Value |
Monitoring Application | Phase, Voltage |
Electrical Phase | 3 |
Voltage Sensing Range | 220 → 480V ac |
Contact Configuration | DPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Mounting Type | DIN Rail |
Phase Sensitivity | Phase Asymmetry, Phase Failure, Phase Sequence |
Time Delay | 0.1 → 10s |
Series | RM35TF |
Better World Product | Yes |
Width | 35mm |
Maximum Operating Temperature | +50°C |
Better World Verification | Green Premium |
Operating Temperature Range | +50°C |
Minimum Voltage Sensed | 220V ac |
Terminal Type | Screw |
Maximum Voltage Sensed | 480V ac |
Dimensions | 72 x 35 x 90mm |
Height | 90mm |
Standards Met | CE, CSA, RoHS Compliant, UL |
Minimum Operating Temperature | -20°C |
Length | 72mm |
