Infineon FF2400RB12IP7PBPSA1 IGBT Module, 2400 A 1200 V, Screw

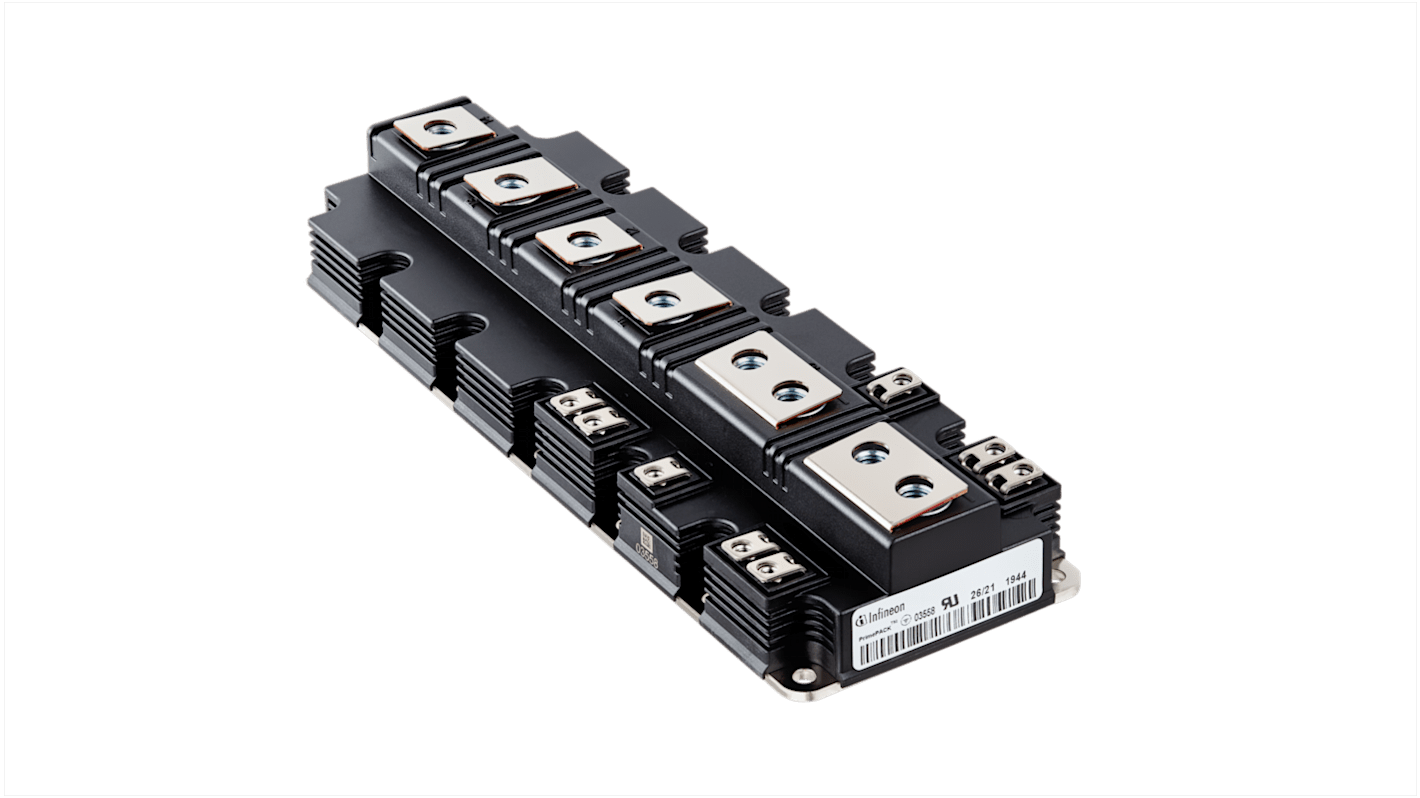

Image representative of range

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

R 17 335,59

(exc. VAT)

R 19 935,93

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 2 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1R 17,335.59
2 +R 16,902.20

*price indicative

Packaging Options:
RS stock no.:
259-2727
Mfr. Part No.:
FF2400RB12IP7PBPSA1
Manufacturer:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current Ic

2400A

Product Type

IGBT Module

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

20mW

Mount Type

Screw

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Collector Emitter Saturation Voltage VceSAT

1.84V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Standards/Approvals

60068, 60749, IEC 60747

Automotive Standard

No

The Infineon Technologies PrimePACK 3+ B-Series modules are designed with Trench/Field stop IGBT5 and emitter controlled 5 diodes. These modules feature extended operating temperature, high short-circuit capability, and unbeatable robustness. The PrimePACK 3+ modules offer high creepage and clearance distances, high power and thermal cycling capability, and high power density. These modules are ideal for use in high power converters, motor drives, solar equipment, UPS systems, traction drives, and wind turbines.

Extended operating temperature

High short-circuit capability

Unbeatable robustness

Package with CTI>403
