RS PRO UL3266 Series Blue 0.33 mm² Hook Up Wire, 22 AWG, 17, 100 m, Polyethylene

View all Hook Up Wire
Bulk discount available

Subtotal (1 reel of 100 metres)*

R 582,76

(exc. VAT)

R 670,17

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 73 unit(s) shipping from 09 March 2026
  • Plus 7 unit(s) shipping from 11 May 2026
  • Plus 120 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 - 24R 582.76R 5.828
25 - 49R 568.19R 5.682
50 +R 551.14R 5.511

*price indicative

RS stock no.:
872-5296
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Hook Up Wire

Cross Sectional Area

0.33 mm²

Jacket Colour

Blue

American Wire Gauge

22AWG

Core Strands

17

Cable Length

100m

Voltage

300 V

Outside Diameter

1.58 mm

Maximum Operating Temperature

125°C

Conductor Material

Tinned Copper

Jacket Material

Polyethylene

Sub Type

Automotive Primary Wire

Minimum Operating Temperature

0°C

Standards/Approvals

UL 758, UL 1581

Cable Type

Stranded

Fire Behaviour

Flame Retardant

Series

UL3266

COO (Country of Origin):
CN

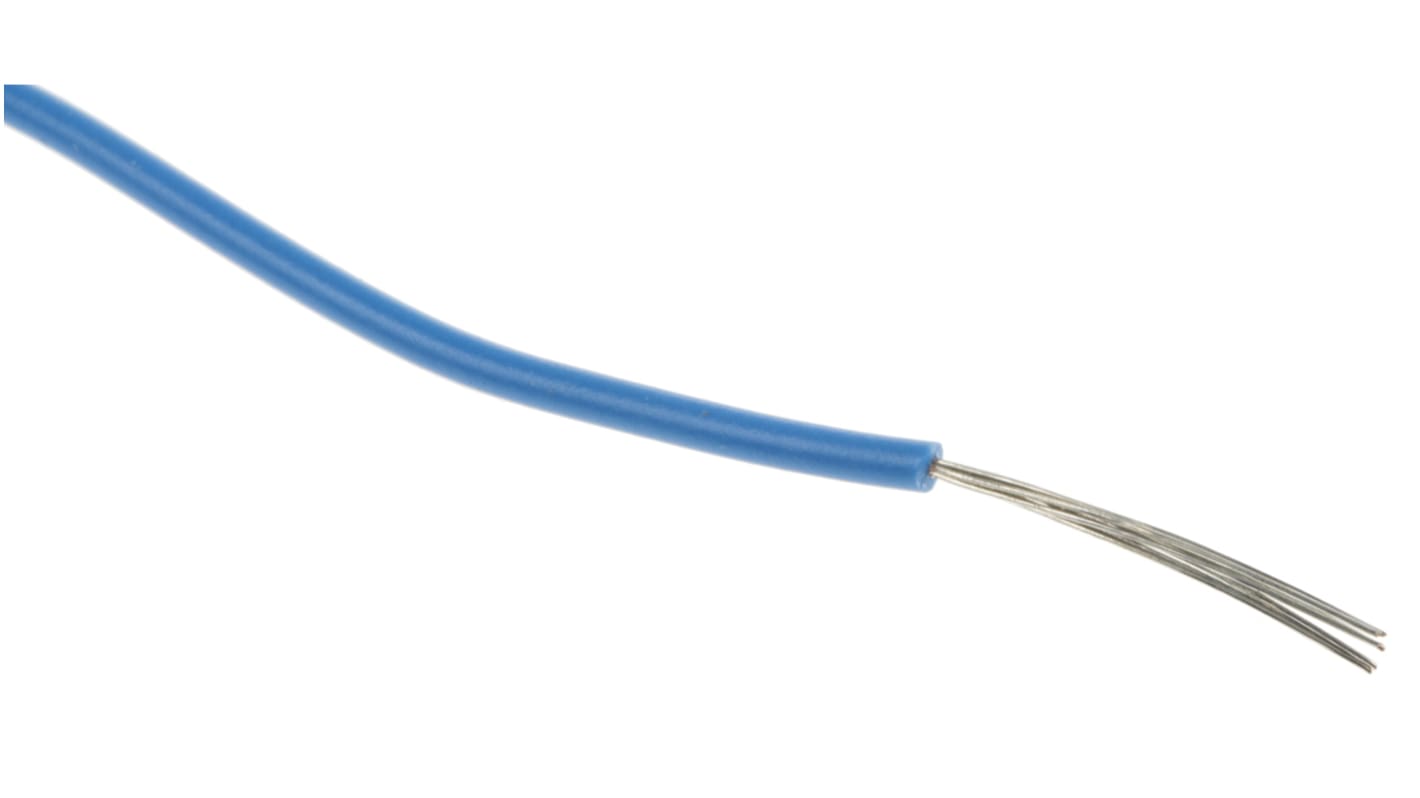

RS PRO Blue, 0.33 mm² Hook Up Wire, 100 m


Need internal wiring for an electronic device? Turn to this hook-up wire from RS PRO. The wire's conductors are made of tinned copper, so they offer excellent conductivity to give you reliable electrical transmission. Tinned copper also resists corrosion, meaning your wire will last for longer.

The wire comes fitted with cross-linked polythene (XPLE) insulation, which is known for its great thermal insulation properties. This means that the cable is safe for use at high temperatures of up to +125°C. It also has a VW-1 flammability certification, so it's designated as a fire-resistant, general-use cable.

This product meets the Underwriters' Laboratories UL 1581 and UL 758 standards for safety and efficacy. It's also Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits


  • Hookup wire type

  • Wire size of 22 American Wire Gauge (AWG)

  • Cross-sectional area of 0.33 mm²

  • Insulation wall thickness of 0.4 mm

  • Length of 100 m

  • 17 core strands of 0.16 mm

  • Outer diameter of 1.58 mm

  • Blue sheath colour

  • Maximum operating temperature of +125°C

  • Minimum operating temperature of 0°C

  • Cross-linked polythene (XPLE) insulation material

  • Tinned copper conductor material

  • Voltage rating of 300 V

  • UL3266 wire style

  • Restriction of Hazardous Substances (RoHS) compliant

  • Underwriters' Laboratories UL 1581 and UL 758 compliant
