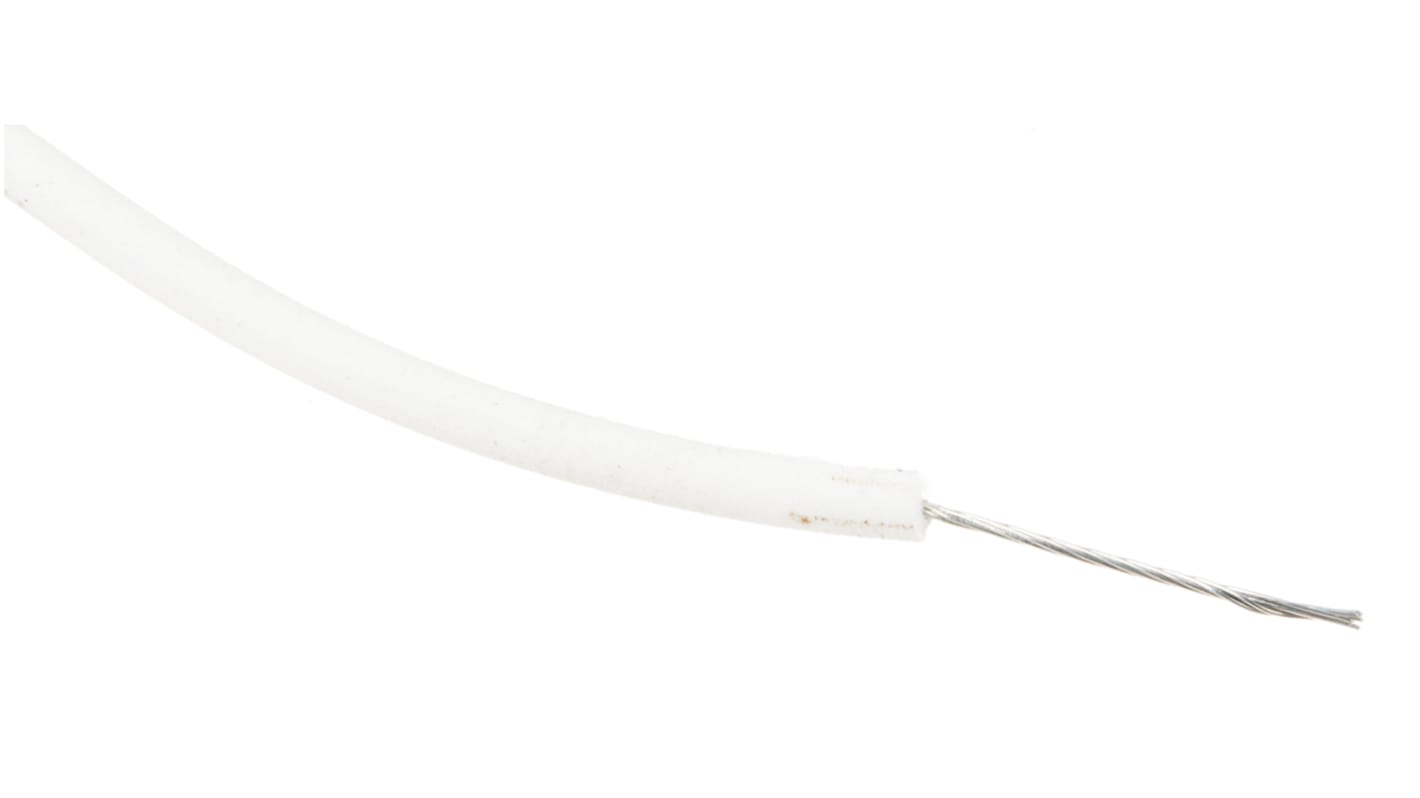

RS PRO UL3321 Series White 0.33 mm² Hook Up Wire, 22 AWG, 17, 100 m, Polyethylene
- RS stock no.:
- 872-4404
- Distrelec Article No.:
- 304-03-599
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 units)*
R 623,06
(exc. VAT)
R 716,52
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 24 | R 623.06 | R 6.231 |
| 25 - 49 | R 607.48 | R 6.075 |
| 50 + | R 589.26 | R 5.893 |
*price indicative
- RS stock no.:
- 872-4404
- Distrelec Article No.:
- 304-03-599
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.33 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | White | |
| American Wire Gauge | 22AWG | |
| Core Strands | 17 | |
| Cable Length | 100m | |
| Outside Diameter | 2.4 mm | |
| Voltage | 600 V | |
| Maximum Operating Temperature | 150°C | |
| Conductor Material | Tinned Copper | |
| Standards/Approvals | UL 1581, UL 758 | |
| Minimum Operating Temperature | 0°C | |
| Sub Type | Hookup Wire | |
| Cable Type | Stranded | |
| Jacket Material | Polyethylene | |
| Fire Behaviour | Flame Retardant | |
| Series | UL3321 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.33 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour White | ||
American Wire Gauge 22AWG | ||
Core Strands 17 | ||
Cable Length 100m | ||
Outside Diameter 2.4 mm | ||
Voltage 600 V | ||
Maximum Operating Temperature 150°C | ||
Conductor Material Tinned Copper | ||
Standards/Approvals UL 1581, UL 758 | ||
Minimum Operating Temperature 0°C | ||
Sub Type Hookup Wire | ||
Cable Type Stranded | ||
Jacket Material Polyethylene | ||
Fire Behaviour Flame Retardant | ||
Series UL3321 | ||
- COO (Country of Origin):
- CN
UL3321
The UL3321 cable range are designed for internal wiring of electronic and electrical equipment.
600 Volt
28,26,24,22 AWG
Stranded tinned copper conductor
XLPE insulated material - Cross linked polyethylene
Various colours
Flammability tested - VW-1
Rated for use up to 150°C
Applications:
Electronic motor and generator industry
Heating and cooling
Lighting
Switchgear
Appliance applications
Standards
UL758, UL1581
